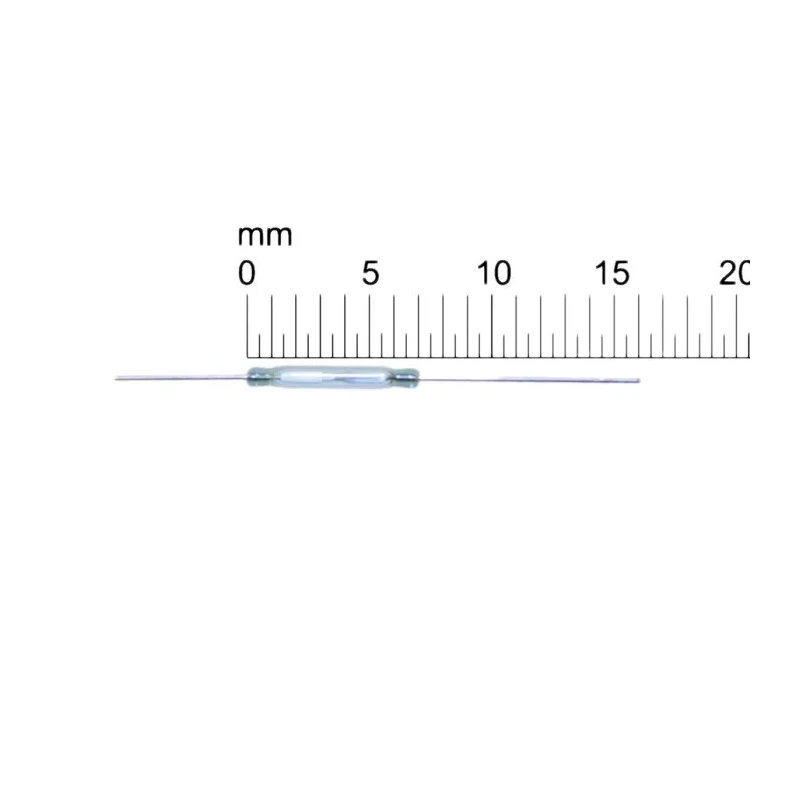

Assemtech SPST PCB Reed Switch 500 mA 170 V RI-70C

Assemtech RI-70C SPST PCB Reed Switch 500 mA 170 V is a high-quality, hermetically sealed reed switch designed for precise and reliable switching in electronic and industrial systems.

The single pole, single throw (SPST) normally open contact design makes it ideal for use with electromagnetic coils, permanent magnets, or combined actuation to control circuits on printed circuit boards.

With a maximum switching current of 500 mA and power rating of 10 W, this reed switch is suitable for low voltage applications up to 170 V. Its ruthenium on gold plated contacts provide low contact resistance of 2 Ω, enhancing signal integrity and longevity.

The device features a wire terminal type and mounting optimized for PCB assembly, enabling easy and secure installation.

It operates effectively in harsh environments with an operating temperature range from -55°C to 125°C. Fast switching is supported by a maximum release time of 0.035 ms and bounce time of 0.15 ms.

The compact dimensions of 1.8 mm in width and 7 mm in length allow integration into space-constrained designs. This reed switch is hermetically sealed in a gas-filled glass envelope for durability, guaranteeing a mechanical life expectancy of one hundred million operations.

Manufactured in the Netherlands, it meets ISO standards, ensuring consistent performance and compliance. Typical applications include use in industrial automation, consumer electronics, telecommunications, and instrumentation.

This reed switch features a single pole, single throw (SPST) contact configuration providing normally open operation. It is designed for maximum switching current of 500 mA and switching power up to 10 W. Maximum switching voltage rating is 170 V ensuring safe operation in low voltage circuits.

Contacts are made with ruthenium on gold plating to reduce contact resistance and improve durability. The switch is PCB mount type with wire terminals for easy integration into circuit boards. Operating temperature ranges from -55°C to 125°C for use in various environmental conditions.

The device has a fast maximum release time of 0.035 ms and operating time including bounce of 0.15 ms for rapid switching. Width and length of the reed switch are 1.8 mm and 7 mm respectively suitable for compact installations.

This switch is hermetically sealed inside a gas-filled glass envelope providing long mechanical life up to 10^8 operations. Compliance with ISO standards and manufactured in the Netherlands assures quality and reliability.
