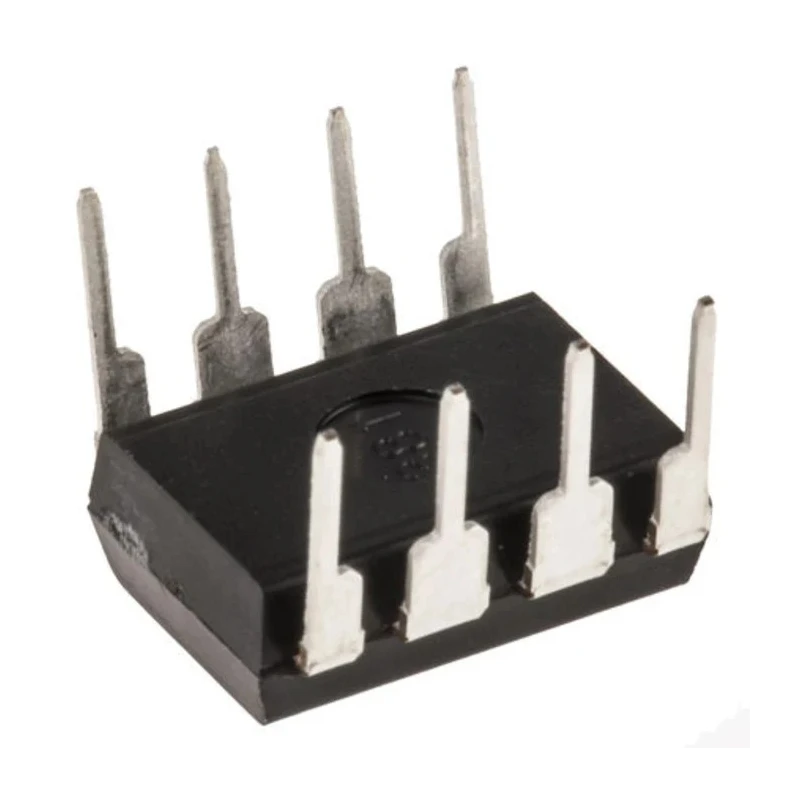

onsemi AC/DC Input Optocoupler Surface Mount, 8-Pin PDIP, 0.65V Max Forward Voltage HCPL3700
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | HCPL3700 |
| Packaging | Tube |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 4.4mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, DIN, UL |
| Maximum Forward Voltage | 0.65V |
| Number of Pins | 8 |
| Input Current Type | AC/DC |
| Typical Rise Time | 45μs |
| Typical Fall Time | 0.5μs |
Key Features
- AC/DC input type provides versatile operation for both alternating and direct currents.
- Surface mount design allows easy mounting on printed circuit boards.
- 8-pin PDIP package ensures compatibility with standard sockets and boards.
- Maximum forward voltage is low at 0.65V for efficient signal transfer.
- Typical rise time of 45 microseconds and fall time of 0.5 microseconds optimizes switching speeds.
- Isolation voltage rated at 2.5 kVrms for high noise immunity and safety.
- Wide operating temperature range from -40°C to +85°C supports harsh environments.
- Packaged in tube format for safe supply and handling.
Product Description
onsemi HCPL3700 AC/DC Input Optocoupler is a surface-mount electronic component housed in an 8-pin PDIP package. Designed to provide reliable isolation and transistor output, this optocoupler is widely used in industrial controls, relay contact monitors, and applications requiring safe electrical isolation between input and output circuits.
The device accepts both AC and DC input currents, featuring a maximum forward voltage of 0.65V that supports efficient operation. With a typical rise time of 45 microseconds and a fall time of 0.5 microseconds, it ensures fast, responsive switching performance suitable for precise control tasks.
With an isolation voltage capability of 2.5 kVrms, the HCPL3700 offers protection against high voltage transients and noise, making it ideal for use in harsh industrial and electrical environments. It operates reliably across a broad temperature span from -40°C to 85°C, maintaining stability and durability.
The 8-pin PDIP packaging allows for easy insertion into through-hole printed circuit boards, facilitating straightforward assembly and maintenance. Supplied in tube packaging, it is ready for efficient mass production and assembly line usage.
This optocoupler is certified under EN, DIN, and UL standards, guaranteeing high-quality manufacturing and compliance with international safety norms. It is not automotive standard rated but excels in general industrial, laboratory, manufacturing, and commercial electrical applications.
Versatile AC/DC input functionality for varied power systems. Surface mount 8-pin PDIP form factor for PCB compatibility. Fast response times with 45μs rise and 0.5μs fall times. High electrical isolation at 2.5 kVrms for safety.
Wide operating temperature range for harsh environments. Low maximum forward voltage of 0.65V for efficient triggering. Logic level output for direct integration with control circuits. Compliance with EN, DIN, UL standards ensuring quality.
Ideal for industrial controls and relay contact monitoring. Packaged in tubes for manufacturing efficiency.
Choose the onsemi HCPL3700 optocoupler for dependable performance in electronics requiring secure isolation and signal transfer. Explore more products in our Electronics Components > Optocoupler category at EnvMart for your industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 0.65V, which supports efficient signal transfer.
It has an isolation voltage rating of 2.5 kVrms, providing high noise immunity and safety for electrical isolation.
The typical rise time is 45 microseconds and the fall time is 0.5 microseconds, ensuring fast switching performance.
This optocoupler accepts both AC and DC input currents, making it versatile for various applications.
It operates reliably within a temperature range of -40°C to 85°C, suitable for harsh environments.
This model has one channel, designed for single-channel applications.
It is packaged in a tube format, which facilitates safe supply and handling during assembly.
This optocoupler features a surface mount design, allowing for easy mounting on printed circuit boards.
It is certified under EN, DIN, and UL standards, ensuring compliance with international safety norms.
The maximum input current for this optocoupler is 4.4mA, suitable for various control applications.
The package type is 8-pin PDIP, ensuring compatibility with standard sockets and boards.
It is commonly used in industrial controls, relay contact monitors, and applications requiring safe electrical isolation.
