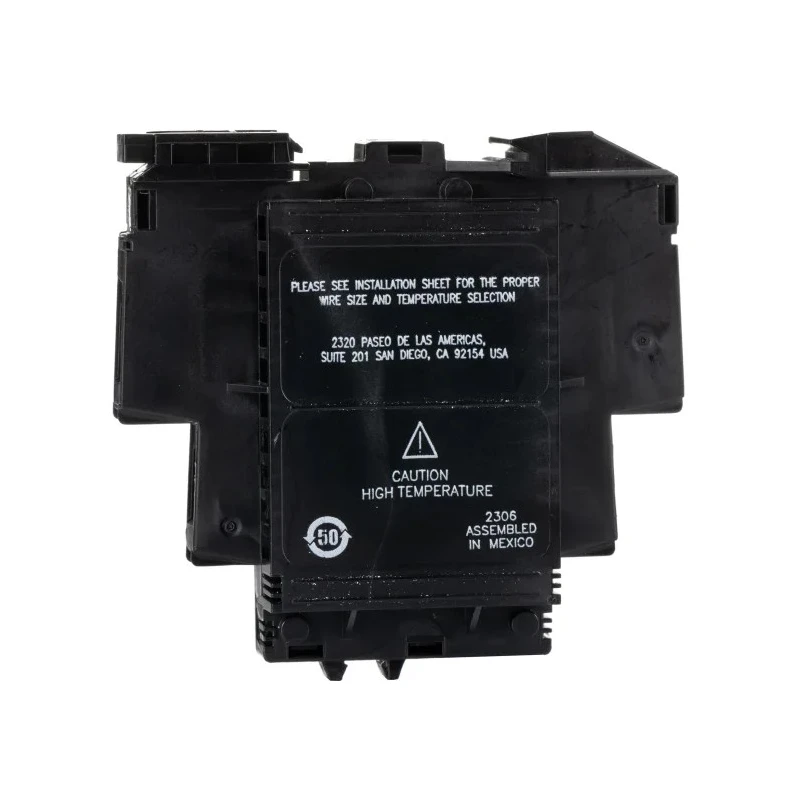

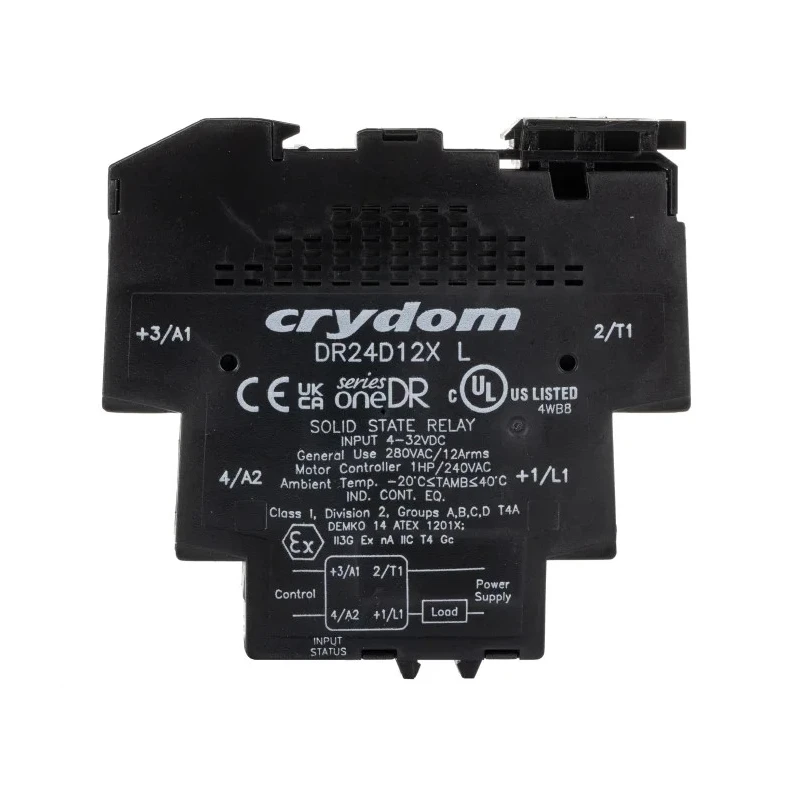

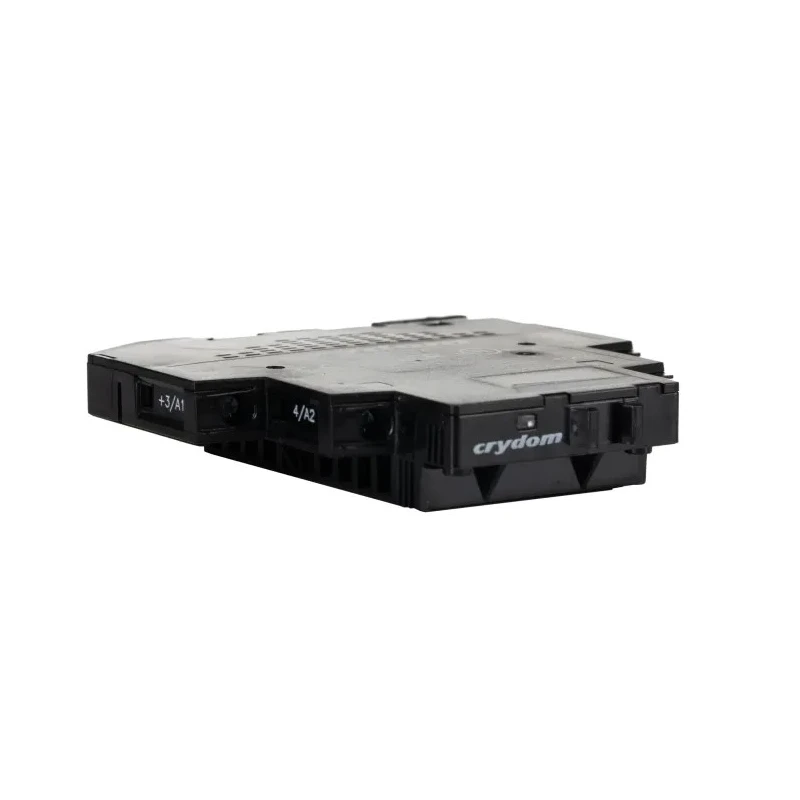

Crydom DR Series Solid State Relay Panel Mount 12 A DC Load, 280 V AC Load, 4-32 V DC Control DR24D12X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 83.7mm |
| Length | 87.6mm |
| Model | DR24D12X |
| Mount Type | Panel |
| Output type | Triac |
| Series | DR |
| Maximum Operating Temperature | 80°C |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Maximum Load Current | 12A dc |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mA |
Key Features
- Capable of handling a maximum load current of 12 amps DC.
- Supports load voltages up to 280 volts AC for diverse circuit requirements.
- Operates with a control voltage range of 4 to 32 volts DC.
- Designed for panel mounting with screw terminal connection for secure installation.
- Operates efficiently within a wide temperature range from -30°C to 80°C.
- Features a Triac output type for stable AC switching.
- Includes a built-in LED indicator for clear operating status monitoring.
- Compact size with dimensions approximately 87.6 mm length and 83.7 mm height.
Product Description
Crydom DR24D12X Solid State Relay is a durable and efficient panel-mounted relay designed for industrial and automation systems requiring fast electrical switching. It supports a maximum DC load current of 12 amps and can handle AC load voltages up to 280 volts, making it versatile for various control circuits.
The relay operates on a control voltage between 4 and 32 volts DC and includes screw-type terminals for reliable wiring connections. The device's Triac output ensures stable and smooth AC power control with minimal noise.
Built to withstand tough operating conditions, it functions across a temperature range from -30°C to 80°C, aligning with demanding industrial environments. Its off-state leakage current is exceptionally low at 0.1 mA, enhancing energy efficiency.
An integrated LED indicator allows users to visually confirm the relay's switching status instantly, simplifying maintenance and monitoring in HVAC, mining, and other electrical applications.
The compact form factor, measuring 87.6 mm in length and 83.7 mm in height, allows for space-efficient installation on standard panels. Designed to comply with RoHS standards, this Crydom Solid State Relay ensures environmental compliance and reliable long-term performance.
Capable of handling a maximum load current of 12 amps DC. Supports load voltages up to 280 volts AC for diverse circuit requirements. Operates with a control voltage range of 4 to 32 volts DC. Designed for panel mounting with screw terminal connection for secure installation.
Operates efficiently within a wide temperature range from -30°C to 80°C. Features a Triac output type for stable AC switching. Includes a built-in LED indicator for clear operating status monitoring. Compact size with dimensions approximately 87.6 mm length and 83.7 mm height.
Low off-state leakage current of 0.1 mA reduces power loss during inactivity.
This solid state relay is ideal for use in industrial control systems, automation lines, HVAC equipment, and mining machinery where fast, reliable switching and durability are essential. It adds to the trusted Crydom DR Series range known for cutting-edge design and steadfast operation.
Explore more Solid State Relays and related automation products on EnvMart for comprehensive electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum load current of 12 amps DC.
It operates with a control voltage range of 4 to 32 volts DC.
It supports load voltages up to 280 volts AC.
It features a Triac output type for stable AC switching.
The compact size measures approximately 87.6 mm in length and 83.7 mm in height.
It operates efficiently within a wide temperature range from -30°C to 80°C.
It is designed with screw-type terminals for secure wiring connections.
Yes, it includes a built-in LED indicator for clear operating status monitoring.
The off-state leakage current is exceptionally low at 0.1 mA, enhancing energy efficiency.
Yes, it is designed to comply with RoHS standards for environmental compliance.
It is suitable for industrial control systems, automation lines, HVAC equipment, and mining machinery.
The Crydom DR24D12X is manufactured in India.
