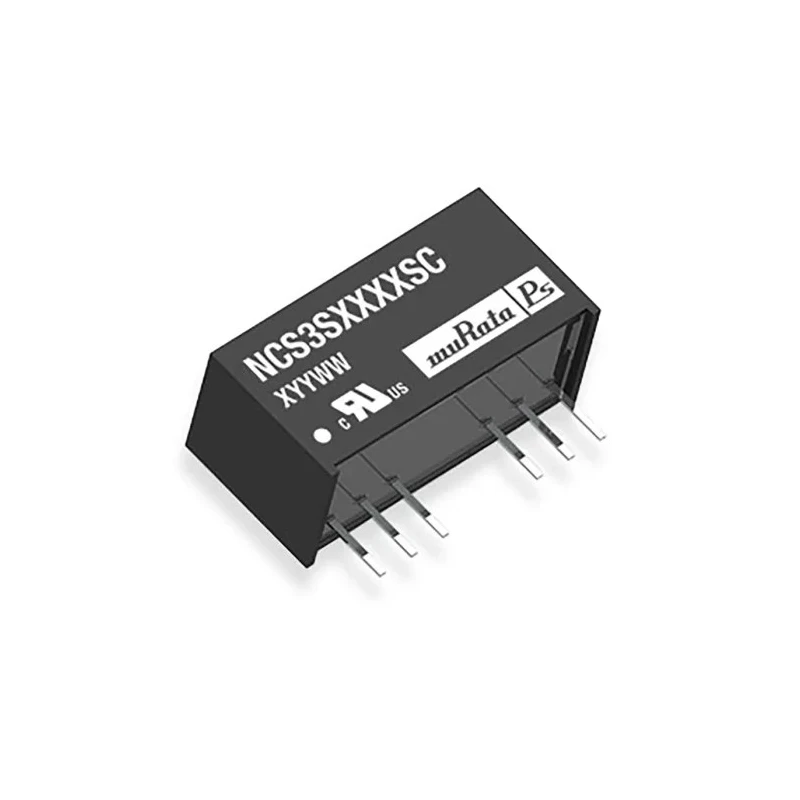

Murata Power Solutions 2W Through Hole SIP DC/DC Converter 3.3V Output, 9-36V Input, Isolation 1.5kV NCS3

Murata Power Solutions NCS3 DC/DC Converter is a highly reliable and efficient power supply solution designed for industrial and commercial applications. This single output DC/DC converter provides a regulated 3.3V DC output from a wide input voltage range of 9V to 36V DC. The module comes in a through-hole SIP package, facilitating easy board mounting with standard pinouts.

Its encapsulated design ensures superior thermal performance and robustness, making it suitable for demanding conditions including telecommunications, battery-powered devices, process control, and distributed power systems. With an isolation voltage rating of 1.5kV DC, the converter offers excellent noise immunity and electrical safety.

The NCS3 series boasts a maximum output power of 2W, with an efficiency rate of 77%, helping reduce energy loss and heat generation. It operates reliably across a broad temperature range from -40°C to 85°C with appropriate derating, suitable for industrial environments.

Additional features include continuous short circuit protection and low ripple and noise of 55mV peak-to-peak, ensuring clean and stable output voltage for sensitive circuits. The compact size with length 21.95mm, width 9.45mm, and depth 11.25mm supports space-constrained applications.

Typical use cases include telecommunication equipment, industrial instrumentation, battery-powered systems, and embedded systems requiring isolated, regulated power supplies. Wide input voltage range from 9V to 36V supporting flexible deployment.

3.3V single output voltage for regulated power delivery. Through-hole SIP package with standard pinouts for easy PCB integration. Isolation voltage of 1.5kV DC provides safety and noise immunity. Efficiency of 77% optimizes power consumption and thermal management.

Operating temperature from -40°C to 85°C suitable for harsh environments. Low ripple and noise level of 55mV peak-to-peak for sensitive electronics. Continuous short circuit protection for enhanced durability. Compact form factor with dimensions length 21.95mm, width 9.45mm, depth 11.25mm.

High reliability with MTBF of over 1.3 million hours. Explore the wide range of high-quality DC/DC Converters by Murata Power Solutions at EnvMart for your industrial, telecom, laboratory, or embedded power needs.
