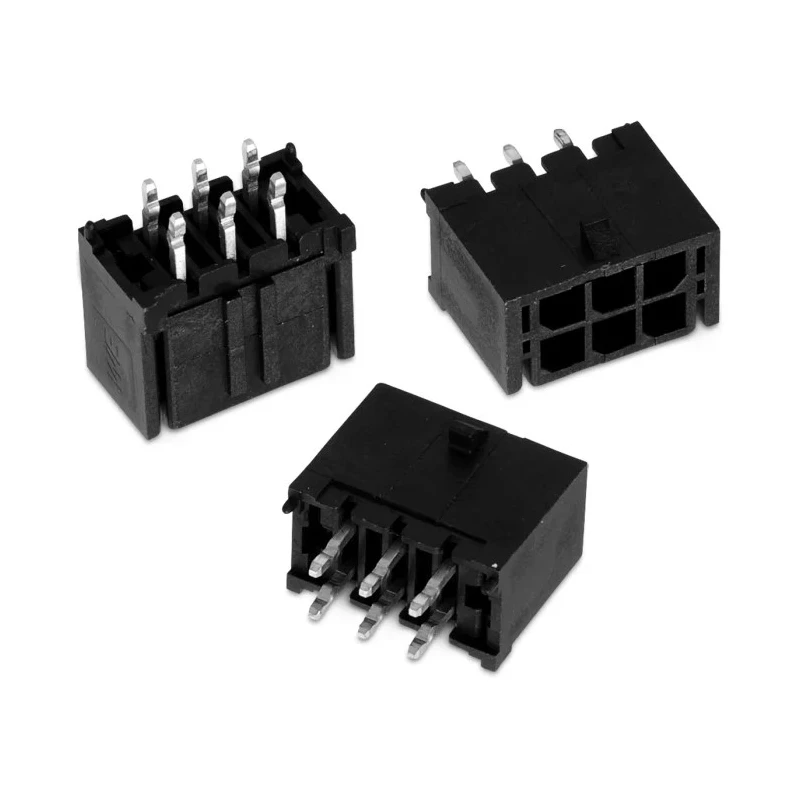

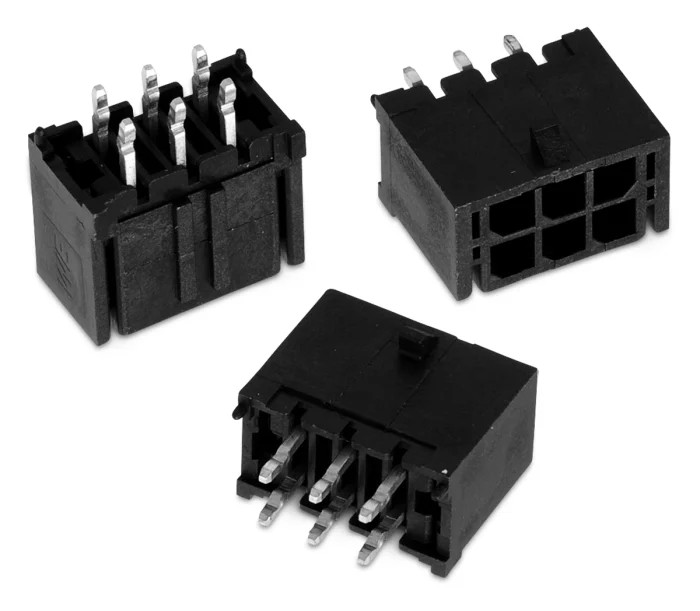

Wurth Elektronik WR- Series Straight Through Hole Shrouded PCB Header, 12 Contacts, 3 mm Pitch, 2 Row, Through Hole MPC3

Wurth Elektronik MPC3 Series Straight Through Hole Shrouded PCB Header MPC3 model is a high-performance connector designed for electronic components requiring reliable wire-to-board connections. This dual row, 12-contact male header features a robust Liquid Crystal Polymer (LCP) housing with UL94-V0 black flame retardant rating, suitable for industrial and commercial PCB assemblies.

The 3 mm pitch between contacts provides optimized density for compact circuit designs, while the shrouded design enhances mechanical protection and polarization ensuring proper mating. The copper alloy stamped contacts are plated with tin to resist corrosion and provide excellent solderability, tailored for through-hole mounting techniques.

Designed to operate efficiently with 5A current and up to 250V, the header supports a wide temperature range from -40°C to 105°C, making it suitable for industrial, manufacturing, telecommunications, and instrumentation applications. The 3.2 mm tail pin length ensures reliable solder joints on the PCB.

These connectors are commonly applied in electronic assemblies that require dependable electrical performance and mechanical support in environments exposed to thermal stress and vibration. The WR-MPC3 series connectors conform to no specific approvals but are engineered to meet standard industrial expectations.

This header features a shrouded design providing protection and reliable connection. Constructed with Liquid Crystal Polymer housing ensuring durability and UL94-V0 black rating. Tin plated copper alloy contacts guarantee excellent conductivity and solder termination.

The pitch of 3 mm and 2 rows optimizes PCB connector density and layout. Rated for 5A current at 250V voltage for efficient electrical performance. Offers a minimum operating temperature of -40°C and maximum of 105°C for broad environmental use.

Tail pin length is 3.2 mm to facilitate through-hole soldering. Mount type is through-hole allowing sturdy mechanical and electrical joint on PCB.

For designers and engineers seeking high-reliability PCB connectors, this MPC3 series from Wurth Elektronik is a suitable option. Explore EnvMart categories for further electronic components and PCB Headers to complement your electronic design projects.
