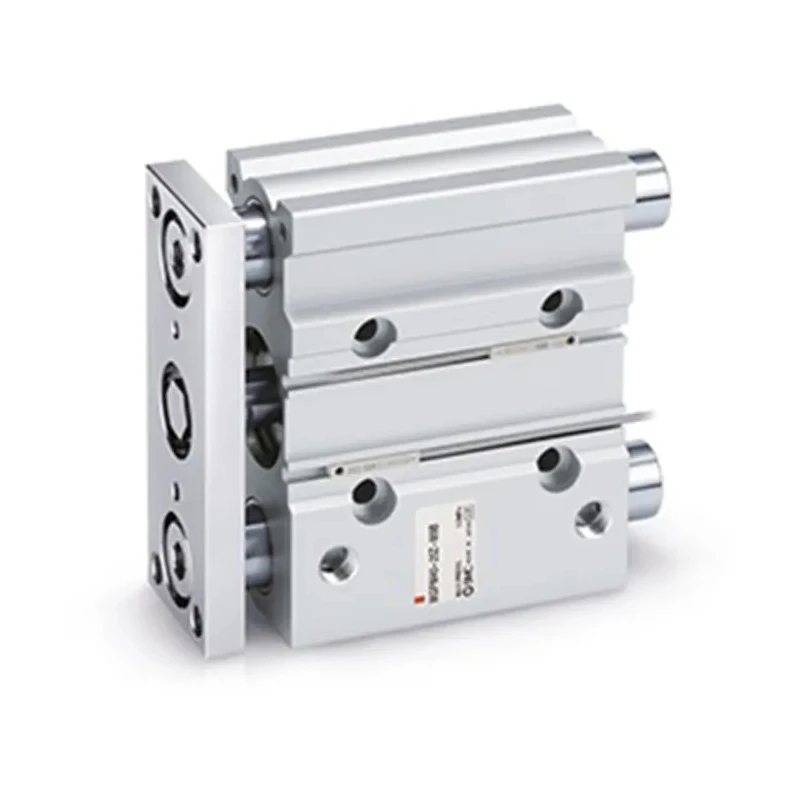

SMC Pneumatic Guided Cylinder 16mm Bore Aluminium Alloy Body Double Acting 1 Mpa Maximum Operating Pressure MGPL16-75Z

SMC MGPL16-75Z pneumatic guided cylinder, featuring a 16mm bore and 75mm stroke length, is a compact solution providing guided linear motion essential for automation and mechanical applications. The aluminium alloy body ensures reduced weight and easy installation into confined spaces. This double acting cylinder uses a ball bushing guide that enhances lateral load capacity for precise and stable operation under varying loads.

The integrated rubber bumpers on both ends minimize impact forces, reducing noise and mechanical wear during end-of-stroke positions. Designed to operate at a maximum pressure of 1 Mpa, this cylinder offers reliable pneumatic supply robustness and supports rapid cycling speeds up to 500 mm/s, suitable for demanding industrial environments.

Its piston rod thread size of M5 x 0.8 simplifies mounting accessories and integration in automated lines. The device functions effectively within temperature limits from -10°C to 60°C, making it suitable for a wide range of manufacturing, assembly line automation, pick-and-place systems, and light clamping mechanical fixtures.

Weighing approximately 670 grams, the cylinder balances lightweight design and structural integrity, facilitating precise payload and motion control calculations. Its compact form factor suits applications requiring guided stability and controlled lateral motion, including use in electronics production and pneumatic manifolds for automated testing.

The aluminium body reduces mass and eases installation. The ball bushing guide increases lateral load capacity and stability. Rubber bumpers on both ends cushion stroke impacts and reduce noise. Supports maximum operating pressure of 1 Mpa for robust pneumatic supply.

Enables piston speeds up to 500 mm/s for rapid cycling operations. The M5 x 0.8 piston rod thread size simplifies accessory mounting. Operates reliably between -10°C and 60°C ambient temperatures. Compact design weighs 670 grams for easy integration and motion control.

This SMC MGPL16-75Z Pneumatic Guided Cylinder is ideal for applications in industrial automation, pneumatic feeding and aligning mechanisms, light-duty clamping in fixtures, and automated test rig operation. EnvMart offers this reliable cylinder for professional integration in pneumatic and mechanical systems requiring guided linear motion and durability.
