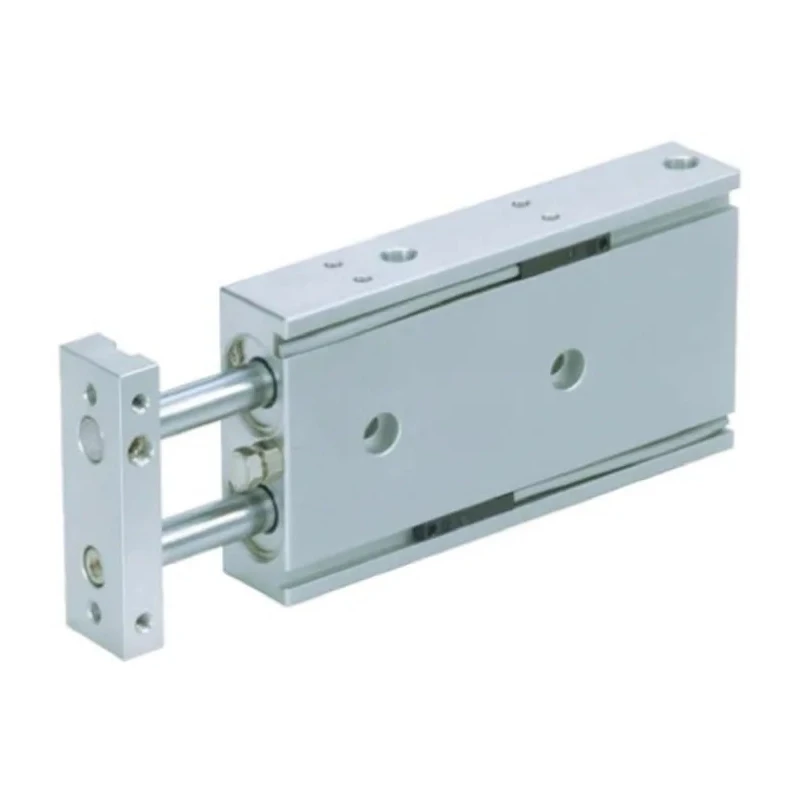

SMC Pneumatic Guided Cylinder 15mm Bore CXS Series Double Acting Surface Mount 0.7 MPa 100mm Stroke CXSL15-100

SMC CXSL15-100 Pneumatic Guided Cylinder is a high-quality component engineered for industrial automation, mechanical, and fluid power applications. This pneumatic guided cylinder features a 15mm bore diameter and offers precise, double acting operation with a stroke length of 100mm. The cylinder is surface mounted, facilitating easy integration in various configurations.

Manufactured with an aluminum alloy body, this cylinder ensures lightweight durability and corrosion resistance. It is designed for a maximum operating pressure of 0.7 MPa and supports a piston speed up to 800 mm/s, ensuring rapid and reliable actuation in demanding industrial environments.

The unit includes rubber cushioning to absorb impact, enhancing operational smoothness and longevity. Its ball bearing guide type and double rod design provide excellent non-rotational accuracy that is essential in 'pick-and-place' applications and other precise mechanical movements. The M3 piston rod thread size further adds convenience for mounting and customization.

Operating temperature ranges from -10°C to 60°C, allowing versatility across various industrial, manufacturing, and pneumatic systems. Compact and lightweight with overall dimensions of 179mm length, 58mm width, and 20mm height, with a gross weight of 530 grams, this cylinder offers a combination of performance and space efficiency.

Features a surface mount type suitable for various industrial installations. Constructed from aluminum alloy body material for lightweight and durable performance. Operates efficiently up to a maximum pressure of 0.7 MPa.

Equipped with rubber cushioning and ball bearing guides for smooth operation. Designed for use in environments ranging from -10°C to 60°C. Provides a maximum piston speed of 800 mm/s for fast actuation. Includes double rod type with M3 piston rod thread size.

Compact dimensions with length of 179mm, width of 58mm, height of 20mm, and gross weight of 530g.

This Pneumatic Guided Cylinder is ideal for industrial automation, manufacturing, material handling, and fluid power systems where precise, reliable cylinder actuation is critical. The robust construction and precision features promote longevity and performance in commercial and laboratory pneumatic setups.
