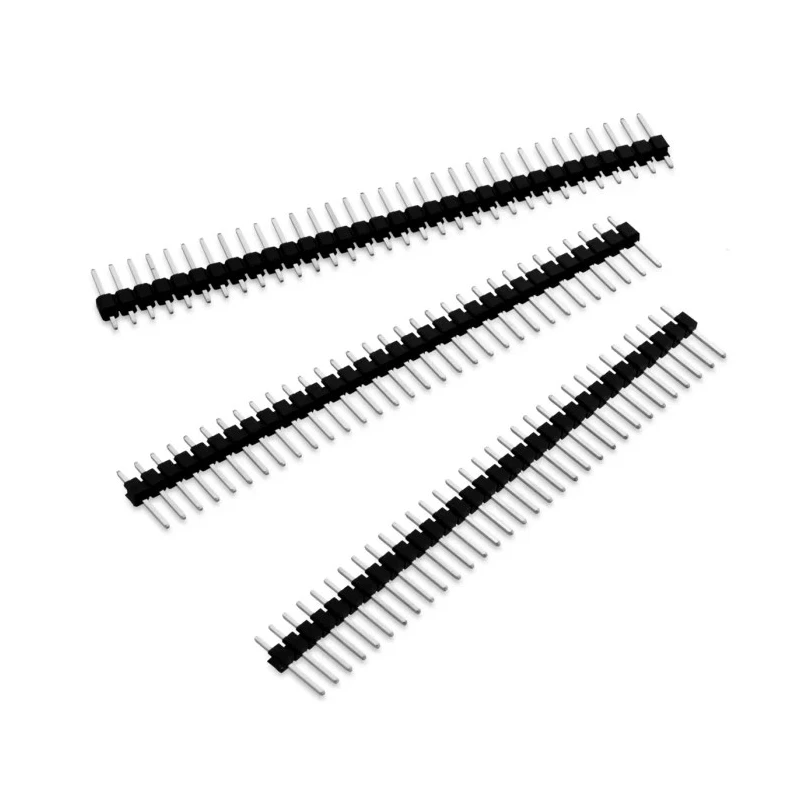

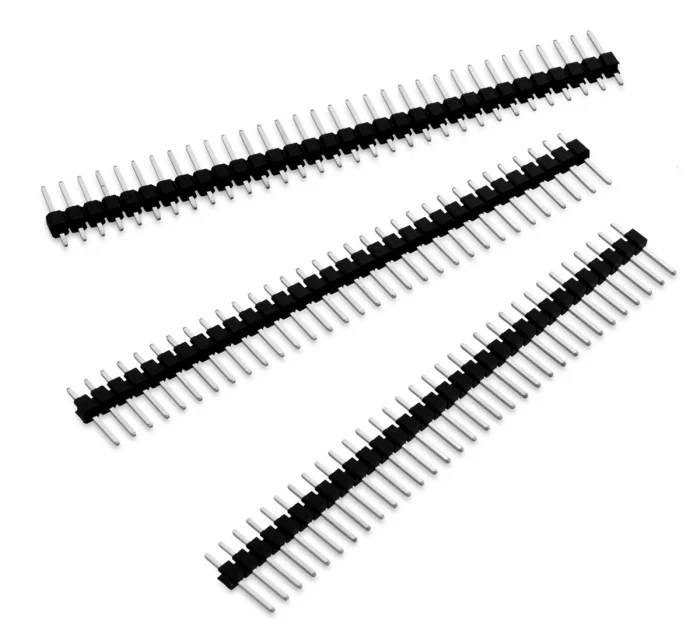

Wurth Elektronik WR-PHD Series Straight Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 61301211121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6mm |
Key Features
- Features 12 gold-plated copper alloy contacts for reliable electrical conductivity.
- Polyamide black UL94-V0 rated insulator enhances durability and safety.
- Supports a current rating of 3A and voltage up to 250V for standard PCB applications.
- Designed for through hole mounting providing stable mechanical connection.
- Operating temperature range from -40°C to 105°C suits harsh environments.
- Male contact gender with 3 mm tail pin length and 6 mm mating pin length.
- Unshrouded, straight orientation enables easy access and soldering.
- Manufactured in Taiwan, Province Of China ensuring quality standards.
Product Description
Wurth Elektronik 61301211121 WR-PHD Series pin header is a high-quality PCB connector featuring 12 straight, through hole contacts spaced at 2.54 mm pitch and arranged in a single row. The unshrouded design allows flexible and easy access for soldering and connection, making it ideal for board-to-board applications in various electronic devices.
This pin header uses gold-plated copper alloy contacts to optimize conductivity and corrosion resistance, coupled with a polyamide black insulator with UL94-V0 rating for flame retardance and mechanical stability. It supports up to 3A current and 250V voltage, suitable for general electronic components requiring dependable signal and power transmission.
The connector's operating temperature range from -40°C to 105°C ensures robust performance under diverse environmental conditions commonly found in industrial, laboratory, and manufacturing electronics. Male contact gender and the specified tail and mating pin lengths (3 mm and 6 mm respectively) provide secure mechanical and electrical engagement.
Assembly and manufacturing efficiency is enhanced by its through hole mount type, widely used in PCB production lines for reliable fixation. Its straight orientation fits various layouts and configurations with ease.
12 gold-plated copper alloy contacts provide excellent conductivity. Polyamide insulator with UL94-V0 rating ensures durability and fire safety. Supports 3A current and 250V voltage for versatile usage. Through hole mount type delivers solid mechanical fixation.
Operating temperature from -40°C to 105°C accommodates harsh environments. Male contact gender with 3 mm tail and 6 mm mating pin lengths. Unshrouded, straight connector design for easy installation. Manufactured in Taiwan, Province Of China ensuring quality compliance.
This pin header is applicable in electronic manufacturing, industrial control systems, communications, and testing devices. It provides reliable board interconnection in demanding applications requiring precision and endurance.
Explore advanced PCB connector solutions and more in the Electronics & Electricals section on EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A, suitable for standard PCB applications.
This model is rated for a maximum voltage of 250V.
The contacts are spaced at a pitch of 2.54 mm.
It operates within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
It is designed for through hole mounting, providing a stable mechanical connection.
The contacts are made of gold-plated copper alloy, and the housing is polyamide with a UL94-V0 rating for flame retardance.
This model features 12 contacts arranged in a single row.
The contacts are male gender, with a tail pin length of 3 mm and a mating pin length of 6 mm.
It has a straight orientation, which allows for easy access and soldering during installation.
It is applicable in electronic manufacturing, industrial control systems, communications, and testing devices.
It is manufactured in Taiwan, Province Of China, ensuring compliance with quality standards.
The termination type for this pin header is solder, suitable for secure connections on PCBs.
