Texas Instruments Low Dropout Linear Voltage Regulator 30V 150mA SOT-23 5-Pin TPS70950DBVT

The Texas Instruments TPS70950DBVT is a low dropout (LDO) linear voltage regulator designed for applications requiring a stable, low-noise output voltage with low quiescent current consumption. It provides a maximum output current of 150mA and operates over a wide input voltage range from 2.7V to 30V. This makes it suitable for a variety of electronic products including portable devices, battery powered systems, and industrial equipment.

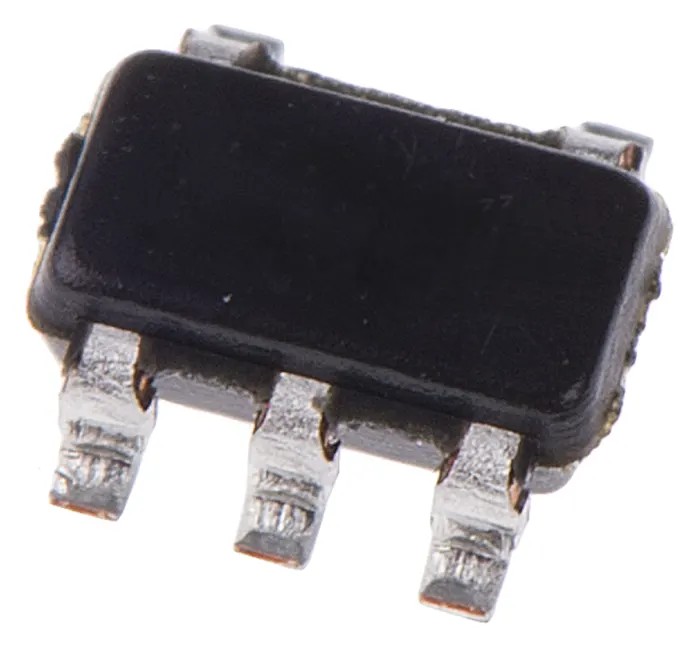

Housed in a compact SOT-23 5-pin surface mount package, the regulator features a length of 3.05mm, width of 1.75mm, and height of 1.3mm, making it highly suitable for PCB assemblies where space and weight are critical. The component can operate reliably up to 125°C, ensuring durable performance in demanding environments.

Key benefits of the TPS70950DBVT include a minimal quiescent operating current of only 1μA, which extends battery life in portable applications. Additionally, it has positive output polarity and delivers excellent line and load regulation with low output noise and high power supply rejection ratio (PSRR). It functions effectively in applications where conventional regulators may fail due to dropout voltage limitations or power inefficiency.

This device is designed primarily for industrial electronics, communications, consumer devices, and instrumentation requiring regulated power with efficient energy management. Applications range from embedded systems, wearable electronics, and handheld instruments to automotive and industrial automation.

The product is supplied on reel packaging ready for machinery insertion, which improves production efficiency in high-volume manufacturing. The TPS70950DBVT complies with standard semiconductor quality and reliability norms and is produced by Texas Instruments, a global leader in power management solutions.

This regulator provides a very low quiescent current of 1μA enabling energy-efficient designs. It operates with an input voltage range from 2.7V to 30V suitable for various electronic applications. The device has a maximum operating temperature of 125°C ensuring reliability under thermal stress.

The small SOT-23 package measures 3.05mm in length, 1.75mm width, and 1.3mm height for space-constrained PCB layouts. Positive polarity output makes it compatible with many standard circuit designs. Designed for surface mount applications ensuring easy integration with automated assembly.

Offers low output noise and high power supply rejection ratio for sensitive circuits. Ideal for industrial and consumer electronics requiring stable power regulation at low current. Explore more Voltage Regulators and Power Management ICs on EnvMart to find compatible electronic components tailored to your design requirements.
