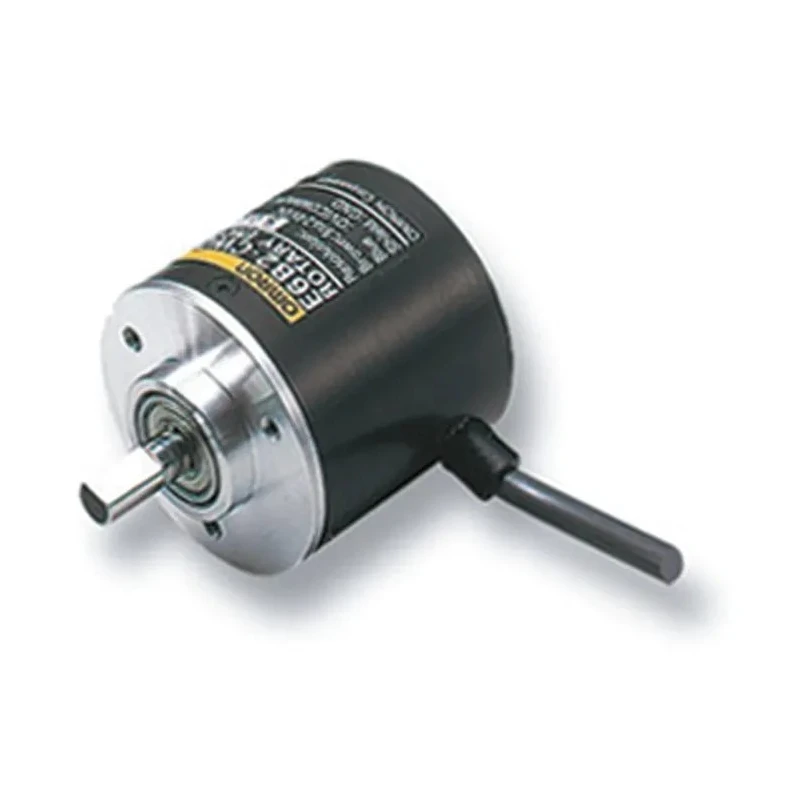

Omron Absolute Encoder 12V DC 360 PPR NPN Open Collector Solid Shaft 10 mm E6F-AB3C-C 360 5M

Omron E6F-AB3C-C 360 5M is a high-precision absolute encoder designed for industrial automation and motion control applications. Featuring a 12V DC supply voltage and 360 pulses per revolution (PPR), it delivers accurate rotational position feedback essential for automation, manufacturing, and electromechanical systems.

This encoder incorporates a solid shaft type with a 10 mm diameter, offering robustness and reliability in demanding environments. It provides an NPN open collector output signal, which ensures compatibility with various industrial controllers and signal processing equipment.

The device is rated IP65, protecting it against dust ingress and water jets, making it suitable for harsh operating conditions. It can function reliably within a temperature range of -10°C to 70°C and supports rotation speeds up to 5000 rpm, which is beneficial for high-speed machinery.

Mounting is achieved using a chassis mount type to facilitate stable installations in complex systems. The cable terminal type simplifies wiring and maintenance, while the BCD interface type supports effective communication with control units.

Omron’s incremental rotary encoders like the E6F series are widely used in industrial machines, robotics, HVAC systems, laboratory instruments, and manufacturing equipment for precise motion detection and positioning tasks.

Offers NPN open collector output signal type for reliable switching. Solid shaft design with 10 mm diameter ensures sturdy mechanical connection. Rated IP65 for protection against dust and water ingress. Capable of operating within temperature range from -10°C to 70°C.

Supports a maximum rotational speed of 5000 rpm. Chassis mount type allows secure installation in automation systems. Equipped with a cable terminal connection for straightforward wiring. Utilizes BCD interface type suitable for industrial control applications.

This Omron absolute encoder enhances monitoring and control accuracy, reducing downtime and improving productivity across various industrial and automation sectors. Explore more Omron Motion Control Sensors on EnvMart for comprehensive automation solutions.
