Omron Monitoring Relay 3 Phase SPDT DIN Rail 240V AC 24V DC K8AK-LS1 100-240VAC

Free Delivery in India | Lowest Global Shipping Charges

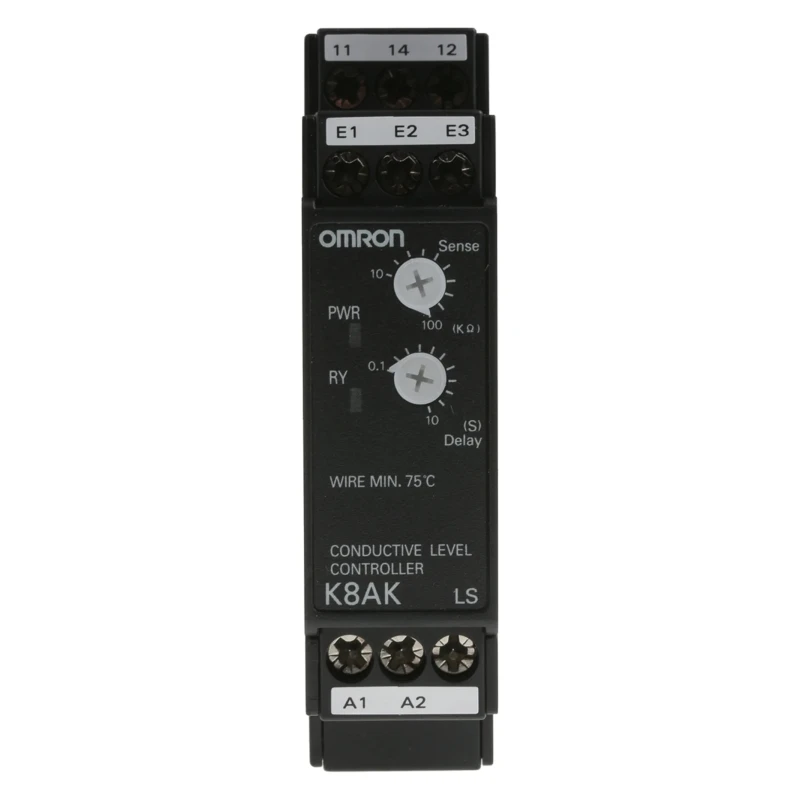

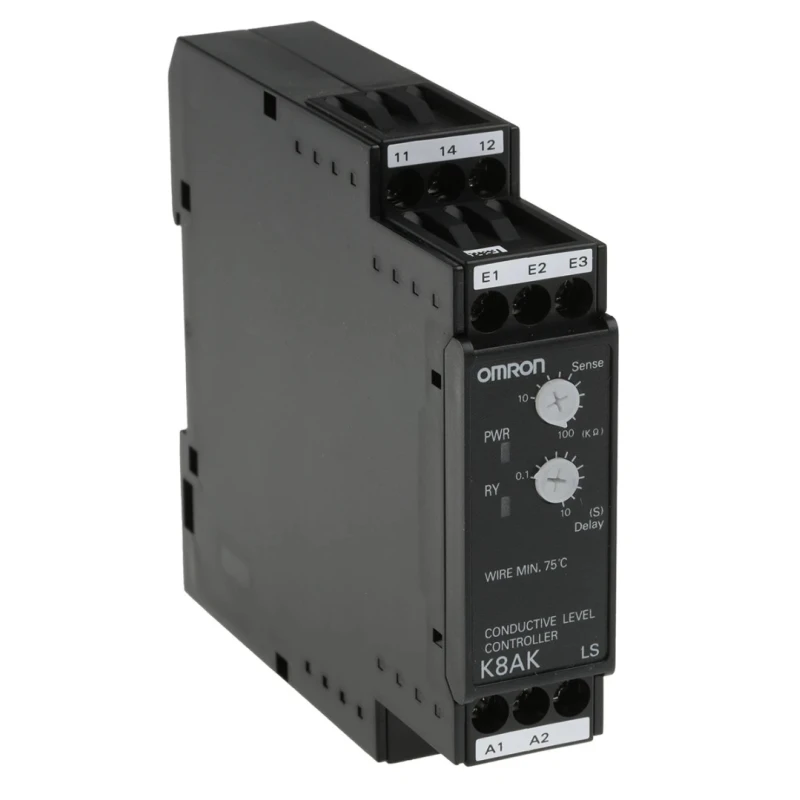

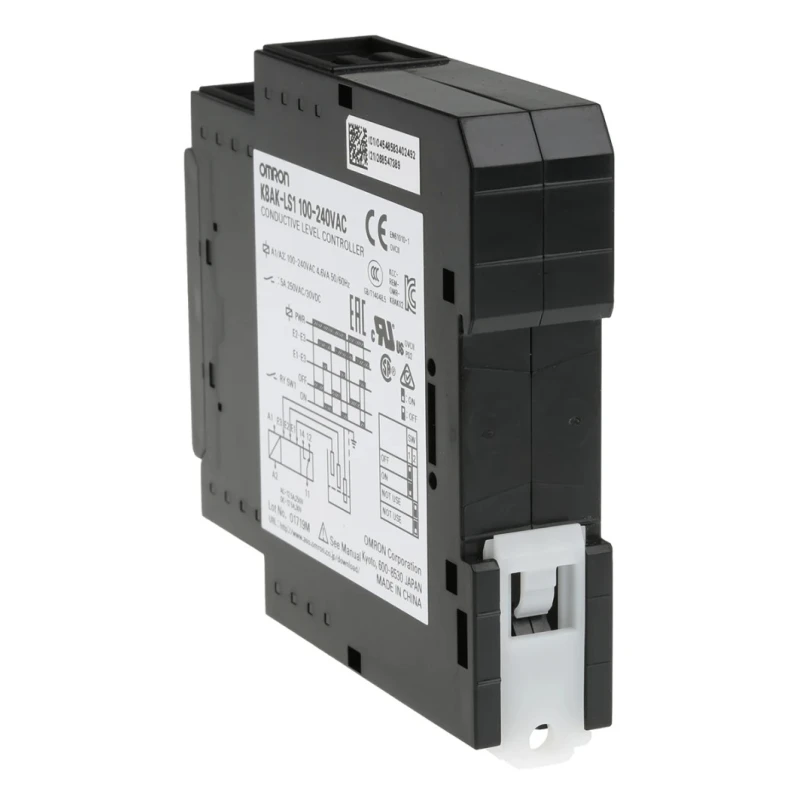

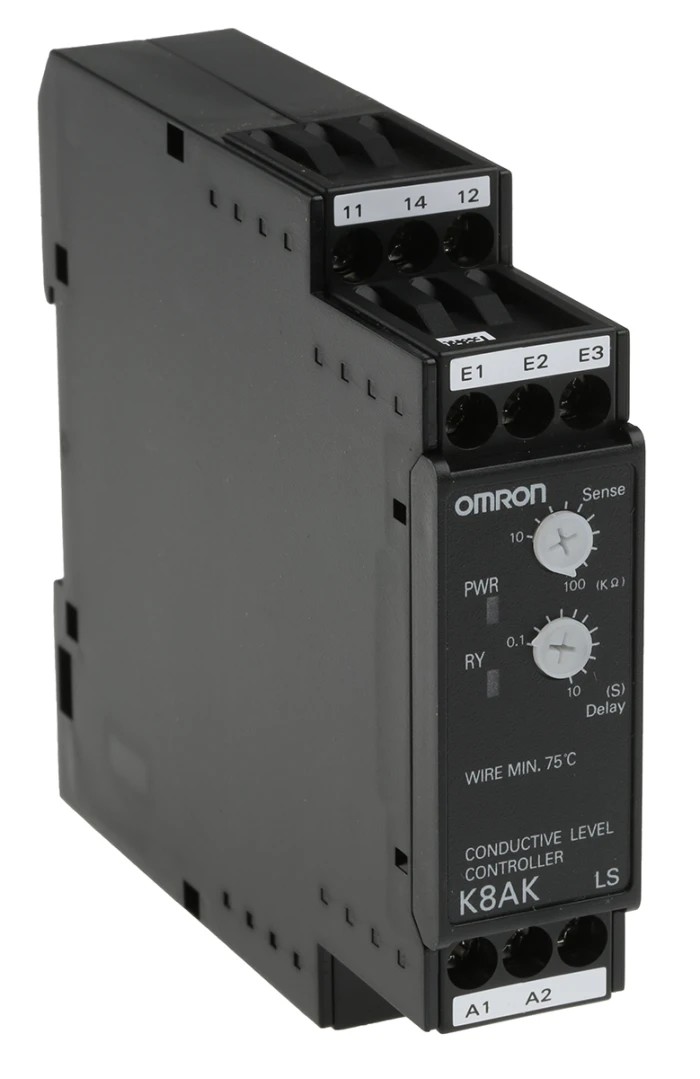

Omron Monitoring Relay 3 Phase SPDT DIN Rail 240V AC 24V DC K8AK-LS1 100-240VAC

Name: Omron Monitoring Relay 3 Phase SPDT DIN Rail 240V AC 24V DC K8AK-LS1 100-240VAC
Brand: Omron
SKU: 133337
Price: 106.31 USD
Availability: InStock



Category Monitoring Relay Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	90mm
Length	100mm
Model	K8AK-LS1 100-240VAC
IP Rating	IP20
Width	22.5mm
Mount Type	DIN Rail
Series	K8AK-LS
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Time Delay	0.1 to 30 s
Minimum Operating Temperature	-20°C
Terminal type	Screw
Electrical Phase	3
Standards/Approvals	CE, CSA, cURus
Switching Voltage	250V ac
Contact Current	5A
Supply DC Voltage	24 V dc
Supply AC Voltage	240V ac
Brodersen Controls Level Relay - DIN Rail Mount, 115 V ac, 24 V ac 2Brand	Brodersen Controls
Omron Level Controller - DIN Rail Mount, 200 → 230 V acBrand	Omron

Key Features

Compact dimensions of 100mm length, 22.5mm width, and 90mm height allow installation in constrained spaces.
Screw terminal type enables quick and reliable electrical connections.
Operating voltage ranges from 240V AC supply and 24V DC supply for control input.
Time delay adjustable between 0.1 and 30 seconds for flexible response timing.
Rated contact current of 5A suitable for control of pumps and other industrial equipment.
IP20 protection rating ensures protection against solid objects over 12 mm and touch-proof safety.
Environmental operating temperature range from -20°C to 60°C supports diverse industrial environments.
Equipped with green and yellow LED indicators for clear status monitoring.

Product Description

The Omron K8AK-LS1 100-240VAC monitoring relay is a precision 3 phase SPDT device designed for effective control and monitoring of liquid levels and electrical parameters in industrial automation settings. Compatible with 240V AC supply voltage and 24V DC control voltage, the relay provides reliable switching performance with a contact current rating of 5A.

Its compact form factor of 100mm length, 22.5mm width, and 90mm depth allows installation in tight control panel spaces while maintaining ease of access via screw terminal connections. The DIN rail mount type facilitates swift and standardized mounting on industrial control racks.

The relay's adjustable time delay from 0.1 to 30 seconds enables customization for different application responsiveness, preventing rapid switching and chattering in relay contacts. Its IP20 protection rating offers touch-proof safety and resistance against intrusion by objects larger than 12mm, ensuring durable operation in industrial environments.

The device is equipped with clear green and yellow LED indicators, providing visual feedback for monitoring relay operational status and fault detection. Suitable for environments with operating temperatures ranging from -20°C to 60°C, it is well-suited for automotive industry control systems, electrical panel automation, telecommunications equipment, and water purification facilities.

Standards compliance including CE, CSA, and cURus certification anchors its quality and safety credentials. As an alternative to floatless switches, this Omron Monitoring Relay offers precision liquid level detection by utilizing three electrodes to sense liquid presence, reducing the need for mechanical components and maintenance. The relay effectively helps maintain liquid volume in tanks by controlling associated pumps or valves.

Compact, space-saving design with DIN rail mounting. Versatile use in industrial and commercial liquid level control applications. Adjustable time delay to optimize switching performance. High safety rating with IP20 touch-proof protection.

Clear LED indicators for operational status visualization. Wide operating temperature range ensures reliable performance. Compliant with international safety and quality standards. Explore more Omron relays and advanced automation components at EnvMart for reliable industrial control solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It operates with a supply voltage of 240V AC and a control input voltage of 24V DC.

The contact current rating is 5A, suitable for controlling pumps and other industrial equipment.

The relay has a length of 100mm, a width of 22.5mm, and a height of 90mm, making it compact for installation in tight spaces.

The time delay can be adjusted between 0.1 and 30 seconds, allowing for flexible response timing.

It is designed for DIN rail mounting, facilitating quick and standardized installation in control panels.

It has an IP20 protection rating, which ensures protection against solid objects larger than 12mm and provides touch-proof safety.

This model operates effectively in environments ranging from -20°C to 60°C.

It features screw terminal connections, enabling quick and reliable electrical connections.

It complies with CE, CSA, and cURus standards, ensuring its quality and safety credentials.

It has a Single Pole Double Throw (SPDT) contact configuration.

It is suitable for liquid level control in industrial automation settings, including automotive, telecommunications, and water purification facilities.

It utilizes three electrodes to sense liquid presence, providing precision liquid level detection without mechanical components.
