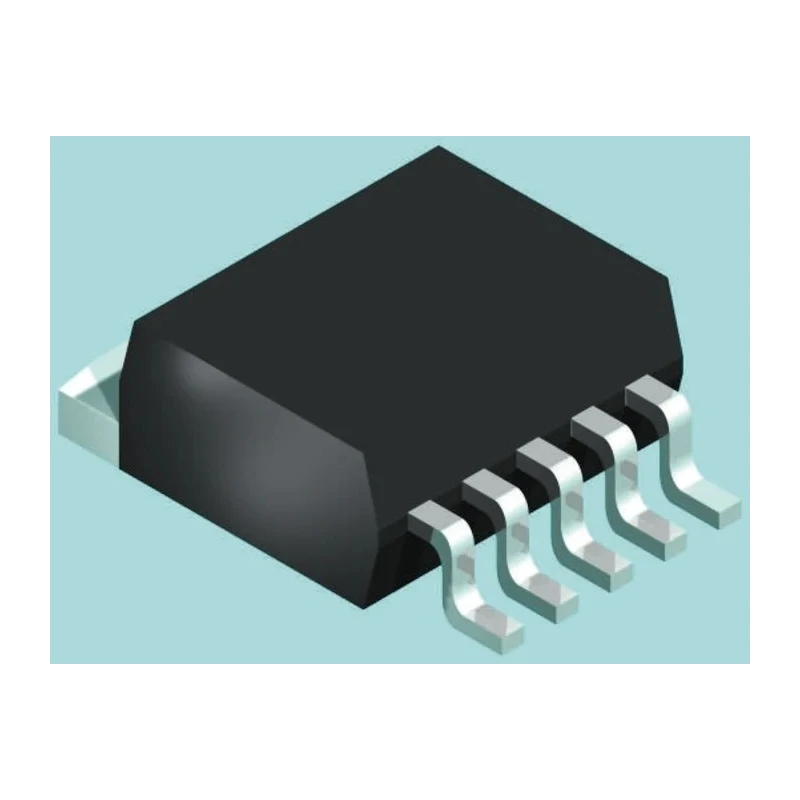

Texas Instruments Low Dropout Linear Voltage Regulator 1A 20V SOT-223 5-Pin TPS73801DCQR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments TPS73801DCQR, Voltage Regulator 20V SOT-223 5-Pin R |
| Brand | Texas Instruments |
| Height | 1.65mm |
| Length | 6.55mm |
| Model | TPS73801DCQR |
| Width | 3.55mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 20V |
| Quiescent Current | 1μA |
| Minimum Input Voltage | 2.2V |
| Pin Count | 5 |
Key Features
- Provides low quiescent current of 1μA for power-efficient operation.
- Supports input voltage range from 2.2V to 20V with positive polarity.
- Compact SOT-223 package with dimensions 6.55mm length, 3.55mm width, and 1.65mm height.
- Designed for applications requiring excellent line regulation and high power supply rejection ratio (PSRR).
- Operating temperature range up to 125°C enabling reliability in demanding environments.
- Suitable for automotive and industrial electronics without automotive standard compliance.
- Ideal for low dropout regulator applications requiring a stable 1A current supply.
Product Description
Texas Instruments TPS73801DCQR is a low dropout (LDO) linear voltage regulator designed for efficient regulation with a low input-output voltage differential. It delivers up to 1A output current while maintaining ultra-low quiescent current of 1μA, making it highly suitable for battery-powered and power-sensitive applications.
Encased in a compact SOT-223 5-pin surface-mount package measuring 6.55mm by 3.55mm by 1.65mm, this voltage regulator features a positive polarity design supporting input voltages from 2.2V up to a maximum of 20V, with an operating temperature of up to 125°C.
This model is part of Texas Instruments' TPS series of LDO voltage regulators which provide excellent line regulation, reduced output noise, and high power supply rejection ratio (PSRR), thereby ensuring stable output even in noisy electrical environments.
The TPS73801DCQR is suited for a variety of industrial and automotive applications where sustained robustness is required, although it does not specifically comply with automotive standards.
It is commonly used in power management circuits for telecommunications, consumer electronics, industrial controls, and other applications demanding stable voltage with high current capacity and low dropout performance.
Extremely low quiescent current of 1μA reduces battery drain in portable devices. Compact surface-mount package allows for space-saving PCB designs. Operates reliably at high temperatures up to 125°C. Wide input voltage range from 2.2V to 20V accommodates diverse power sources.
Positive polarity configuration suitable for various regulated power supply designs. Ensures low output noise and high PSRR for sensitive analog and RF circuits. This Voltage Regulator is an essential component in power-sensitive industrial machines, electronic instruments, automotive electronics, and communication devices.
Explore more power management solutions and components on EnvMart to optimize your designs with high-quality voltage regulation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPS73801DCQR can deliver up to 1A output current.
It supports an input voltage range from 2.2V to 20V.
The quiescent current is extremely low at 1μA, making it suitable for power-sensitive applications.
The SOT-223 package measures 6.55mm in length, 3.55mm in width, and 1.65mm in height.
The maximum operating temperature is 125°C, allowing reliable operation in demanding environments.
This model uses surface mounting as its mount type.
It features a positive polarity configuration, suitable for various regulated power supply designs.
It is suitable for applications in telecommunications, consumer electronics, industrial controls, and automotive electronics.
This model is designed to provide high power supply rejection ratio (PSRR), ensuring stable output even in noisy environments.
The TPS73801DCQR has a pin count of 5.
No, while it is suitable for automotive applications, it does not specifically comply with automotive standards.
It provides low dropout voltage regulation, making it efficient for applications requiring a stable voltage supply.
