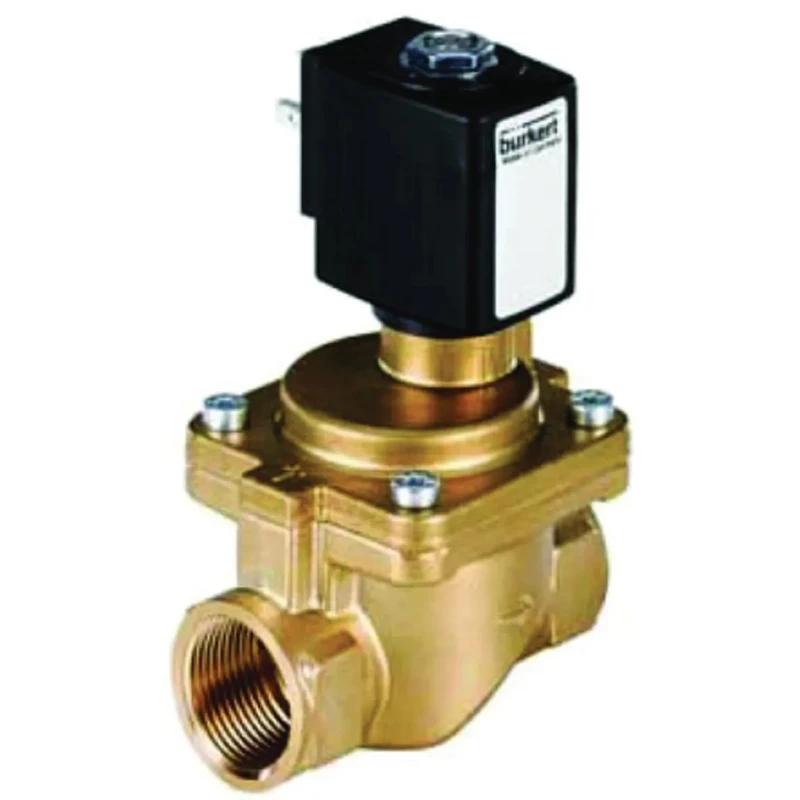

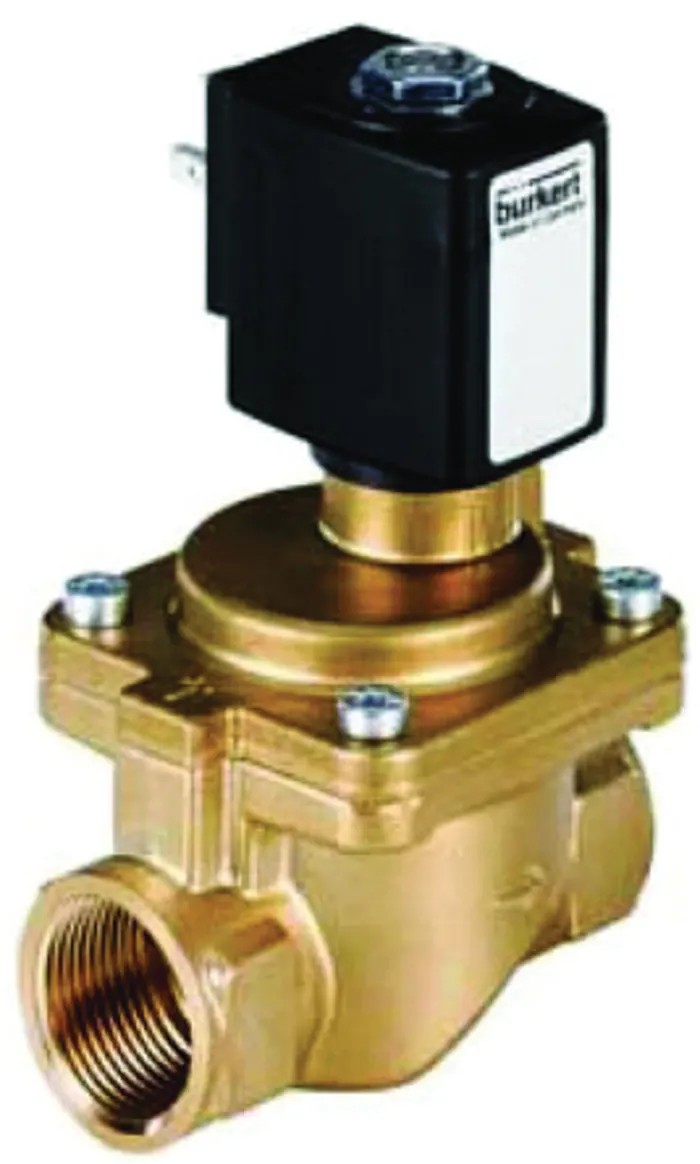

Burkert 2 Port Normally Open Brass Bodied Solenoid Valve 24V DC, 40mm Orifice, Series 6281 EV Standard 221946

Burkert 221946 is a 2 port normally open (NO) solenoid valve designed with a brass body for robust performance in fluid control systems. Operating at 24V DC, this valve features a 40mm orifice diameter and is part of the 6281 EV Standard series, making it suitable for a wide range of industrial applications.

This solenoid valve is servo assisted for smooth operation and includes threaded inlet and outlet connections for easy installation. It is designed to function reliably with neutral fluids including compressed air and water, commonly used in heating, refrigeration, water treatment, vacuum, and compressed air systems.

The valve supports a maximum operating pressure of 16 bar and can withstand temperatures between -10°C and 80°C. It meets stringent industry standards such as W270, DIN EN 175301-803 Form A, KTW, and DIN EN 50930-6. Additionally, it is ATEX certified for safe use in hazardous environments, ensuring compliance and safety in diverse industrial settings.

Notable features include a quiet operation with water hammer free design, compact installation length, and IP65 rating with cable protection for durability against dust and water ingress. The valve has a maximum opening and closing time of 4 seconds, allowing for responsive control.

This valve’s flow factor Kv is 30 m³/h, enabling efficient management of fluid flows in pipelines. It is specifically designed for industrial sectors including manufacturing, water treatment, HVAC, and compressed air systems. Its robust brass body ensures long service life and reliable functionality.

Operates with a 24V DC supply voltage. Two port design with normally open (NO) valve position. Constructed with durable brass body material ensuring longevity. Suitable for compressed air and water applications. Maximum operating pressure of 16 bar and temperature up to 80°C.

Servo assist mechanism for enhanced valve performance. Standards include W270, DIN EN 175301-803 Form A, KTW, and DIN EN 50930-6 approvals. ATEX certified for hazardous area use. Maximum opening and closing time of 4 seconds each.

Flow factor Kv of 30 m³/h allowing efficient flow control. The product is made in Germany, reflecting high manufacturing standards. Browse EnvMart’s Solenoid Valve selection for more industrial fluid control solutions.
