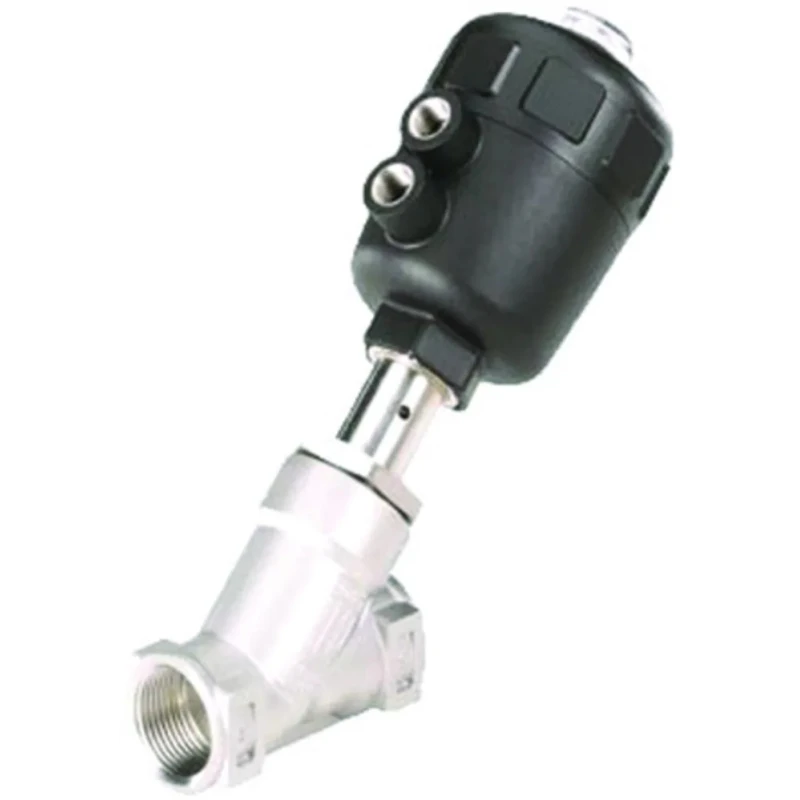

Burkert Pneumatic Actuated Angle Seat Valve 16 bar 1/2 in Stainless Steel Body 178689

Burkert 178689 Pneumatic Actuated Angle Seat Valve features a stainless steel body construction providing superior resistance to corrosion and mechanical stress. This valve is pneumatically operated with a spring return and is suitable for industrial applications requiring precise and reliable flow control. It is ideal for use with neutral gases, air, steam, water, oil, and can also handle aggressive fluids due to its robust material selection.

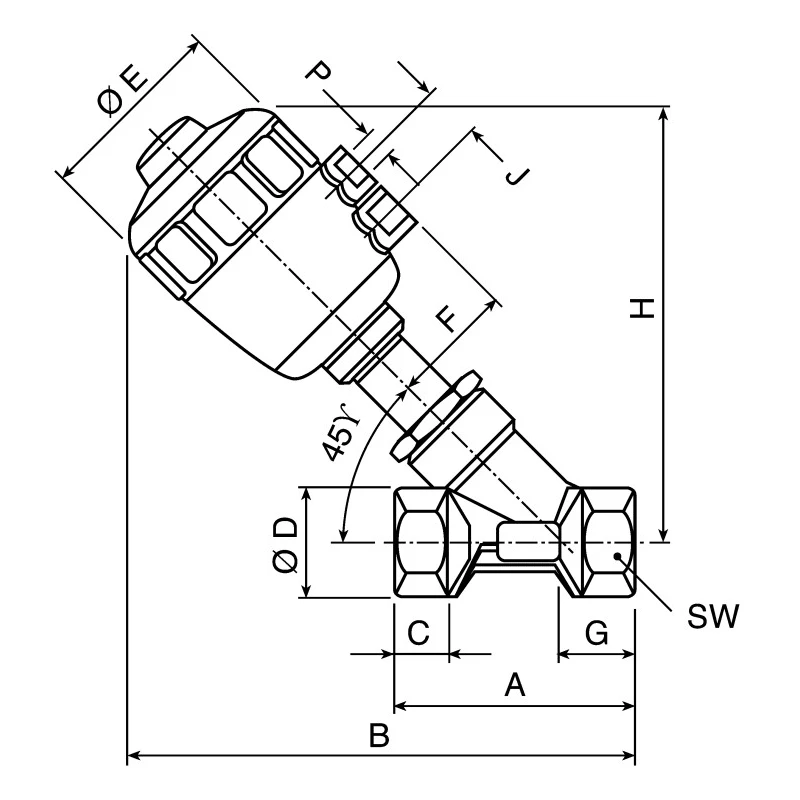

The valve is a 2/2-way angle seat design with threaded inlet and outlet connections sized at 1/2 inch, meeting the G thread standard. It has a maximum operating pressure rating of 16 bar, making it suitable for demanding pneumatic fluid power environments. The valve's default position is normally open (NO), ensuring default flow without actuation.

The actuator casing is made of polyamide while the seal material is PTFE, both contributing to durability and excellent sealing characteristics. The self-adjusting spindle packing glands and wiper seal provide low maintenance and reliable tightness over long operational cycles. Ambient operating temperatures range from - 10°C to +60°C, while media temperatures can reach up to +180°C, accommodating a wide range of industrial fluids.

Compact dimensions allow for installation flexibility while maintaining high flow capacities. These valves are manufactured in Germany, reflecting stringent quality controls and engineering standards. Their robust construction and versatile operating parameters make them suitable for industrial manufacturing, fluid power systems, HVAC, water treatment, and chemical processing applications.

This valve features a stainless steel body for durability and corrosion resistance. Operates with pneumatic actuation and a spring return mechanism. Suitable for use with neutral gases, air, steam, water, oil, and aggressive fluids.

Maximum operating pressure is 16 bar ensuring reliable flow control. Valve is designed in a two-way angle seat configuration with threaded inlet and outlet. Operating temperature ranges from - 10°C to +60°C ambient and media temperatures up to +180°C.

Valve is normally open with self-adjusting spindle packing glands and PTFE seals for secure tightness. Compact design enables high flow rates with efficient performance. Manufactured in Germany adhering to high-quality standards.
