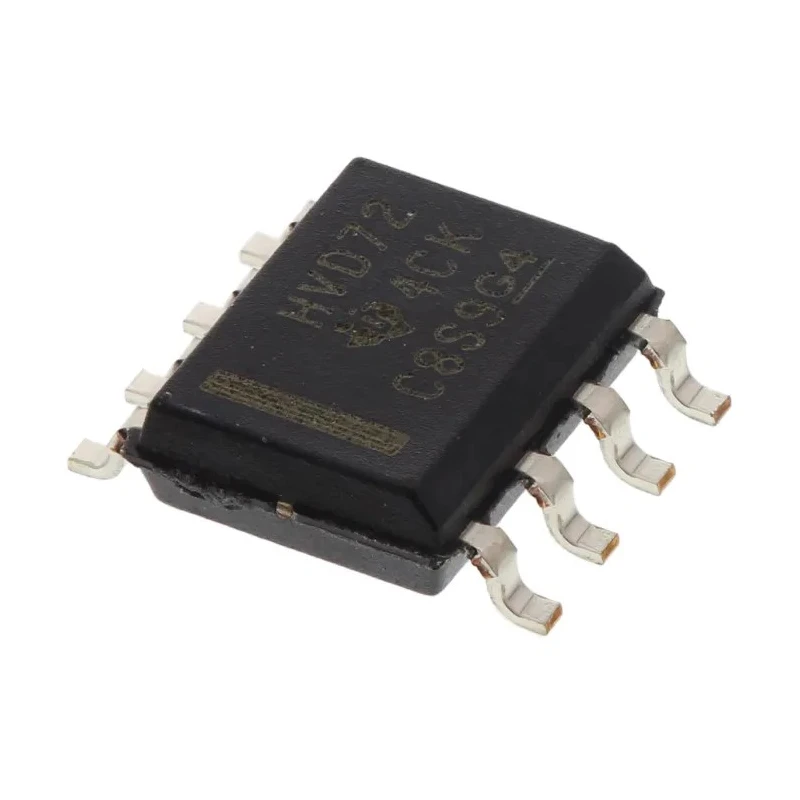

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN65HVD72D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN65HVD72D |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65HVD7 |
| Input Type | Differential |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | SN75 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 100ns |
| Supply Current | 60mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- Operates within supply voltage range of 3 V to 3.6 V.
- Contains a single channel line transceiver IC.
- Supports differential input and output types for reliable signal transmission.
- Surface mount mount type for PCB integration.
- Wide operating temperature range of -40°C to 125°C for harsh environments.
- Maximum propagation delay time at capacitive load is 100 ns.
- Maximum output current of ±8 mA for high-level and low-level outputs.
- Supply current of 60 mA ensures efficient power usage.
Product Description
Texas Instruments SN65HVD72D line transceiver is a high-performance differential, non-inverting line transceiver IC designed for use in electronic and industrial control systems. Packaged in a compact 8-pin SOIC surface mount package, it supports robust signal integrity and high-speed data transfer in RS-485 communication interfaces.
This device operates within a supply voltage range of 3 V to 3.6 V, providing stable performance across a wide temperature range from -40°C to 125°C, suitable for harsh and demanding environments.
With a propagation delay time of only 100 ns at capacitive load, the SN65HVD72D ensures timely signal transmission essential for industrial automation and data communication.
The transceiver provides differential input and output to minimize noise and interference, and supports a maximum output current of ±8 mA, enabling it to drive signals reliably over communication lines.
Its surface mount technology (SMT) compatible 8-pin SOIC package with dimensions 5 mm x 3.98 mm x 1.75 mm eases PCB design and integration. Operates on 3 V to 3.6 V supply voltage. Single channel line transceiver IC. Differential input and output types.
Non-inverting polarity for consistent signal flow. Surface mount 8-pin SOIC package for compact design. Wide operating temperature from -40°C to 125°C. Maximum propagation delay of 100 ns at capacitive load. Maximum output current ±8 mA.
60 mA supply current for efficient operation. Part of SN65HVD7 series RS-485 line drivers and receivers.
This line transceiver is widely used in industrial automation, electronic control systems, data acquisition, and communication interfaces requiring reliable and noise-resistant data transmission.
Explore more semiconductor products and Line Interface ICs at EnvMart to find complementary components and enhance your system's performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 3 V to 3.6 V.
The maximum output current for the SN65HVD72D is ±8 mA.
It has a maximum propagation delay time of 100 ns at capacitive load.
This unit can operate within a temperature range of -40°C to 125°C.
It is packaged in an 8-pin SOIC surface mount package.
This model supports a single channel line transceiver IC.
It supports differential input and output types for reliable signal transmission.
The height of this line transceiver is 1.75 mm.
It has a width of 3.98 mm and a length of 5 mm.
The supply current for this model is 60 mA.
This line transceiver has a non-inverting polarity.
It is widely used in industrial automation, electronic control systems, and communication interfaces requiring reliable data transmission.
