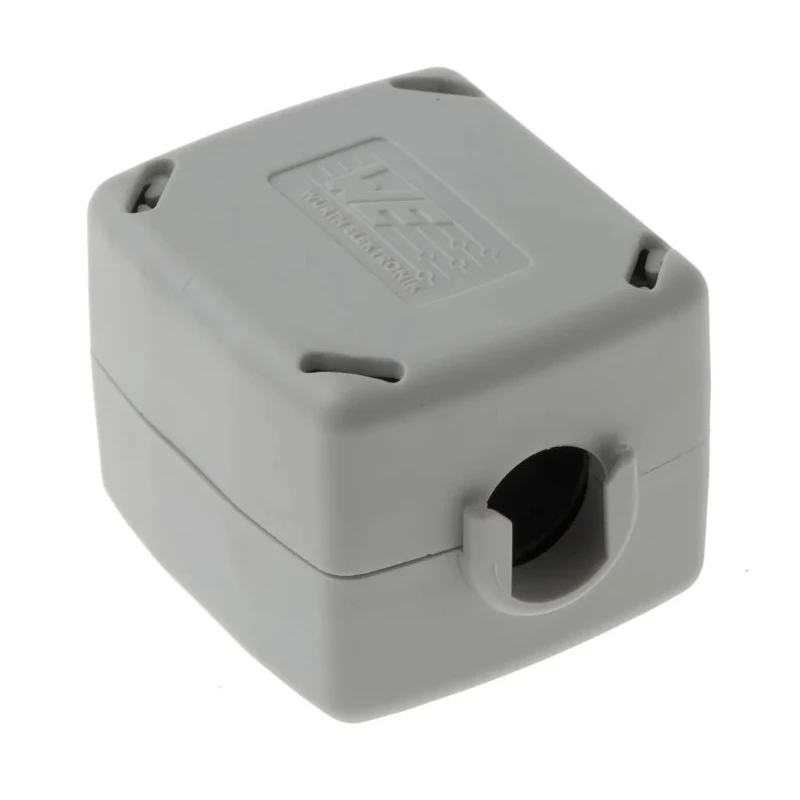

Wurth Elektronik Openable Diameter 13 mm Ferrite Sleeve STAR-TEC General Application 74271221

Wurth Elektronik 74271221 Openable Diameter 13 mm Ferrite Sleeve from the STAR-TEC series is a high-quality EMI suppression component designed for general electronic applications. Featuring a single 13 mm aperture, this split ferrite sleeve offers efficient reduction of electromagnetic interference on data and power cables.

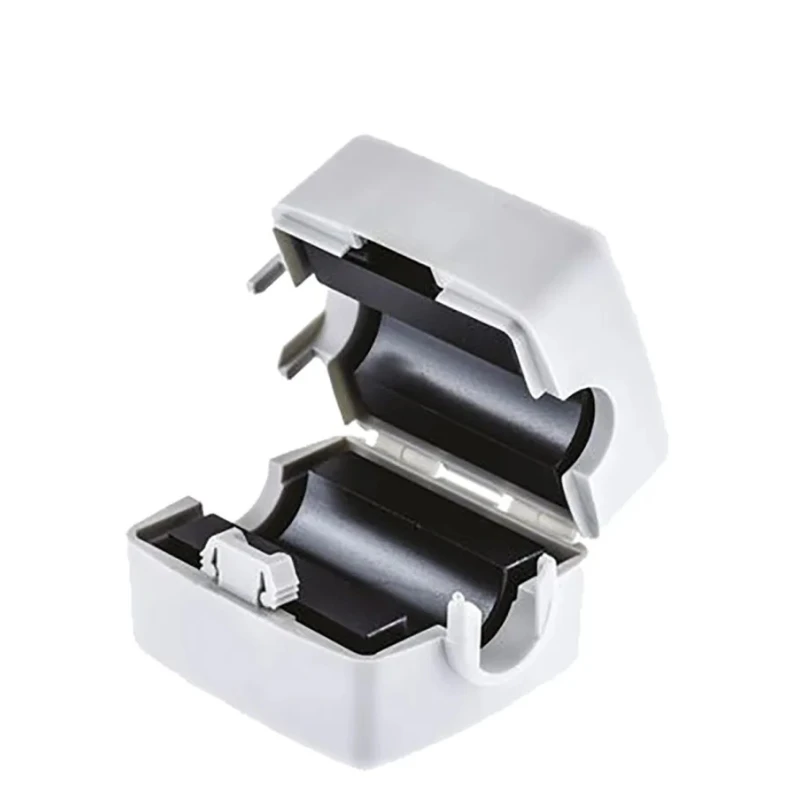

The ferrite sleeve is constructed using 4W620 material to ensure excellent attenuation, with impedance ratings of 158Ω at 25 MHz and 278Ω at 100 MHz. The openable design includes a snap-in lock mechanism that provides cable pinch protection, easy installation, and removal for measurement purposes. A security lock prevents unauthorized removal once installed.

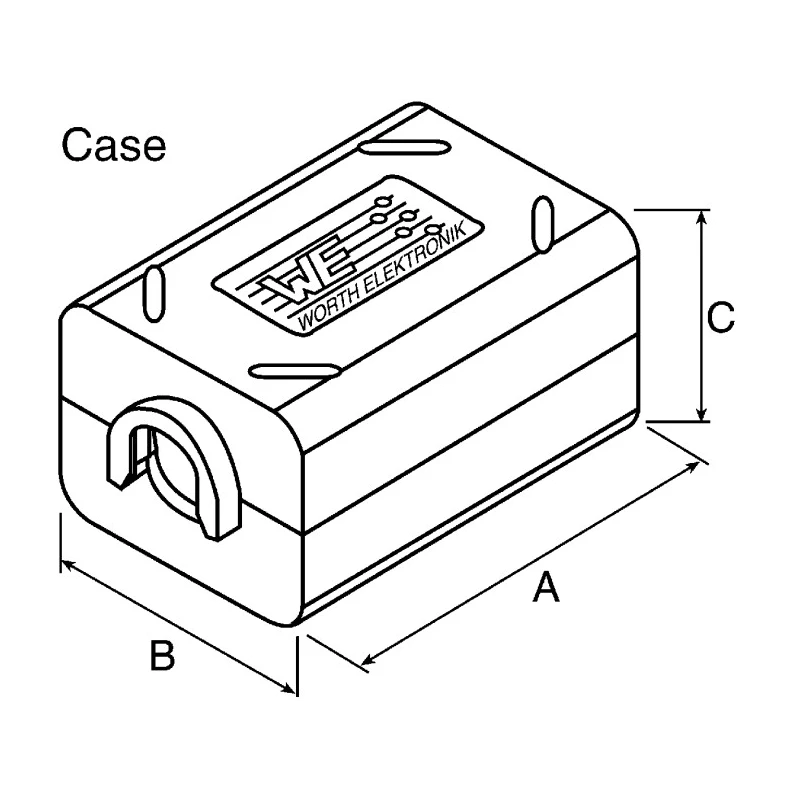

The sleeve's external dimensions are 33.6 mm depth, 37.7 mm width, and 29.5 mm height, housed in a UL94-V0 rated plastic case that guarantees durability and safety. Its split ferrite ring design protects the core halves from breakage and facilitates assembly on cables that are already fitted with connectors. Fixing can be enhanced with glue or cable ties if required.

This ferrite sleeve is suitable for a wide range of industrial, commercial, and electronic use cases, including internal and external computer data and power cables, industrial controllers, office machines, and medical engineering equipment.

The product complies with REACH and RoHS standards, reflecting its environmental and safety compliance. Manufactured in Germany to high-quality standards, the Wurth Elektronik 74271221 ferrite sleeve is a reliable component for EMI management.

Features a 13 mm aperture diameter with a single aperture design. Constructed with 4W620 material ensuring effective electromagnetic interference reduction. Openable design with snap-in lock allows easy installation and measurement.

Dimensions: 33.6 mm depth, 37.7 mm width, and 29.5 mm height for compatibility with various cables. High impedance performance at 25 MHz (158Ω) and 100 MHz (278Ω) frequencies. Plastic housing rated UL94-V0 ensures fire resistance and durability.

Provides cable pinch protection and prevents unauthorized removal through a security lock. Suitable for use in computer data and power cables, industrial controllers, medical engineering, and office machines. Split ferrite ring design protects core halves from breakage and allows assembly on pre-installed cables.

RoHS and REACH compliant, made in Germany ensuring quality and environmental standards. Explore the full range of Ferrite Sleeves and EMI filters in the Electronics Components category at EnvMart for trusted industrial and electronic component solutions.
