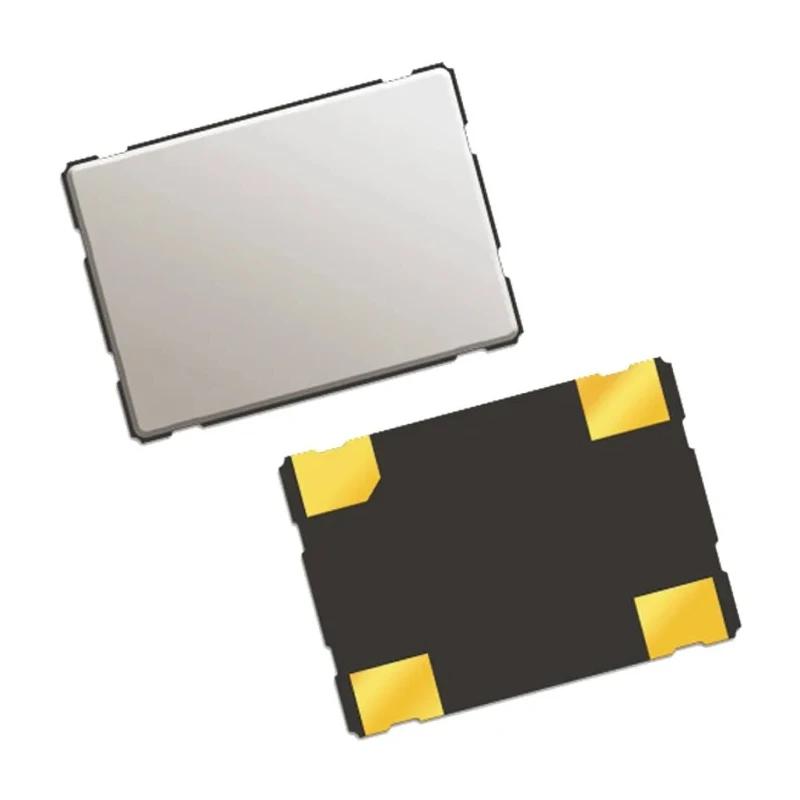

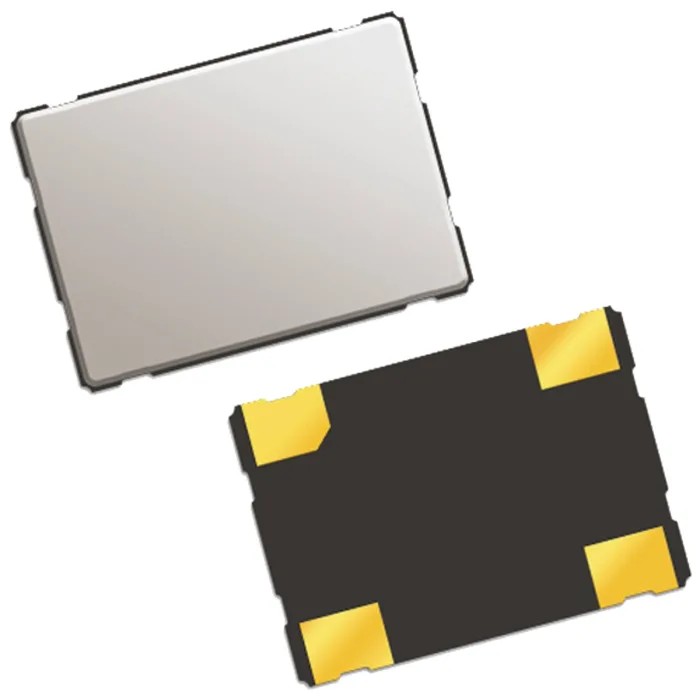

QANTEK 24MHz Clock Oscillator ±25 ppm HCMOS 4-Pin Surface Mount QX733A24.00000B15R
Specifications
| Country of Origin | India |
|---|---|
| Brand | QANTEK |
| Height | 1.4mm |
| Length | 7mm |
| Model | QX733A24.00000B15R |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Series | QX7 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 24MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.3V |
| Load Capacitance | 15pF |
| Oscillator Type | Clock |
| Output Level | HCMOS |
Key Features
- Operates at a precise output frequency of 24MHz.
- Maintains frequency stability within ±25 ppm across temperature range.
- Features a 4-pin surface mount package measuring 7mm x 5mm x 1.4mm.
- Maximum supply voltage of 3.3V suitable for low power applications.
- Operating temperature range from -40°C to 85°C for wide industrial use.
- Provides HCMOS logic level output for digital circuit compatibility.
- Packaged on tape & reel for efficient automated PCB placement.
- Ideal for electronic circuit timing and clock generation applications.
Product Description
QANTEK QX733A24.00000B15R is a high-precision 24MHz clock oscillator designed in a compact 4-pin surface mount ceramic package. It delivers excellent frequency stability of ±25 ppm, ensuring dependable timing accuracy in diverse electronic applications.
This oscillator supports a maximum supply voltage of 3.3V, making it suitable for modern low-voltage digital circuits. The HCMOS output level provides clean digital signals compatible with microcontrollers, processors, and other digital logic devices.
Engineered to operate reliably within a wide temperature range from -40°C to 85°C, this device supports usage in challenging industrial, manufacturing, and consumer environments. Its small form factor (7mm length, 5mm width, and 1.4mm height) facilitates compact PCB designs and high-density circuit boards.
Packaged on tape and reel, the QX733A24.00000B15R oscillator is optimized for automated assembly lines, improving manufacturing throughput and component handling. Operates at a precise output frequency of 24MHz with ±25 ppm stability.
Compact 4-pin surface mount design measuring 7mm x 5mm x 1.4mm ceramic package. Maximum supply voltage of 3.3V compatible with low-voltage digital electronics. Wide operating temperature range from -40°C to 85°C suits industrial environments.
HCMOS output ensures compatibility with various digital logic circuits. Tape and reel packaging supports mass automated PCB assembly. QX7 series ceramic case construction offers mechanical robustness. Ideal for timing, synchronization, and clock generation roles in electronics.
Ensures stable and reliable frequency output across varied conditions. This Crystal Oscillator fits perfectly within electronic component inventories for industrial automation, communication devices, and consumer electronics manufacturing.
Discover the comprehensive collection of precision oscillators and timing components available at EnvMart to support your product designs and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a precise output frequency of 24MHz.
The operating temperature range is from -40°C to 85°C, making it suitable for various industrial applications.
This oscillator provides an HCMOS output level, ensuring compatibility with digital circuits.
The maximum supply voltage is 3.3V, which is suitable for low-voltage digital applications.
The package measures 7mm in length, 5mm in width, and 1.4mm in height.
The load capacitance is 15pF, which is essential for its operation in various circuits.
It is packaged on tape and reel, optimizing it for automated PCB assembly processes.
This model is part of the QX7 series of oscillators.
It features a 4-pin configuration, suitable for surface mount applications.
It is ideal for timing, synchronization, and clock generation roles in electronic circuits.
The country of origin for this product is India.
It maintains frequency stability within ±25 ppm across its operating temperature range.
