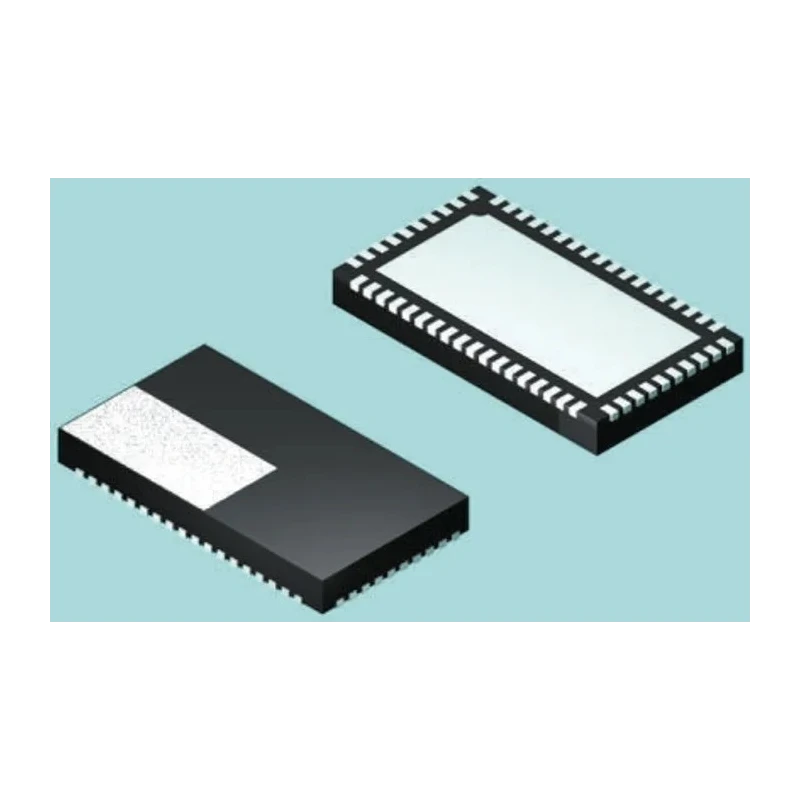

Microchip 56-Pin QFN Ethernet Transceiver LAN8820I-ABZJ 2.25 V to 3.3 V RMII Full Duplex/Half Duplex
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 8mm |
| Model | LAN8820I-ABZJ |
| Width | 8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet PHY |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | RMII |
| Pin Count | 56 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 2.25V |
| Supply Current | 460mA |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3u, IEEE 802.3, IEEE |
| Number of Transceivers | 1 |
| Integrated DSP | Drives an Adaptive Equalizer, Echo Cancellers and Crosstalk Cancellers |
Key Features
- Supports IEEE 802.3u, 802.3, and 802.3ab Ethernet standards.
- Features internal loopback mode for testing.
- Surface mount package with compact 8mm x 8mm x 1mm dimensions.
- Supply current of 460mA ensures efficient operation.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Includes integrated DSP with adaptive equalizer, echo cancellers, and crosstalk cancellers.
- Flexible LED configuration and HP Auto-MDIX support.
- Compliant with Gigabit Ethernet (1000BASE-T), Fast Ethernet, and 10BASE-T protocols.
Product Description
Microchip LAN8820I-ABZJ is a high-performance Ethernet Transceiver IC in a 56-Pin QFN surface mount package, measuring 8mm by 8mm with a height of 1mm. This device supports both full duplex and half duplex communication modes, delivering reliable and efficient data transmission across networks.
Operating at a supply voltage range from 2.25 V to 3.3 V, and a supply current of 460mA, the LAN8820I-ABZJ transceiver complies with IEEE 802.3u, 802.3, and 802.3ab standards for 10/100/1000 Mbps Ethernet applications. It features an RMII interface enabling easy connection to Ethernet MAC controllers.
The transceiver supports internal loopback mode for diagnostics and includes a fully integrated DSP with adaptive equalizers, echo cancellers, and crosstalk cancellers for superior signal integrity in challenging environments. It also incorporates HP Auto-MDIX technology, automatically configuring interfaces to eliminate the need for crossover cables.
Designed for surface mount, this 56-pin QFN package transceiver is compact and suitable for industrial and commercial networking equipment, including LAN switches, routers, and industrial Ethernet devices operating within a temperature range of -40°C to 85°C. This robust design makes the product ideal for a wide range of applications in electronics, communication systems, and embedded networking solutions.
Supports IEEE 802.3u, 802.3, 802.3ab Ethernet standards. Internal loopback mode for in-circuit testing and diagnostics. Surface mount 56-pin QFN package, 8mm x 8mm x 1mm. Supply voltage range from 2.25 V to 3.3 V. Integrated DSP with adaptive equalizer, echo cancellers, and crosstalk cancellers.
HP Auto-MDIX support simplifies network cabling. Full duplex and half duplex communication modes supported. Operating temperature range: -40°C to 85°C.
Microchip products are trusted in various industrial, telecommunications, and electronic manufacturing sectors. Explore our Ethernet Transceiver category to find this and other high-performance networking components, designed to meet rigorous standards and ensure reliable industrial and commercial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage range for this model is from 2.25 V to 3.3 V.
It supports both full duplex and half duplex communication modes.
This transceiver comes in a 56-pin QFN package with dimensions of 8mm x 8mm and a height of 1mm.
The maximum operating temperature is 85°C.
Yes, it features an internal loopback mode for diagnostics and in-circuit testing.
It complies with IEEE 802.3u, IEEE 802.3, and IEEE 802.3ab standards.
It uses an RMII interface for connection to Ethernet MAC controllers.
The supply current is 460mA, ensuring efficient operation.
It includes an integrated DSP with adaptive equalizers, echo cancellers, and crosstalk cancellers for improved signal integrity.
The minimum operating temperature is -40°C.
It is suitable for industrial and commercial networking equipment, including LAN switches, routers, and industrial Ethernet devices.
This transceiver has a pin count of 56.
