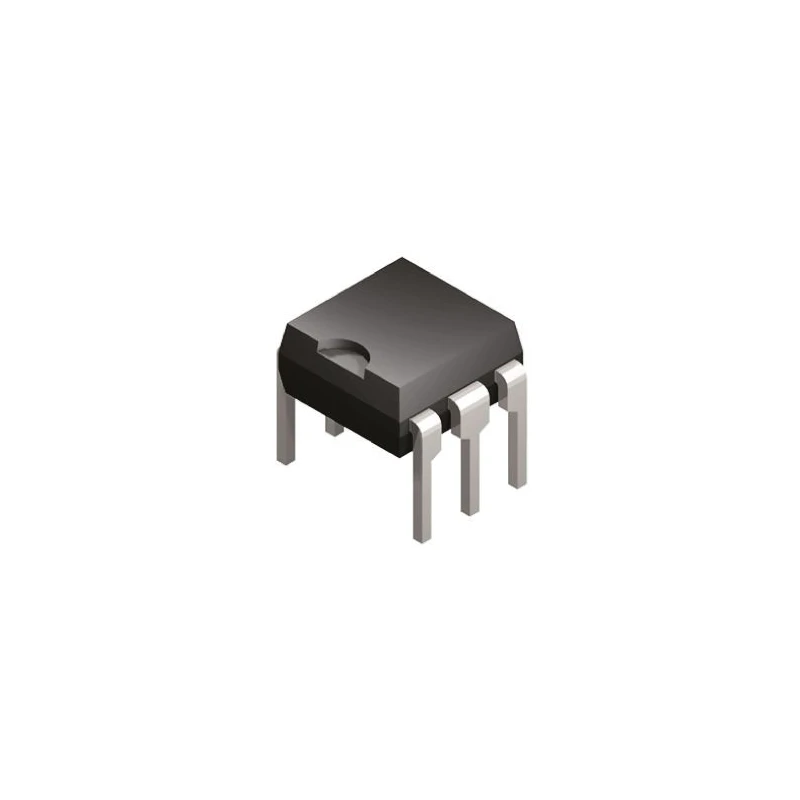

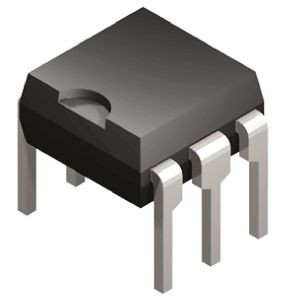

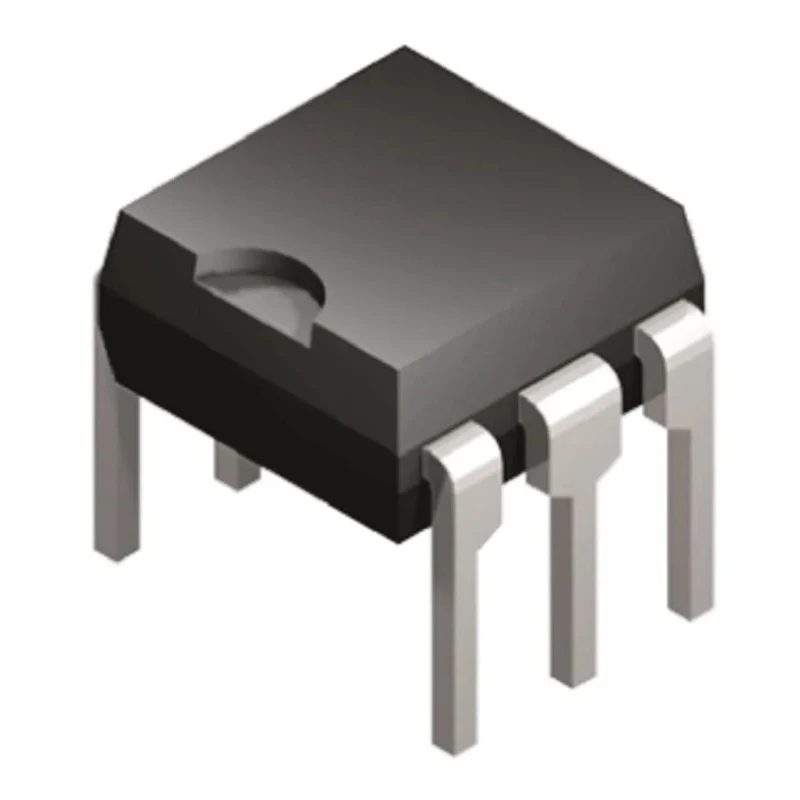

onsemi DC Input Photodarlington Optocoupler Through Hole 6-Pin MDIP H11G1M
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | H11G1M |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Photodarlington |
| Series | H11G |
| Maximum Operating Temperature | 100°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | DIN, EN, UL |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 1000% |
| Typical Fall Time | 100μs |
| Isolation Voltage | 7500V ac |
Key Features
- The device operates with a maximum forward voltage of 1.5V for efficient input control.
- It supports a maximum input current of 60mA suitable for diverse applications.
- The isolation voltage rating of 7500V AC ensures secure signal separation.
- Equipped with a typical rise time of 5 microseconds and fall time of 100 microseconds for efficient switching.
- The maximum current transfer ratio is 1000% enhancing signal amplification.
- The optocoupler functions accurately from -40°C to 100°C operating temperature range.
- It is shipped in a tube packaging containing a single channel component.
- Conforms to DIN, EN, and UL standards assuring industrial quality.
Product Description
The onsemi H11G1M is a DC input optocoupler designed for robust electrical isolation in electronic circuits. It features a photodarlington output in a 6-pin MDIP through-hole package, suitable for applications requiring signal transfer with galvanic isolation.
This component exhibits a maximum forward voltage of 1.5V at the input side and can handle input currents up to 60mA DC. Its isolation voltage rating of 7500V AC provides secure separation between input and output sections, critical for safety and signal integrity.
The typical rise and fall times of 5 microseconds and 100 microseconds respectively enable effective switching performance in various industrial and electronic control systems. With a high current transfer ratio of 1000%, the H11G1M ensures strong signal amplification through optoelectronic coupling.
Operating reliably over a wide temperature range from -40°C to 100°C, this optocoupler conforms to DIN, EN, and UL standards, reflecting its suitability for demanding environments.
Supplied in tube packaging for ease of handling and insertion, the device contains one channel and six pins, making it ideal for use in power electronics, industrial automation, and communications equipment.
The device operates with a maximum forward voltage of 1.5V for efficient input control. It supports a maximum input current of 60mA suitable for diverse applications. The isolation voltage rating of 7500V AC ensures secure signal separation.
Equipped with a typical rise time of 5 microseconds and fall time of 100 microseconds for efficient switching. The maximum current transfer ratio is 1000% enhancing signal amplification. The optocoupler functions accurately from -40°C to 100°C operating temperature range.
It is shipped in a tube packaging containing a single channel component. Conforms to DIN, EN, and UL standards assuring industrial quality.
This Optocoupler is well-suited for applications in industrial automation, signal isolation, power supply circuits, and electronic instrumentations where reliable signal transmission is critical. Explore the Electronics Components category on EnvMart for compatible items and complementary solutions.
