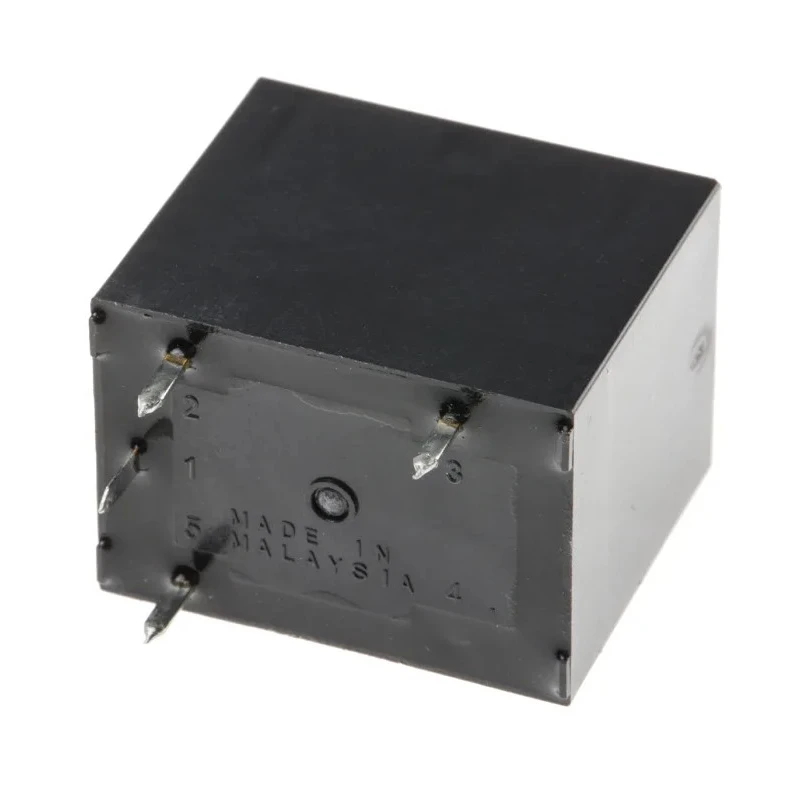

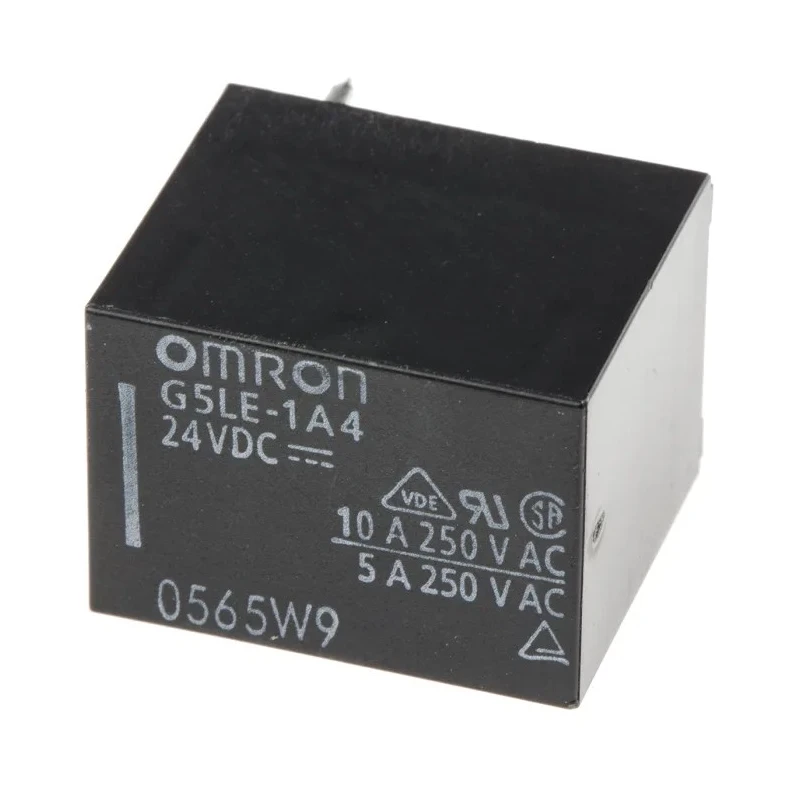

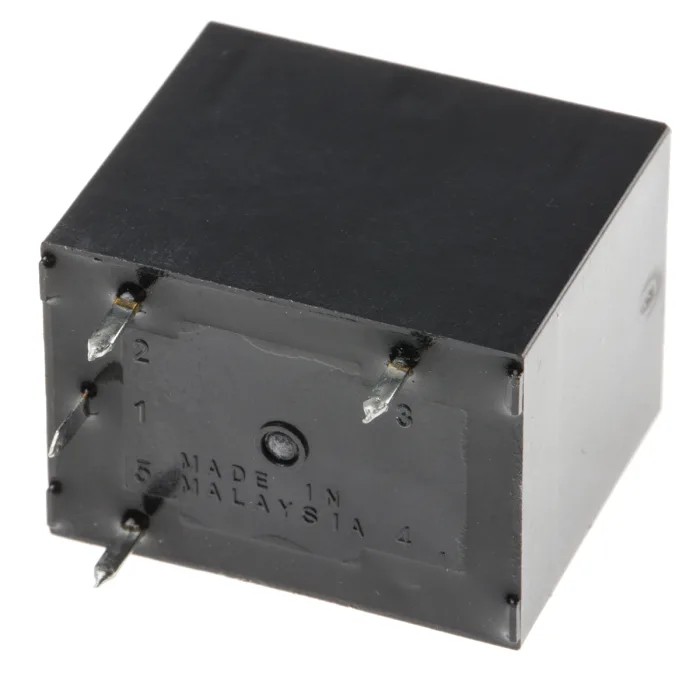

Omron PCB Power Relay, 24V DC Coil Voltage, 10A Switching Current, SPST Contact Configuration G5LE-1A4-DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-1A4-DC24 |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- The relay operates with a coil resistance of 1.4kΩ and coil power of 400mW.
- It supports switching voltages up to 125V DC and 125V AC.
- Designed for PCB mounting using PCB pin terminals.
- Compact dimensions of 22.5mm length, 16.5mm width, and 19mm height enable subminiature applications.
- Contact material is silver alloy ensuring reliable conductivity with contact resistance around 100mΩ.
- Operating temperature ranges from -25°C to a maximum of 85°C.
- Approved by standards including CSA and UL for safety compliance.
- Ideal for industrial automation, electrical, manufacturing, and control system uses.
Product Description
Omron G5LE-1A4-DC24 PCB Power Relay is a subminiature 'sugar cube' format relay designed for PCB mounting with a 24V DC coil and 10A switching current capacity. This power relay features a SPST (Single Pole Single Throw) contact configuration, making it suitable for switching applications in electrical control circuits.
The relay coil has a resistance of 1.4kΩ and consumes 400mW coil power, ensuring efficient operation. It supports switching voltages up to 125V DC and 125V AC, accommodating varied signal conditioning and power control needs. The silver alloy contact material provides robust electrical conductivity with a low contact resistance of approximately 100mΩ, ensuring reliable switching performance.
This compact unit measures 22.5mm in length, 16.5mm in width, and 19mm in height, allowing easy integration within tightly packed PCB layouts. It operates within an ambient temperature range from -25°C to a maximum of 85°C, ensuring versatility in industrial environments.
Safety approvals from CSA and UL highlight its compliance with international product safety standards, making it reliable for industrial, automation, manufacturing, electrical, HVAC, and laboratory applications.
The relay's subminiature format is ideal for space-constrained PCB designs. Withstands impulse voltages up to 4500V enhancing durability and performance. High current switching capacity supports diverse power requirements.
Designed specifically for electrical and automation control circuit applications. Combination of high reliability and compact size makes it suitable for industrial and manufacturing environments.
This Omron power relay offers an excellent solution to switch electrical loads efficiently on PCBs, contributing to optimized control and automation processes in various industries.
Explore more Power Relays and related electrical components at EnvMart for quality and reliability you can trust.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
It can handle a maximum switching current of 10A.
This relay measures 22.5mm in length, 16.5mm in width, and 19mm in height.
The relay features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 1.4kΩ.
The contact material is silver alloy, which ensures reliable conductivity.
It supports switching voltages up to 125V DC and 125V AC.
The operating temperature range is from -25°C to a maximum of 85°C.
The contact resistance is approximately 100mΩ.
It is approved by CSA and UL for safety compliance.
The coil consumes 400mW of power.
This model is designed for PCB mounting using PCB pin terminals.
