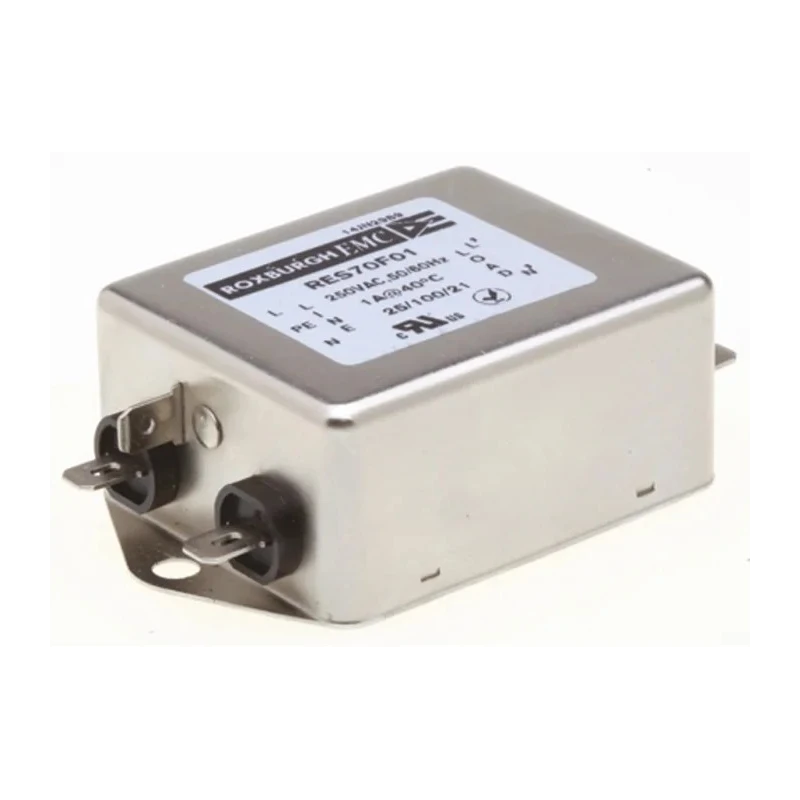

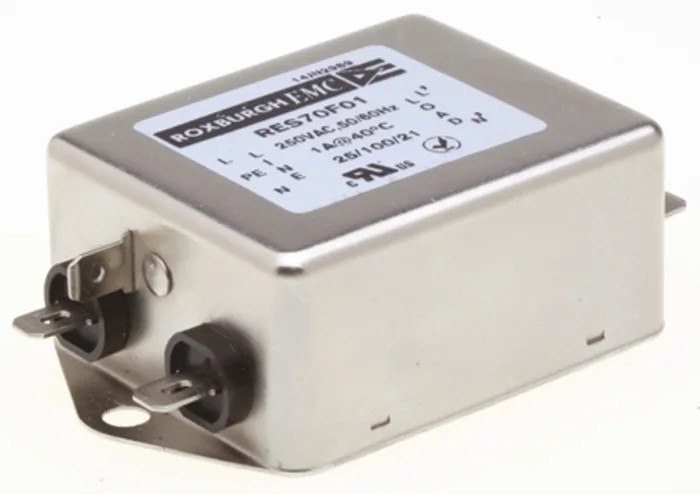

Roxburgh EMC RES70 1 A 250V AC 400Hz Chassis Mount RFI Filter Fast-On Termination RES70

Roxburgh EMC RES70 model is a multi-stage, single phase chassis mount RFI filter engineered for effective high differential and common mode noise attenuation up to 400Hz frequency. This filter supports a maximum current of 1 Amp and maximum voltage of 250V AC. Its fast-on termination style and compact chassis mount form factor allow for quick and secure installation in various industrial and commercial electronic equipment.

Designed specifically for environments where high electrical noise is prevalent, such as drives and automation machinery, the RES70 filter significantly reduces EMI/RFI interference. It operates reliably within a temperature range of -25°C to 100°C and features a low leakage current of 730μA, which makes it compliant for use even in sensitive medical electronics.

The filter has a capacitance rating of 660nF and inductance of 44mH, balancing noise filtering efficiency without compromising circuit performance. Its physical dimensions are 85mm in length, 52mm in depth, and 30mm in height, with a resistance of only 1 milliohm, ensuring minimal power loss. Additionally, the product meets UL 1283 and CSA 22.2 No. 8 certification standards to assure safety and quality in power line noise filtering applications.

Typical applications include electronic and electrical equipment, consumer goods, office automation, building automation systems, communication devices, and machinery noise suppression. The fast-on termination design allows for quick connection and disconnection in maintenance or upgrade scenarios.

Manufactured in India, Roxburgh EMC RES70 series filters represent a dependable choice for effective EMI/RFI suppression providing operational stability and enhanced electromagnetic compatibility in industrial, laboratory, and commercial installations.

Explore our range of EMI Filters at EnvMart for high-quality industrial noise suppression solutions. The filter provides multi-stage, high differential and common mode attenuation performance. Suitable for use in environments with high electrical noise such as drives and industrial equipment.

Compact chassis mount design with fast-on terminals allows easy installation. Rated maximum operating temperature of 100°C and minimum of -25°C ensure durability in varied conditions. Features low leakage current of 730μA, making it suitable for medical applications.

Complies with UL 1283 and CSA 22.2 No. 8 standards for safety and performance. Capacitance of 660nF and inductance of 44mH optimize noise filtering efficiency. Compact dimensions: 85mm length, 52mm depth, and 30mm height.

Low resistance of 1mΩ helps maintain circuit integrity. Manufactured in India with high-quality construction.
