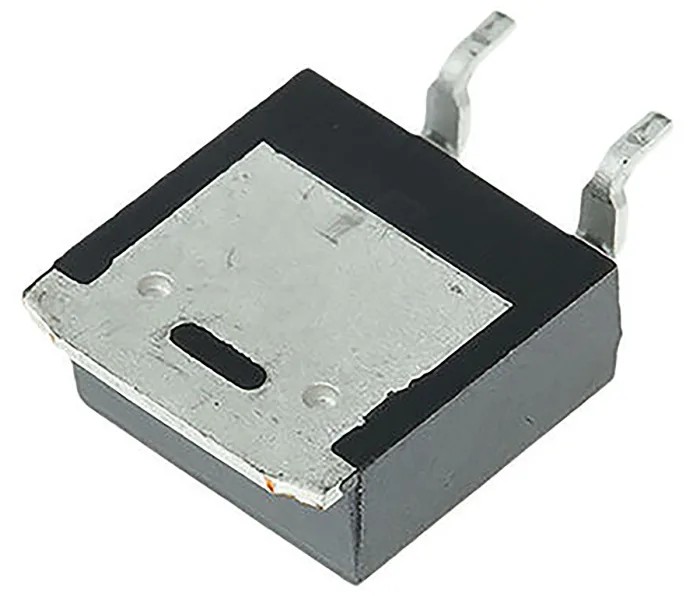

onsemi Surface Mount Positive Voltage Regulator 20V 3-Pin NCV1117DTARKG

onsemi NCV1117DTARKG is a surface mount positive voltage regulator designed for stable operation in electronic circuits, with a maximum input voltage of 20V and 3-pin configuration.

This low dropout (LDO) linear regulator offers an output current exceeding 1A and includes features such as current limit and thermal shutdown protection, ensuring reliable and safe operation under varying load conditions.

The device is compliant with automotive standards (AEC-Q100) making it suitable for automotive applications, as well as general consumer and industrial electronic equipment including battery chargers, hard drive controllers, and switching power supply post regulation.

Its quiescent current of 10mA ensures energy-efficient operation, while the compact DPAK or SOT-223 package (6.73mm length, 6.22mm width, and 2.38mm height) facilitates seamless integration in modern PCBs with limited space.

The regulator provides excellent output voltage accuracy, temperature stability, and a dropout voltage of 1.2V max at 800mA load, supporting fixed or adjustable voltage output options programmable from 1.25V to 18.8V.

Supports maximum input voltage of 20V with minimum input voltage of 2.9V. Features quiescent current of 10mA for energy efficiency. Compact surface mount design with 3 pins for easy PCB integration. Operates reliably up to maximum temperature of 125°C.

Designed with current limit and thermal shutdown protection for safety. Automotive grade with AEC-Q100 standard compliance. Available in DPAK or SOT-223 package options. Supports output current in excess of 1A with low dropout voltage.

Suitable for consumer and industrial electronic equipment applications. Commonly used in battery chargers, hard drive controllers, and power supply post regulation.

This voltage regulator is ideal for applications requiring stable voltage supply with minimal noise and quick transient response, supporting design innovation in industrial, automotive, and consumer electronics.

EnvMart offers a comprehensive range of power management ICs including Voltage Regulators like the NCV1117DTARKG for robust, efficient, and compact circuit designs.
