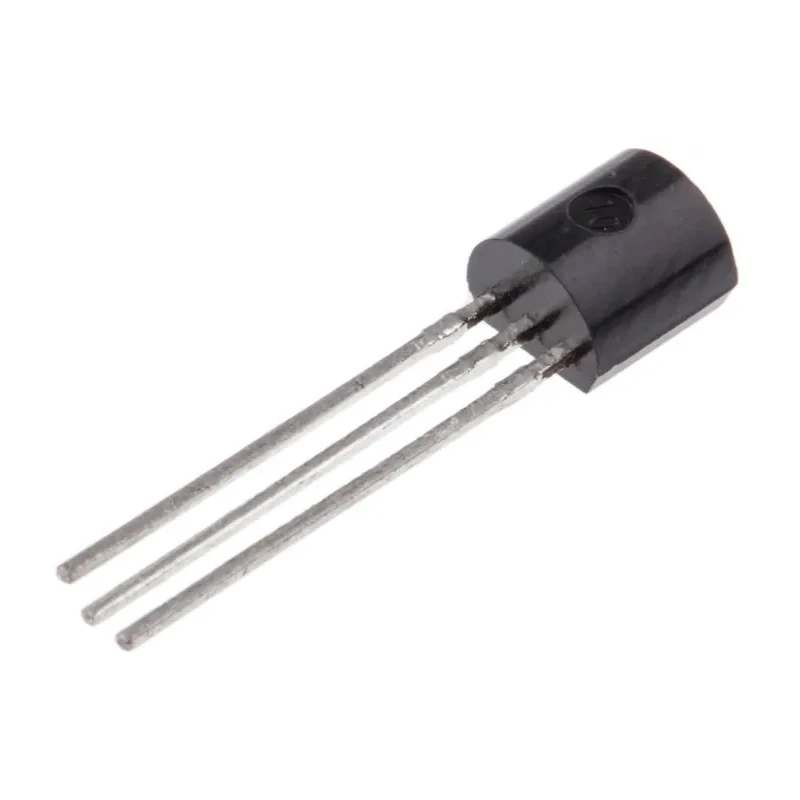

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V Z0107MA 1AA2
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 4.4mm |
| Length | 4.7mm |
| Model | Z0107MA 1AA2 |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 1A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 8.5A |
| Maximum Gate Trigger Current Igt | 7mA |
| Maximum Holding Current Ih | 10mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.6V |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 1 ampere.
- Compact TO-92 package mount type suitable for through hole applications.
- Maximum gate trigger current of 7 milliamperes ensures precise control.
- Surge current rating of 8.5 amperes for robust transient handling.
- Operating temperature range from -40°C to 125°C for reliable performance under varied conditions.
- Peak on-state voltage of 1.6 volts to minimize power loss.
- 3-pin configuration with single TRIAC design for simplified circuitry.
- Supports repetitive peak reverse voltage up to 600 volts.
Product Description
STMicroelectronics Z0107MA 1AA2 is a through hole 3-pin TRIAC suitable for AC power control applications requiring up to 600 V blocking voltage. It features a gate trigger voltage of 1.3 V allowing sensitive triggering in electronic circuits.
The device is housed in a TO-92 package which facilitates easy insertion into through hole PCB layouts and small form-factor designs. Its rated average on-state current of 1A together with a surge current capacity of 8.5A ensures reliable switching performance for medium load AC applications.
Operating over a wide temperature range of -40°C to 125°C, this TRIAC is suitable for industrial, commercial, and domestic use in power control, motor speed regulation, and light dimming applications. It includes protective features such as a maximum gate trigger current of 7mA and maximum holding current of 10mA to ensure stable operation.
The compact 3-pin single TRIAC configuration supports straightforward circuit integration. Compliance with RoHS directives confirms its environmentally friendly manufacture and safe disposal.
Rated average on-state current of 1 ampere. Compact TO-92 package mount type suitable for through hole applications. Maximum gate trigger current of 7 milliamperes ensures precise control. Surge current rating of 8.5 amperes for robust transient handling.
Operating temperature range from -40°C to 125°C for reliable performance under varied conditions. Peak on-state voltage of 1.6 volts to minimize power loss. 3-pin configuration with single TRIAC design for simplified circuitry.
Supports repetitive peak reverse voltage up to 600 volts. Maximum holding current of 10 milliamperes for stable latch operation. Complies with RoHS standards for environmental safety. Ideal for power control in industrial equipment, HVAC systems, manufacturing controls, and electronic prototypes requiring AC current switching and regulation.
Explore a vast range of semiconductor components including TRIACs at EnvMart for your industrial and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this TRIAC is 1 ampere.
It supports a repetitive peak reverse voltage of up to 600 volts.
The maximum gate trigger voltage is 1.3 volts, allowing for sensitive triggering in electronic circuits.
The surge current rating is 8.5 amperes, providing robust transient handling capabilities.
It operates within a temperature range of -40°C to 125°C.
This model is housed in a TO-92 package, suitable for through hole applications.
It has a 3-pin configuration, which simplifies circuit integration.
The maximum gate trigger current is 7 milliamperes, ensuring precise control.
The peak on-state voltage is 1.6 volts, which helps to minimize power loss.
The maximum holding current is 10 milliamperes, which ensures stable latch operation.
It complies with RoHS standards for environmental safety.
This TRIAC is suitable for power control in industrial equipment, HVAC systems, and light dimming applications.
