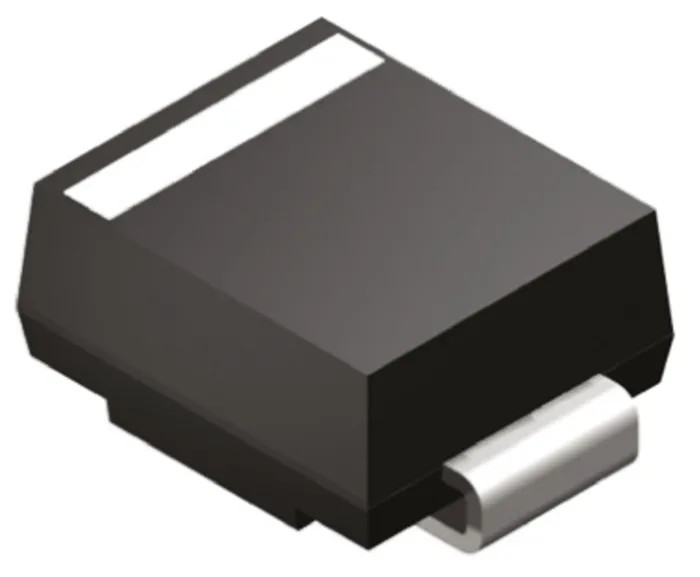

STMicroelectronics 1-Element Bi-Directional TVS Diode 600W 2-Pin DO-214 SM6T22CAY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Package | DO-214AA (SMB) |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T22CAY |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6TY |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 39.3V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 20.9V |
| Maximum Reverse Stand-off Voltage Vwm | 18.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 102A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for automotive surge and electrostatic discharge protection.
- Supports bidirectional voltage clamping with 600W pulse power capability.
- Package type DO-214 offers compact surface mount installation.
- Operating temperature range from -55°C to 150°C for reliability.
- Complies with automotive standard AEC-Q101 for quality assurance.
- Minimum breakdown voltage of 20.9V with maximum reverse stand-off of 18.8V.
- Peak pulse current rating of 102A ensures robust transient voltage suppression.
- Low maximum reverse leakage current of 1 μA maintains circuit integrity.
Product Description
STMicroelectronics SM6T22CAY Bi-Directional TVS Diode is a transient voltage suppressor designed for automotive and industrial applications. It delivers a peak pulse power dissipation of 600 watts, effectively protecting sensitive electronic circuits from voltage surges and electrostatic discharges according to ISO 7637-2 and ISO 10605 standards.
This 1-element TVS diode features a single diode configuration with bidirectional voltage protection, making it suitable for clamping both positive and negative transients. Its compact surface mount DO-214 package (DO-214AA/SMB) facilitates efficient PCB mounting in space-constrained environments.
Operating reliably over a temperature range from -55°C to 150°C, this diode complies with the rigorous automotive AEC-Q101 quality standard, making it ideal for use in automotive electronic systems requiring high reliability. The device exhibits a minimum breakdown voltage of 20.9 volts and a maximum reverse stand-off voltage of 18.8 volts.
The maximum peak pulse current capability is 102 amperes, and it has a clamping voltage of 39.3 volts to safeguard circuits against voltage spikes. Its maximum reverse leakage current is only 1 microampere, ensuring minimal power loss and higher circuit efficiency.
With the dimensions of 4.6mm length, 3.95mm width, and 2.45mm height, the SM6T22CAY integrates easily into compact circuit designs. Its robust performance and automotive-grade construction make it well-suited for use in construction, automotive electronics, industrial control systems, and general electronic protection applications.
Designed for automotive and industrial transient voltage suppression applications. Complies with ISO 7637-2 and ISO 10605 surge standards. Packaging: Surface mount DO-214AA (SMB) package. Provides high pulse power dissipation of 600W for circuit protection.
Robust operation from -55°C to 150°C temperature range. Certified to automotive AEC-Q101 standard for high reliability. Compact size suitable for space-constrained PCB designs. Bi-directional voltage protection to clamp positive and negative surges.
Explore more TVS Diodes and automotive grade semiconductor protection devices on EnvMart to secure your electronic systems effectively.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SM6T22CAY has a peak pulse power dissipation of 600 watts, providing effective protection against voltage surges.
This model operates reliably over a temperature range from -55°C to 150°C.
The minimum breakdown voltage is 20.9 volts, which is essential for its clamping function during voltage transients.
The clamping voltage for the SM6T22CAY is 39.3 volts, which helps protect circuits from voltage spikes.
The maximum reverse stand-off voltage for this model is 18.8 volts, ensuring safe operation under specified conditions.
This diode can handle a maximum peak pulse current of 102 amperes, providing robust transient voltage suppression.
The SM6T22CAY is housed in a DO-214AA (SMB) package, suitable for surface mount installation.
It complies with the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
The maximum reverse leakage current for this model is 1 microampere, which helps maintain circuit integrity.
This diode features a single element configuration, designed for bi-directional voltage protection.
The height of this diode is 2.45 mm, making it suitable for compact circuit designs.
The width is 3.95 mm and the length is 4.6 mm, allowing for efficient PCB mounting in space-constrained environments.
