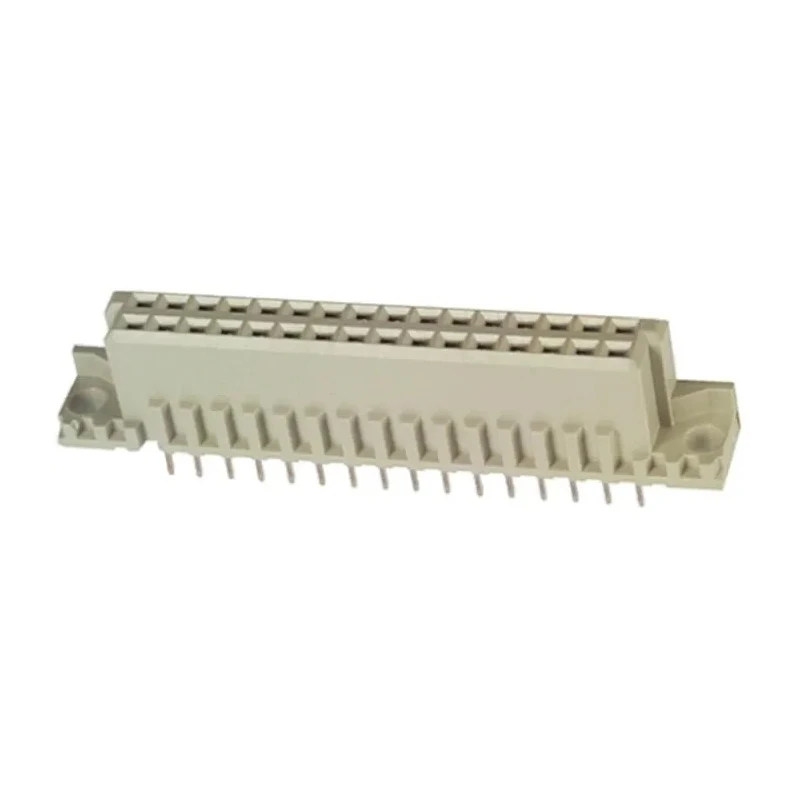

TE Connectivity Eurocard DIN 41612 Connector 32 Way 2.54 mm Pitch 2 Row Female Straight Solder Type 5650858-5

Name: TE Connectivity Eurocard DIN 41612 Connector 32 Way 2.54 mm Pitch 2 Row Female Straight Solder Type 5650858-5
Brand: TE Connectivity
SKU: 131956
Price: 5.57 USD
Availability: InStock



Category DIN 41612 Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Voltage	250, 250V ac
Brand	TE Connectivity
Orientation	Straight
Current	1.5A
Mount Type	Board
Housing Material	Polymer
Contact Material	Copper Alloy
Series	Eurocard
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Type B
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	32
Contact Gender	Female
Connector Gender	Female
Row Loading	A/B

Key Features

Meets DIN 41612 and IEC 60603-2 standards for reliable performance.
Offers a current rating of 1.5A and voltage rating of 250V AC.
Constructed with copper alloy contacts plated with tin and a polymer housing.
Designed for solder termination on board mount assemblies.
Operates reliably between -55°C and 125°C temperatures.
Features type B subtype with row loading A/B for common bus systems.
Polarization features prevent mis-mating for secure connections.
Suitable for use in industrial control, telecom, data centres, and modular rack systems.

Product Description

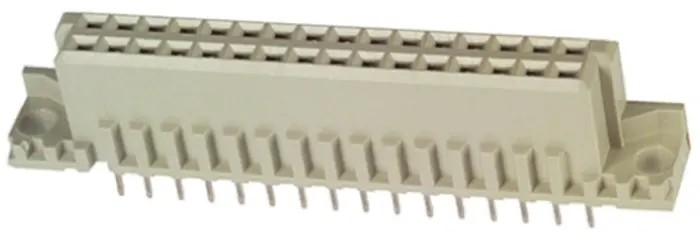

TE Connectivity 5650858-5 Eurocard DIN 41612 Connector is a 32-way, 2.54 mm pitch female connector designed for board mounting with solder termination. This connector conforms to DIN 41612 and IEC 60603-2 standards, providing high signal integrity and reliable performance in electrical and electronic applications.

The connector features two rows of female contacts arranged in a straight orientation, with a current rating of 1.5A and voltage rating of 250V AC. Its contacts are made from copper alloy with tin plating to ensure excellent conductivity and durability, while the housing is made of flame retardant polymer material.

This Type B connector subtype includes row loading A/B and is widely used in common bus systems such as STE Bus, CIMBUS, FUTUREBUS, and VME Bus systems. Polarization features prevent mis-mating, enhancing system reliability. The connector is suitable for harsh operating environments, with a temperature range from -55°C to 125°C.

Applications include industrial control distributed control systems (DCS), data centres, telecommunications equipment, server assemblies, and modular rack systems. Manufactured in the United States, this connector offers dependable quality for demanding industrial, laboratory, and manufacturing environments.

Conforms to DIN 41612 and IEC 60603-2 standards for industrial connectivity. 32 contact points with 2 rows and 2.54 mm pitch ensure precise connections. Flame retardant polymer housing with polarization for safe mating. Suitable for solder termination on printed circuit boards.

Wide operating temperature range supports a variety of environments. Ideal for high-speed trains, telecom, data centres, and industrial controls. Explore more TE Connectivity products and similar DIN 41612 Connectors for your electronic component needs on EnvMart.
