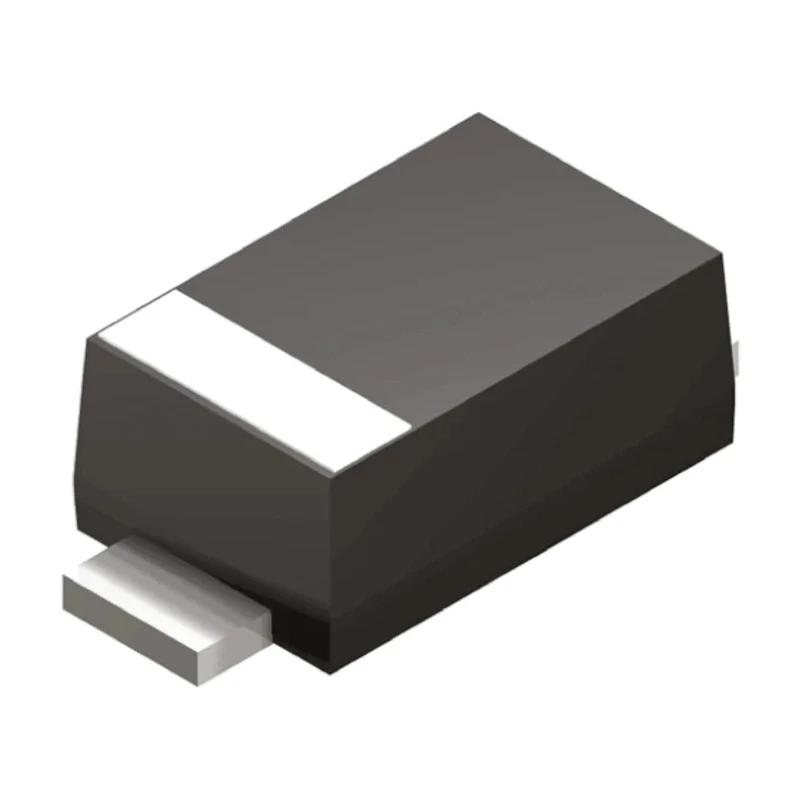

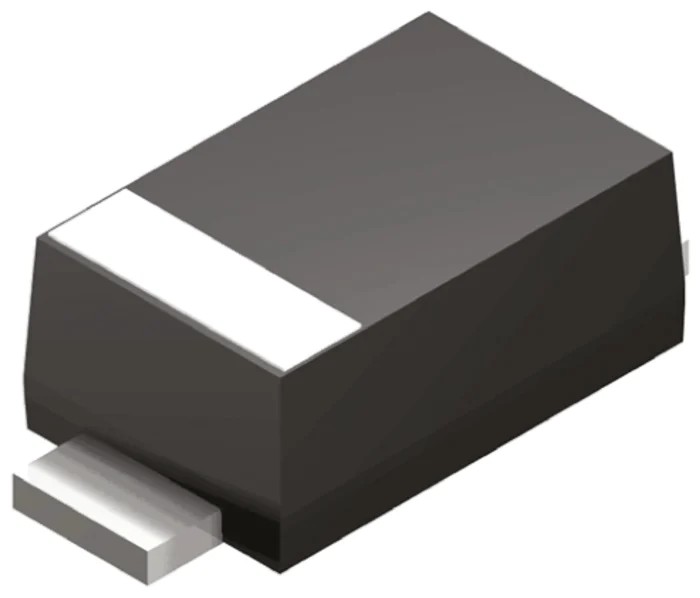

Nexperia 1-Element Uni-Directional TVS Diode 400 W, 11.1 V Breakdown, 2-Pin SOD-123 PTVS10VS1UR,115

Nexperia PTVS10VS1UR,115 1-Element Uni-Directional TVS Diode delivers 400 W peak pulse power dissipation in a compact SOD-123 surface mount package. It is designed for transient voltage suppression protecting sensitive electronic circuits from voltage spikes and surges.

The device features a single-element diode configuration with a minimum breakdown voltage of 11.1 V and clamps voltage at 17 V during surge events, ensuring effective overvoltage protection. It sustains a maximum peak pulse current of 23.5 A and maintains low leakage current of 2.5 μA, optimizing circuit efficiency.

This TVS Diode operates reliably over a broad temperature range from -55°C to 150°C, meeting demanding industrial and automotive standards including AEC-Q101 quality. The 2-pin SOD-123 package measures a compact 2.8 mm by 1.9 mm footprint with 1.1 mm height, suitable for high-density PCB layouts in consumer electronics, industrial controls, automotive electronics, communication devices, and more.

Designed for surface mount technology, it facilitates efficient assembly on printed circuit boards with robust transient protection. It is ideal for use in power supplies, motor drives, telecommunications, and any application requiring protection from voltage transients and electrostatic discharge (ESD).

Single diode configuration with uni-directional voltage suppression. 11.1 V minimum breakdown voltage for reliable protection. Surface mount SOD-123 package with 2 pins suitable for compact circuits. Clamping voltage of 17 V and peak pulse current of 23.5 A for transient surge handling.

Operating temperature range from -55°C to 150°C for harsh environments. Automotive grade AEC-Q101 compliant for robust reliability. Low leakage current of 2.5 μA to minimize power loss in circuits. Compact dimensions: 2.8 mm length, 1.9 mm width, 1.1 mm height.
