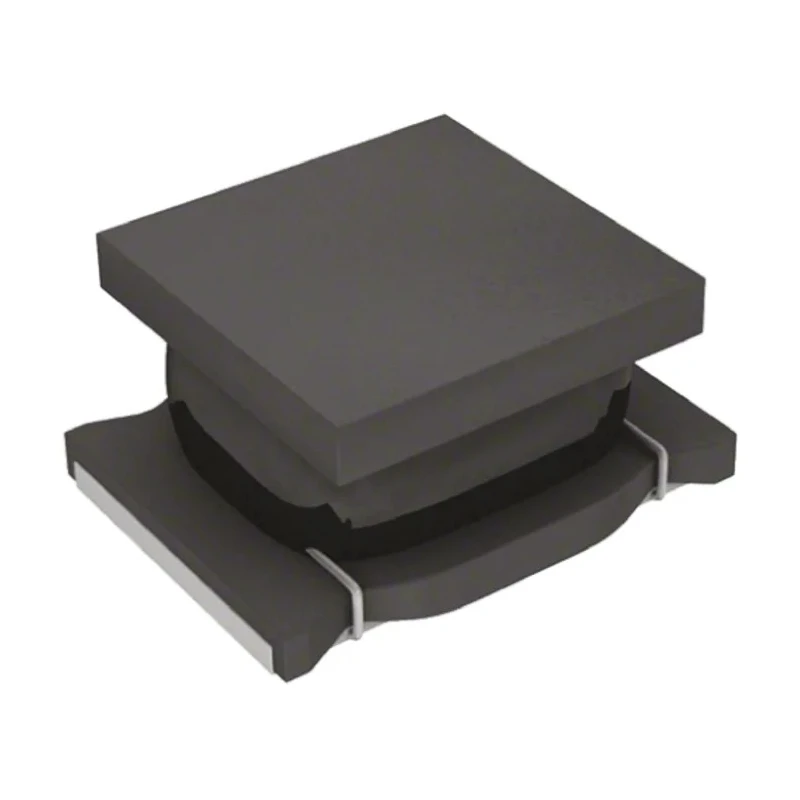

Murata 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core, 4.7 μH ±30% 1 A DC Current LQH32PN4R7NN0L

Murata LQH32PN4R7NN0L is a 1210 size shielded wirewound surface mount inductor that features a ferrite core with a 4.7 μH inductance and a tolerance of ±30%. It supports a maximum DC current of 1 ampere, making it ideal for choke applications in DC power supply circuits within industrial and electronic equipment.

The inductor is magnetically shielded to minimize electromagnetic interference in dense circuit layouts. Constructed using wirewound technology and a ferrite core, it ensures low DC resistance of 180 milliohms and a high quality factor at high frequencies up to 40 MHz.

This small form factor component measures 3.2 mm length, 2.5 mm depth, and 1.55 mm height, packaged in an embossed tape suitable for automated surface mount assembly processes. It operates reliably across a wide temperature range from -40°C up to 85°C and features solder termination style for secure PCB placement.

RoHS compliant and molded for durability, this inductor suits applications spanning industrial electronics, telecommunications, power management circuits, and other high-frequency electronics requiring compact inductors with stable characteristics.

Magnetically shielded to reduce electromagnetic interference. Wirewound inductor construction with ferrite core material. Rated for 1 A maximum DC current with low DC resistance. Compact 1210 package size optimized for surface mount technology.

Wide operating temperature range from -40°C to 85°C. High frequency capability with 40 MHz max self-resonant frequency. Embossed tape packaging facilitates automated PCB assembly. Compliance with RoHS directives ensuring environmental standards.

This Murata LQH32PN4R7NN0L inductor is a reliable choice for engineers designing electronic circuits that demand high performance inductors in space-constrained applications including power supplies, filters, and signal conditioning in industrial, telecommunications, and consumer electronics.
