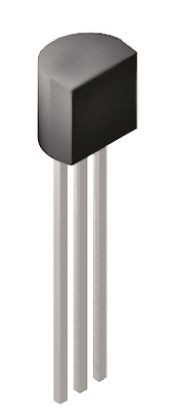

onsemi Voltage Regulator TO-92 Package 3-Pin 30V Max Input, Low Dropout Linear LP2950CZ-3.3RAG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 30V TO-92 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | LP2950CZ-3.3RAG |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | LP2950 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 75μA |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Designed with positive polarity and through-hole mount type.
- Operates with a low quiescent current of 75μA for efficient power consumption.
- Compact dimensions of length 5.2mm, width 4.19mm, and height 5.33mm.
- Supports a maximum operating temperature of 125°C, suitable for demanding applications.
- Compliant with AEC-Q100 automotive standards ensuring reliability.
- Provides up to 120mA output current with high power supply rejection ratio (PSRR).
- Ideal for automotive, industrial, and consumer electronic power regulation.
- Offers fast transient response and low noise performance.
Product Description
onsemi LP2950CZ-3.3RAG is a low dropout (LDO) linear voltage regulator designed for robust power management in electronic circuits. Housed in a compact TO-92 package with 3 pins, this device supports a maximum input voltage of 30V, providing reliable voltage regulation with minimal voltage differential between input and output.
This regulator operates with a very low quiescent current of 75μA, making it energy efficient for battery-powered and low power applications. Its small form factor dimensions of 5.2mm in length, 4.19mm width, and 5.33mm height allow easy integration into tight PCB layouts.
Designed to withstand a maximum operating temperature of 125°C, the LP2950CZ-3.3RAG meets stringent automotive requirements, conforming to the AEC-Q100 standard, which certifies suitability for automotive electronics usage. The positive polarity and through-hole mount type facilitate reliable mechanical and electrical connections in various applications.
The regulator can deliver up to 120mA of output current and offers superior power supply rejection ratio (PSRR) to minimize voltage spikes and noise, ensuring stable and consistent voltage delivery. It features a fast transient response to quickly compensate for variations in load conditions.
Typical industrial, automotive, and consumer electronics applications include powering microcontrollers, sensors, and other sensitive components requiring clean and stable voltage sources. The TO-92 packaging is compatible with automated production and insertion machinery, aiding manufacturing efficiency.
Designed for low dropout voltage operation with quick transient response. Energy-efficient with a low quiescent current of 75μA. Compact TO-92 package suitable for through-hole mounting. Compliant with the AEC-Q100 automotive standard, ensuring dependable performance.
Supports wide temperature range up to 125°C for harsh environments. For more industrial-grade Voltage Regulators and power management products, explore the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the LP2950CZ-3.3RAG is 30V.
This voltage regulator can deliver up to 120mA of output current.
The dimensions are 5.2mm in length, 4.19mm in width, and 5.33mm in height.
It operates with a low quiescent current of 75μA, making it energy efficient.
The LP2950CZ-3.3RAG supports a maximum operating temperature of 125°C.
It features a through-hole mount type for reliable connections.
Yes, it is compliant with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
This model has a positive polarity.
It is suitable for automotive, industrial, and consumer electronic power regulation, particularly for powering microcontrollers and sensors.
The LP2950CZ-3.3RAG is housed in a compact TO-92 package.
It offers a high power supply rejection ratio (PSRR), fast transient response, and low noise performance, ensuring stable voltage delivery.
This voltage regulator has 3 pins.
