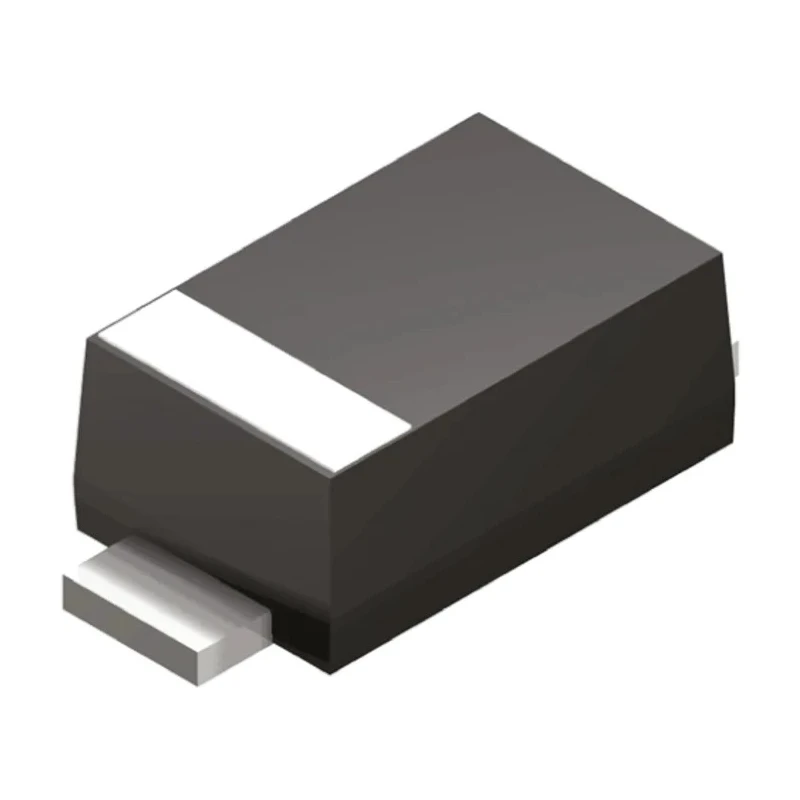

Nexperia 400 W 1-Element Uni-Directional TVS Diode Surface Mount SOD-123 Package PTVS5V0S1UR,115

Nexperia PTVS5V0S1UR,115 is a high-performance 1-element uni-directional transient voltage suppressor (TVS) diode designed for surface mount applications on printed circuit boards. It provides effective and reliable protection against transient voltage spikes up to 400 W power dissipation in a compact SOD-123 package.

The device features a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V, enabling it to clamp transient voltage events at 9.2 V to safeguard sensitive semiconductor circuits. Its 2-pin configuration allows easy PCB assembly using standard surface mount technology.

Engineered for demanding industrial and automotive environments, this TVS diode operates reliably across a wide temperature range from -55°C to 150°C and includes electrostatic discharge (ESD) protection for enhanced durability. It meets AEC-Q101 standards, confirming suitability for automotive electronics and other critical applications.

With peak pulse current capability of 43.5 A, it effectively absorbs and dissipates voltage surges caused by lightning, inductive switching, or other transient events, protecting downstream components and ensuring system robustness.

The compact SOD-123 package dimensions (1.9 mm length, 2.8 mm width, 1.1 mm height) make it ideal for space-constrained designs while ensuring mechanical stability and heat dissipation.

Single diode configuration providing effective transient voltage suppression. Uni-directional operation suited for protection against voltage spikes. Surface mount type with a compact SOD-123 package measuring 1.9mm length and 2.8mm width.

Minimum breakdown voltage of 6.4 V and maximum reverse stand-off voltage of 5 V. Clamping voltage of 9.2 V ensures protection of sensitive electronics. Capable of handling peak pulse power dissipation up to 400 W and peak pulse current of 43.5 A.

Operating temperature range from -55°C to +150°C for robust performance. ESD protection included for enhanced device reliability. Compliant with AEC-Q101 automotive standard for high quality assurance. Manufactured in Malaysia ensuring consistent quality and reliability.

This TVS Diode is widely used in industrial electronics, automotive systems, telecommunication equipment, and other sensitive devices requiring transient voltage protection. It provides a reliable safeguard solution, enhancing overall equipment reliability and lifespan.
