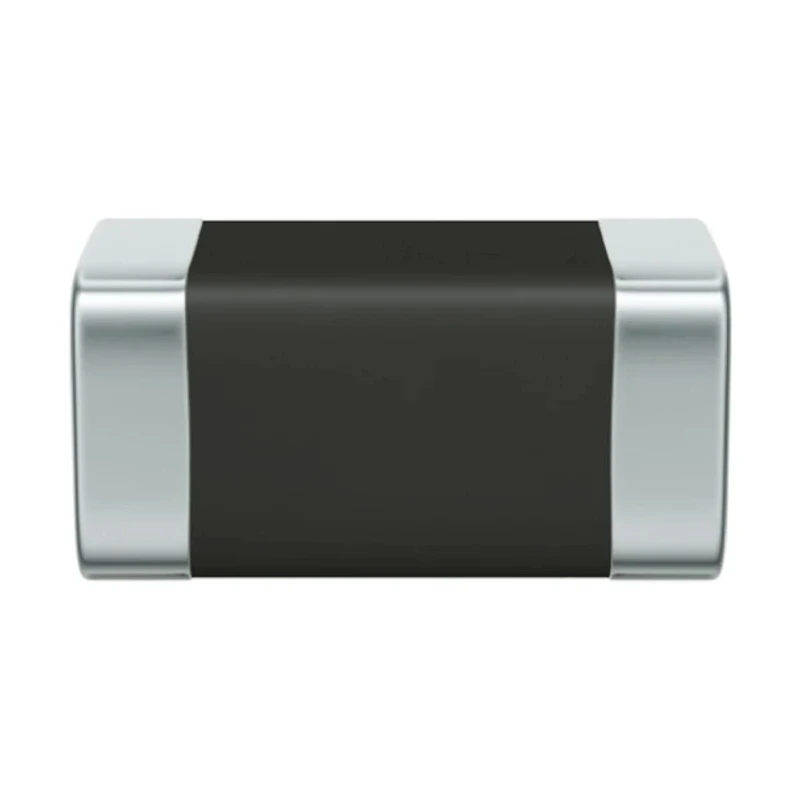

TDK CT/B Series Multilayer Ceramic Surface Mount Varistor 56 V Clamping Voltage 1 A Clamping Current B72500E0200K060

TDK B72500E0200K060 is a CT/B series multilayer ceramic varistor designed for surface mount applications in electronic components, providing transient voltage suppression and surge protection. Featuring a clamping voltage of 56 V and clamping current of 1 A, this varistor effectively protects sensitive circuits from voltage spikes and surges, making it highly suitable for use in power supply and distribution systems as well as general electronics.

The varistor is constructed from ceramic material offering excellent electrical characteristics and durability. Its compact surface mount form factor with dimensions of 1.6 mm length, 0.9 mm height, and 0.8 mm depth enables easy integration into dense circuit boards, aiding efficient space management in electronic assemblies.

Operating up to 150°C allows reliable performance in demanding thermal environments. The maximum AC voltage is rated at 20 V and maximum DC voltage at 26 V while the device can sustain a maximum surge current of 30 A and energy absorption rating of 0.2 joules, providing robust protection against transient surges.

The nickel barrier termination enhances the device’s solderability and mechanical reliability within surface mount manufacturing processes. The varistor complies with RoHS standards, supporting environmentally responsible manufacturing and product use.

The CT/B series offers a compact surface mount chip varistor solution. Constructed with ceramic material ensuring high reliability and consistency. Capable of clamping voltage at 56 V and handling a clamping current of 1 A.

Supports a maximum AC voltage of 20 V and maximum DC voltage of 26 V. Maximum surge current rating of 30 A for robust transient protection. Energy rating of 0.2 joules suitable for protecting sensitive electronic circuits.

Compact dimensions of 1.6 mm length, 0.9 mm height, and 0.8 mm depth enable integration in tight spaces. Maximum operating temperature of 150°C for stable performance under thermal stress. Nickel barrier termination improves durability and solderability in surface mount technologies.

Complies with RoHS standards, ensuring environmental safety and regulation compliance.

This multilayer varistor is widely used in industrial, electronic manufacturing, telecommunications, automotive electronics, and power management applications where protecting circuits from transient overvoltages is critical for longevity and reliability of electronic devices.
