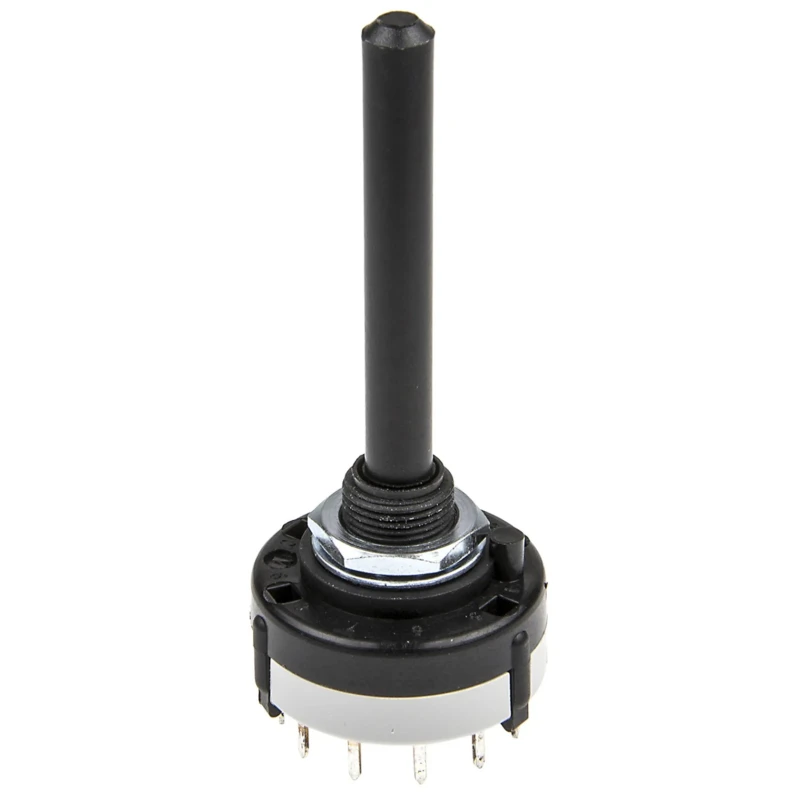

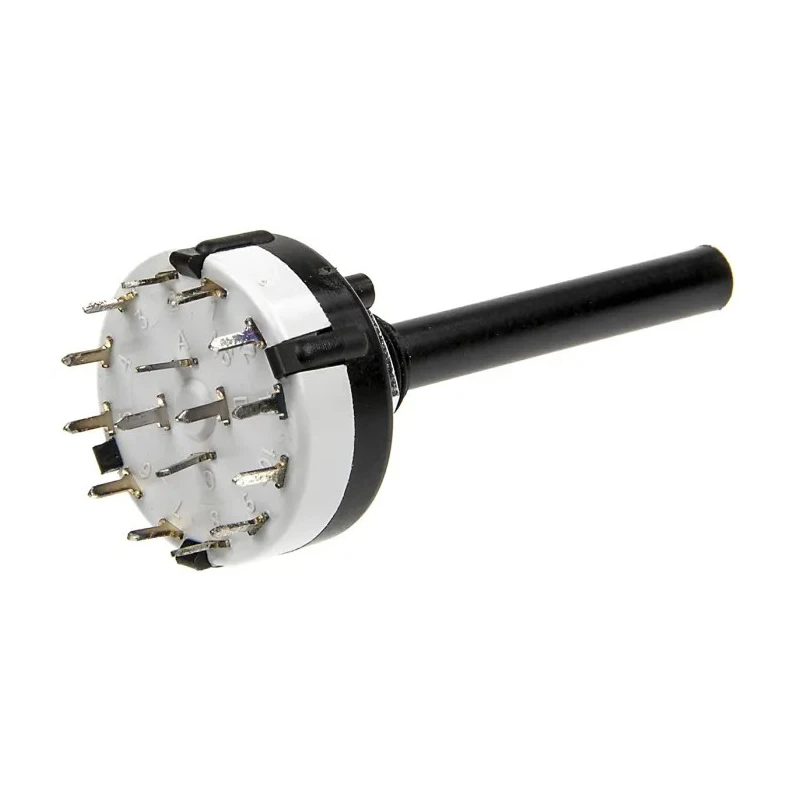

Lorlin 3 Position 4PST Rotary Switch 150mA 250V ac 24V dc Polyamide Housing Silver Actuator CK1052
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Height | 68.1mm |
| Model | CK1052 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4PST |
| Number of Positions | 3 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 4 Position 3PST Rotary Switch, 150mA, SolderBrand | Lorlin |
| C & K, 2 Position, BCD 4PDT Rotary Switch, 150 mA@ 60 V dc, Through HoleBrand | C & K |
| Lorlin, 3 Position 4P3T Rotary Switch, 150 mA @ 250 V ac, SolderBrand | Lorlin |
Key Features
- Rated for 150 mA switching current at up to 250 V AC and 24 V DC.
- Constructed with silver-plated contacts and a silver actuator for durability.
- Operates within a temperature range of -30°C to 85°C for reliable performance.
- Features a 27.5 mm diameter and depth with 68.1 mm height, suitable for compact panel mounting.
- Includes 90° angle of throw with mechanical life rated for 10,000 cycles.
- RoHS compliant and manufactured in the United Kingdom.
- Supports adjustable rotation limit stops for precise position control.
- Designed for non-shorting break-before-make (BBM) contact switching.
Product Description
Lorlin CK1052 is a high-quality rotary switch with a 3 position, 4PST (pole-single-throw) contact configuration. It is designed for PCB mounting with solder terminals and features a durable polyamide housing suitable for industrial and commercial electrical applications.
This rotary switch supports a switching current of 150 mA and can handle voltages up to 250 V AC and 24 V DC, making it ideal for control circuits requiring precise multi-position switching functionality.
The switch has a compact form factor measuring 27.5 mm in diameter and depth with a height of 68.1 mm, and a 90° angle of throw. Silver-plated contacts ensure low resistance and high reliability during operation. The actuator is finished in silver color for aesthetic and functional benefits.
Engineered for reliable long-term use, the switch has a mechanical life of 10,000 cycles and functional limits with adjustable rotation stops. It also complies with RoHS standards and is produced in the United Kingdom.
150 mA switching current rating at 250V AC and 24V DC. Polyamide housing with silver-plated contacts. 3 positions and 4 poles configuration. PCB solder terminal mount type. Mechanical endurance of 10,000 cycles with 90° angle of throw.
Operating temperature of -30°C to 85°C. Adjustable rotation limit stops for accurate switching positions. Manufactured according to RoHS compliance in the United Kingdom.
This Rotary Switch is suitable for use in various industrial automation, electrical, and electronic control systems, including instrumentation, manufacturing equipment, and process control panels. Its small size and durability make it a preferred choice for precise multi-position switching needs.
Explore more electronic switch solutions and components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a switching current of 150 mA.
This rotary switch can handle voltages up to 250 V AC and 24 V DC.
The contact configuration is 4PST (four poles, single throw).
It has a diameter and depth of 27.5 mm and a height of 68.1 mm.
The mechanical life is rated for 10,000 cycles.
It operates within a temperature range of -30°C to 85°C.
It is designed for PCB mounting with solder terminals.
Yes, it features adjustable rotation limit stops for precise position control.
The housing is constructed from polyamide.
Yes, it complies with RoHS standards.
The angle of throw is 90 degrees.
It is manufactured in the United Kingdom.
