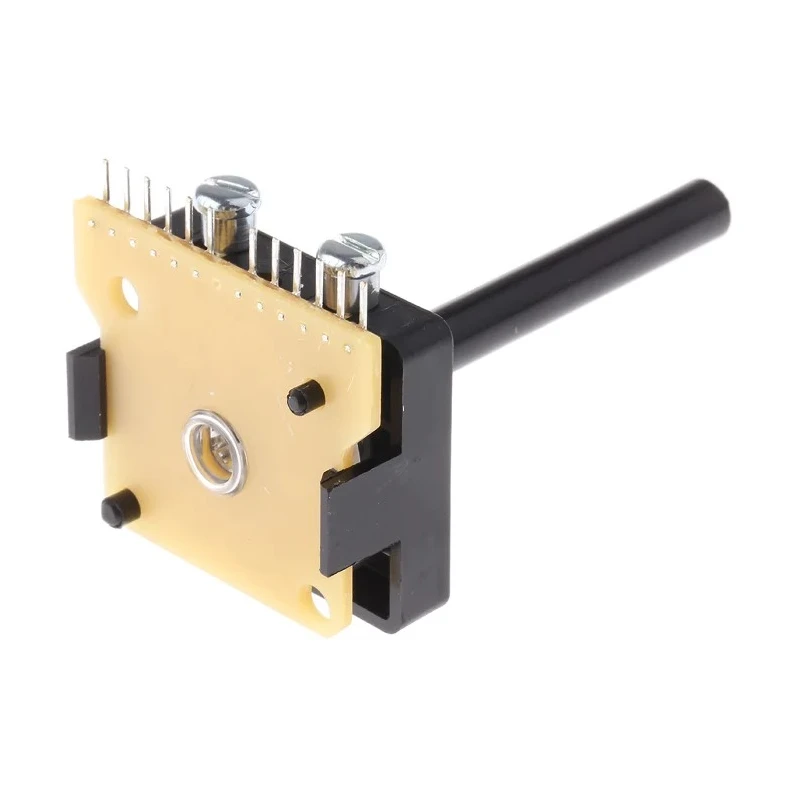

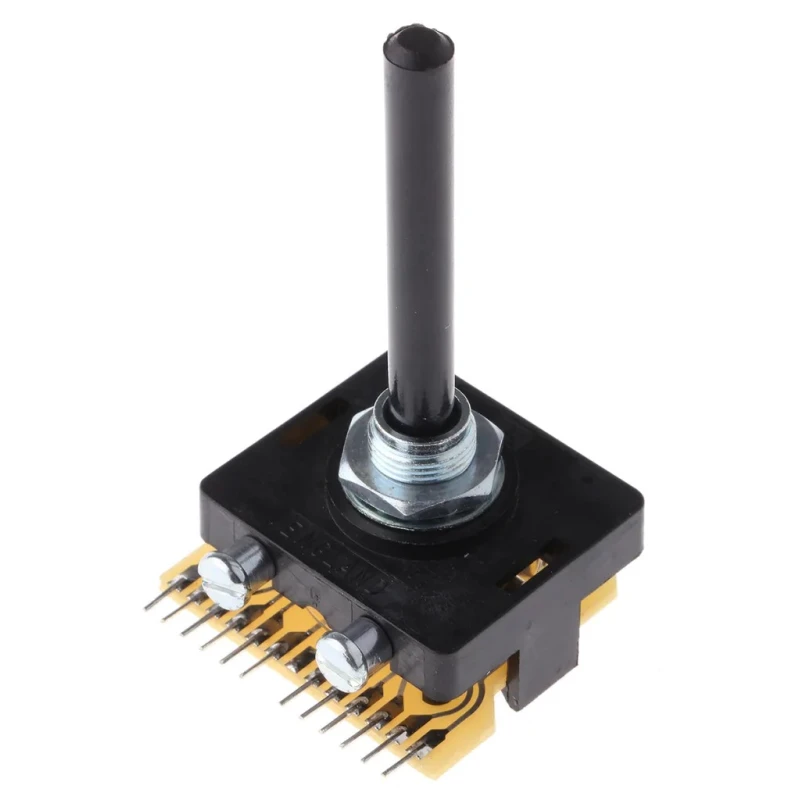

Lorlin 3 Position 3PST Rotary Switch 500mA Solder PT6595
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 14mm |
| Brand | Lorlin |
| Height | 31.4mm |
| Model | PT6595 |
| Depth | 16.65mm |
| Width | 35.25mm |
| Mount Type | PCB |
| Housing Material | Polyethylene Terephthalate |
| Series | PT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3PST |
| Number of Positions | 3 |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 500mA |
| Mechanical Life | 10000Operations |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 30 ° |
| Lorlin, 3 Position 3PST Rotary Switch, 500 mA@ 250 V, Through HoleBrand | Lorlin |
Key Features
- This rotary switch features a 3 pole single throw contact configuration.
- It supports a maximum AC voltage of 250V and a maximum operating temperature of 85°C.
- The switch has a 3 position mechanism with a 30° angle of throw for precise control.
- Constructed with a polyethylene terephthalate housing ensuring durability.
- Designed with a shaft diameter of 6mm and dimensions of 35.25mm width, 31.4mm height, and 16.65mm depth.
- The switch provides a mechanical life of 10,000 operations for reliable performance.
- Terminal type is solder for secure electrical connections on PCB mount.
- This model is compliant with RoHS standards and is manufactured in the United Kingdom.
Product Description
The Lorlin PT6595 is a high-quality 3 position 3PST rotary switch designed for PCB mounting with solder terminals, rated at 500mA and suitable for electrical and automation applications. Its robust polyethylene terephthalate housing ensures mechanical stability and resistance to standard operating environments.
This rotary switch features a 3-pole single-throw contact configuration with an off-on switch setup and a 30° angle of throw for accurate position control. It can handle up to 250V AC voltage and operates reliably within a temperature range of -30°C to 85°C, making it suitable for various industrial and laboratory environments.
The switch’s shaft diameter is 6mm, and it measures 35.25mm in width, 31.4mm in height, and 16.65mm in depth, ensuring compatibility with standard PCB layouts. It offers a long mechanical life of 10,000 operations and is supplied with a fixed non-interchangeable drive wafer for consistent function.
A spacer kit is available to maintain the 6.35mm pitch between individual wafers, allowing for customization with up to five extra wafers. Terminal spacing is designed on a 2.54mm pitch. The switch is compliant with RoHS and is manufactured in the United Kingdom, ensuring quality and environmental standards.
This rotary switch provides precise multi-position electrical control for industrial automation systems. Its solder terminal design facilitates robust and secure PCB connections. The polyethylene terephthalate housing offers insulation and mechanical protection.
Suitable for use in electrical circuits requiring up to 500mA current at 250V AC. Ensures reliable switching over a mechanical life span of 10,000 operations. Designed with adjustable stop and compatible with additional wafers for expanded functionality.
Ideal for industrial, electrical control panels, and laboratory equipment applications. Explore more high-quality Rotary Switches and electrical components tailored for engineering and manufacturing projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum AC voltage rating for this rotary switch is 250V.
This model has a current rating of 500mA.
The switch measures 35.25mm in width, 31.4mm in height, and 16.65mm in depth.
The mechanical life of this switch is rated at 10,000 operations.
The angle of throw for this rotary switch is 30°.
This model features solder terminals for secure electrical connections on PCB mounts.
The housing material of this rotary switch is polyethylene terephthalate.
The switch has a 3-pole single-throw (3PST) contact configuration.
This rotary switch operates within a temperature range of -30°C to 85°C.
Yes, this model is compliant with RoHS standards.
This rotary switch is manufactured in the United Kingdom.
Yes, a spacer kit is available to maintain the pitch between individual wafers, allowing for customization with up to five extra wafers.
