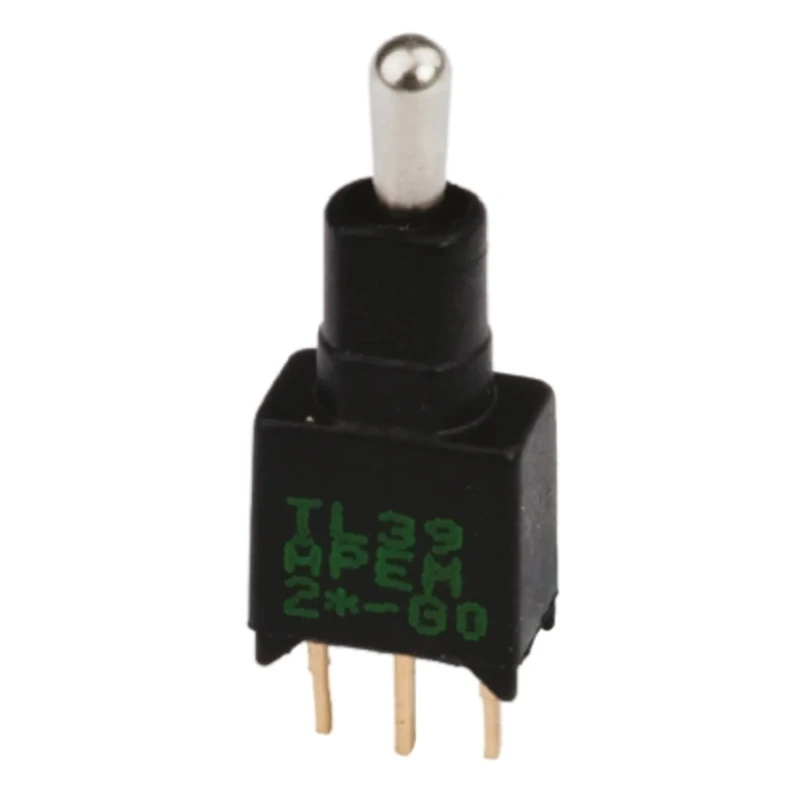

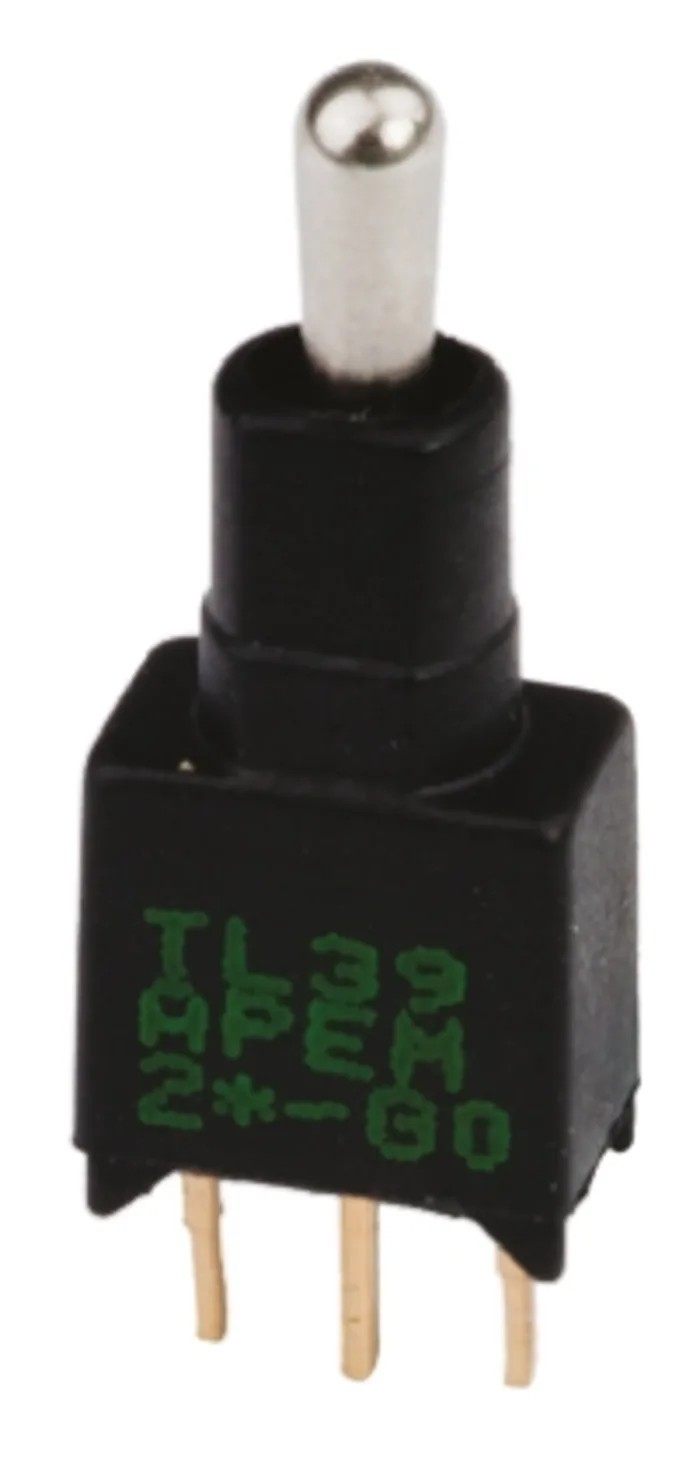

APEM Toggle Switch, PCB Mount, On-Off-On DPDT, Through Hole Terminal, 20 V dc, 20 V ac TL49P0050

Category Toggle Switch Brand APEM Condition New

Specifications

Country of Origin France
Brand APEM
Height 22.8mm
Length 9.1mm
Model TL49P0050
Width 8.1mm
Mount Type PCB
Series TL
Maximum Operating Temperature 85°C
Contact Configuration DPDT
Switch Configuration On-Off-On
Minimum Operating Temperature -30°C
Terminal type Through Hole
Number of Operations 60000 (2 pos), 30000 (3 pos)
Standards/Approvals RoHS
Switch Operation On-Off-On
Actuator Length 5.3mm
Contact DC Voltage 20V dc
Switch Contact Current 400mA
Contact AC Voltage 20V ac
Actuator Material Brass
Minimum load current 10mA at 50mV - 10μA at 5Vdc
APEM Toggle Switch, PCB Mount, On-Off-On, DPDT, Through Hole TerminalBrand APEM

Key Features

  • This toggle switch features a double-pole double-throw (DPDT) contact configuration.
  • The switch operation is On-Off-On providing versatile functionality.
  • It is PCB mountable with through hole terminals ensuring secure mechanical and electrical connection.
  • The actuator is made of brass with a length of 5.3mm for reliable manual operation.
  • It has a switch contact current rating of 400mA suitable for low power circuit use.
  • The switch supports contact voltages of 20 V dc and 20 V ac.
  • Its operating temperature range is from -30°C to 85°C, suitable for various environments.

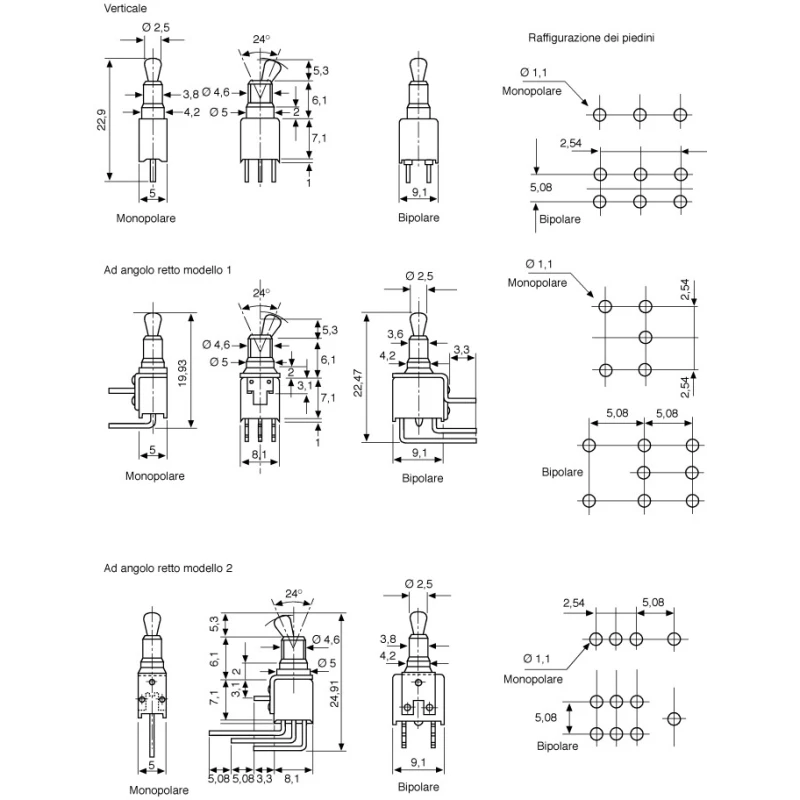

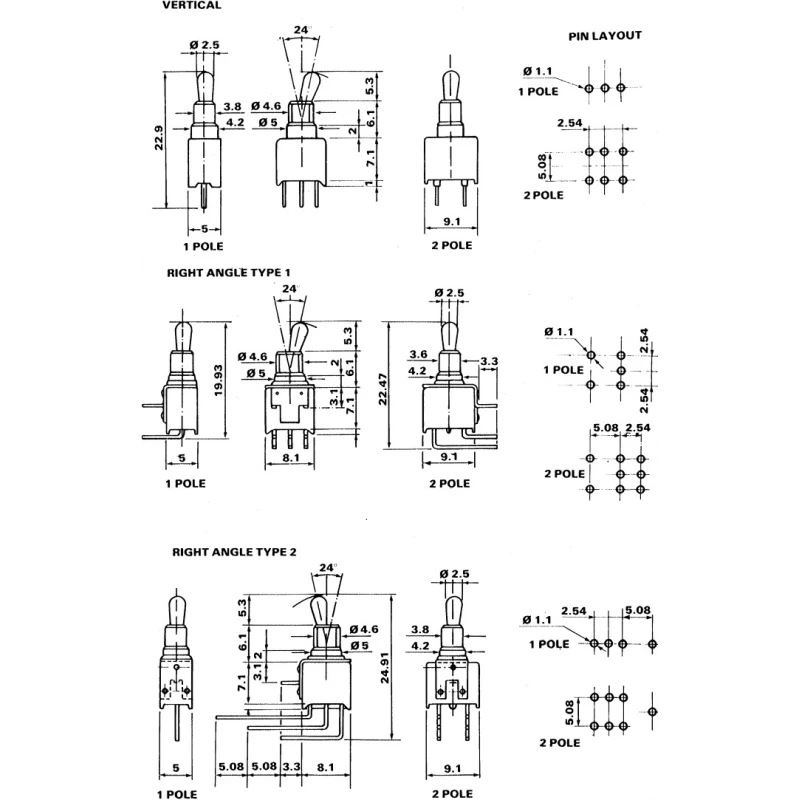

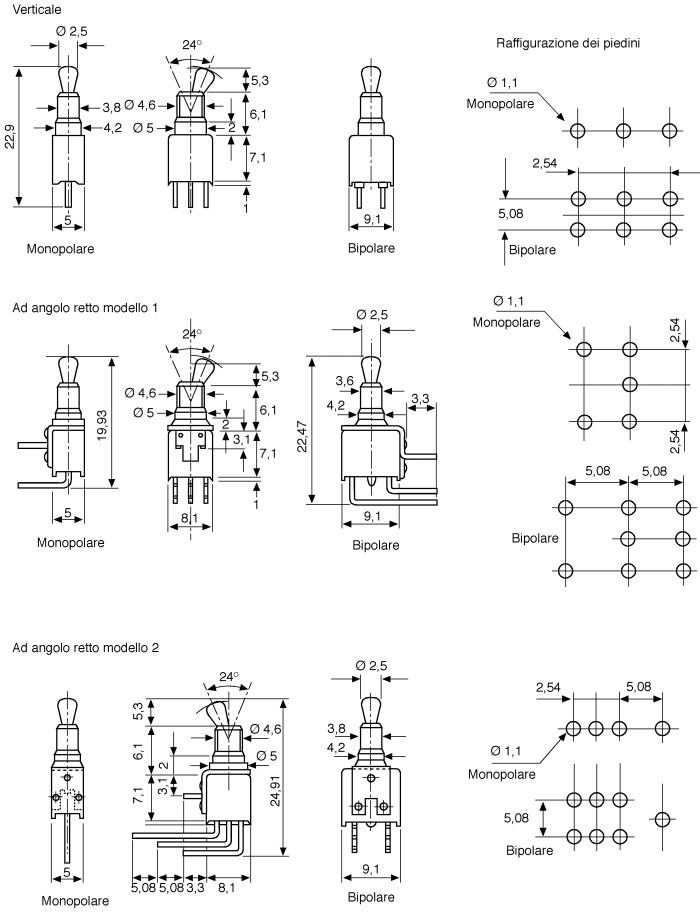

  • The compact dimensions are 22.8mm height, 9.1mm length, and 8.1mm width.

Product Description

APEM TL49P0050 Toggle Switch is a high-quality PCB mount switch designed for low level switching applications with On-Off-On operation in a DPDT (double-pole double-throw) configuration. It operates reliably at 20 V dc and 20 V ac with a contact current rating of 400mA, making it ideal for use in electronic circuits, automation systems, industrial control panels, and electrical devices.

Constructed with a brass actuator and PBT case, this toggle switch offers durability and resistance to environmental factors. The switch is totally sealed, allowing immersion cleaning and is wave solderable withstanding temperatures up to 260°C for 5 seconds. Gold plated brass terminals provide excellent conductivity and corrosion resistance.

The compact form factor with 22.8mm height, 9.1mm length, and 8.1mm width suits applications where space-saving components are required. It performs at operating temperatures from -30°C to 85°C, suitable for varied industrial and laboratory conditions.

This model has a minimum load current rating of 10mA at 50mV and 10μA at 5Vdc, supporting sensitive circuit switching. The expected mechanical lifetime is 60000 cycles for two-position use and 30000 cycles for three-position configurations, ensuring long-term reliability.

Double-pole double-throw (DPDT) contact configuration for multi-circuit control. On-Off-On switch operation enabling momentary and stable states. PCB mountable with through hole terminals for stable installation. Brass actuator and PBT case construction enhance durability.

Sealed design suitable for washing and harsh environments. Wave solderable to 260°C for 5 seconds ensuring compatibility with assembly processes. Gold plated brass terminals for corrosion resistance and reliable contact.

Compact dimensions to fit tight spaces in electronic enclosures. Wide operating temperature range from -30°C to 85°C. Designed and manufactured in France adhering to RoHS environmental standards.

This APEM Toggle Switch is widely used in industrial automation, laboratory instrumentation, electronics manufacturing, and HVAC systems for reliable manual control over circuit states. Its robust construction and precision design make it suitable for applications requiring low current switching with a compact footprint.

Discover more high reliability switches and components in the electronics category at EnvMart for your industrial and professional needs.
