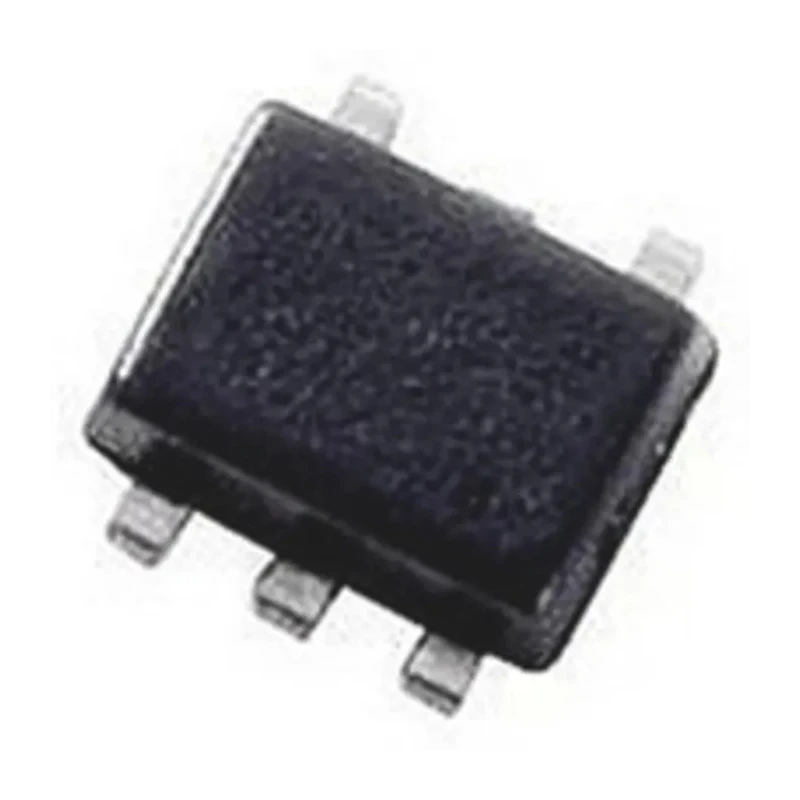

DiodesZetex 1-Input Non-Inverting Buffer, 5-Pin SOT-553, CMOS Logic, 1.65 to 5.5 V Operating Voltage 74LVC1G07Z-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 1-Input Non-Inverting Buffer, 5-Pin SOT-553, CMOS Logic, 1.65 to 5.5 V Operating Voltage 74LVC1G07Z-7

Name: DiodesZetex 1-Input Non-Inverting Buffer, 5-Pin SOT-553, CMOS Logic, 1.65 to 5.5 V Operating Voltage 74LVC1G07Z-7
Brand: DiodesZetex
SKU: 130749
Price: 0.13 USD
Availability: InStock



Category Logic Gates Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	620μm
Length	1.7mm
Model	74LVC1G07Z-7
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Output type	Open Drain
Input Type	CMOS
Maximum Operating Temperature	85°C
Package Type	SOT-553
Minimum Operating Temperature	-40°C
Operating Voltage	1.65 to 5.5 V
Pin Count	5
Number of Elements	1
Maximum Supply Voltage	5.5V
Logic Family	LVC
Logic Function	Non-Inverting
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	4ns
Maximum Low Level Output Current	32mA
Number of Inputs per Gate	1

Key Features

Operates over a wide voltage range from 1.65 to 5.5 volts.
Single gate with one input ensures simple logic buffering.
CMOS input type with compatibility for LVTTL/TTL inputs and LVCMOS outputs.
Maximum propagation delay of 4 nanoseconds at specified load capacitance.
Designed without Schmitt Trigger input for standard signal processing.
Open drain output type supports flexible logic interfacing.
Operating temperature range extends from -40°C to 85°C.
Compact SOT-553 surface-mount package with 5 pins, height of 620 micrometers, and length of 1.7 millimeters.

Product Description

The DiodesZetex 74LVC1G07Z-7 is a single 1-input non-inverting buffer utilizing low-voltage CMOS technology. This device operates efficiently over a voltage range of 1.65 to 5.5 volts, making it highly suitable for modern low-power electronic applications.

Encased in a compact 5-pin SOT-553 surface-mount package with minimal height of 620μm and length of 1.7mm, it offers convenient PCB integration with a small footprint. The device supports input types CMOS and is compatible with LVTTL/TTL inputs while outputting LVCMOS signals, ensuring broad logic compatibility.

Featuring a maximum propagation delay of just 4 nanoseconds, the buffer delivers fast and reliable signal processing capabilities, crucial for timing-sensitive digital circuits. It operates within a wide temperature range of -40°C to 85°C, suitable for industrial and commercial electronic equipment.

The 74LVC1G07Z-7 provides an open-drain output and can handle maximum output currents of ±32mA, enabling it to drive various loads and interfaces effectively. Notably, it does not include a Schmitt trigger input, which is ideal for standard buffering applications without additional hysteresis requirements.

Operates between 1.65 to 5.5 volts supply voltage. Open drain output configuration. Compact 5-pin SOT-553 surface mount package. High-speed operation with 4 nanoseconds max propagation delay. Wide operating temperature range from -40ºC to 85ºC.

Compatible with LVTTL/TTL inputs and LVCMOS outputs. Maximum output currents of -32mA (high level) and 32mA (low level). Single gate, single input non-inverting buffer function.

This logic buffer is ideal for electronics, semiconductor device applications, and signal conditioning where fast and reliable digital logic buffering is required. Its small size and low power consumption make it suitable for portable and embedded systems, including industrial, automotive, and communication devices.

Category: Logic Gates within Semiconductor and Electronics & Electricals sectors in industrial and electronic component applications. Explore more from DiodesZetex and related logic ICs at EnvMart for comprehensive semiconductor solutions.
