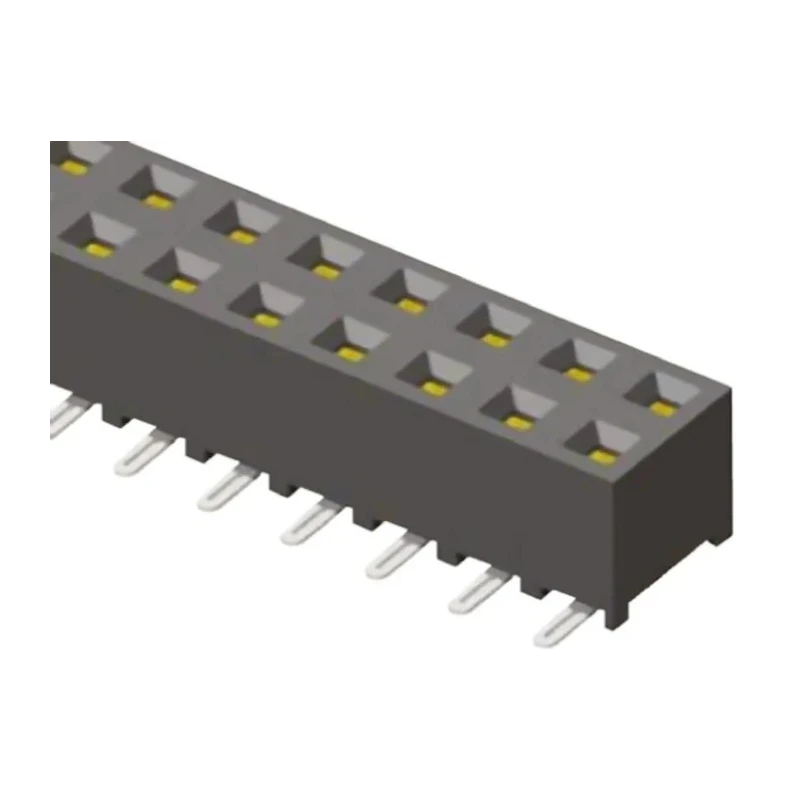

Samtec SMM Series Straight Surface PCB Socket, 30-Contact, 2 Row, 2 mm Pitch Solder SMM-115-02-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.9A |
| Temperature range | -55 → 125 °C |
| Model | SMM-115-02-S-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 1.27mm |
| Insulator Material | Black LCP |
Key Features
- Supports 3.9 A current for efficient electrical performance.
- Housing made of durable Liquid Crystal Polymer for enhanced stability.
- Operates at a voltage of 350 V ensuring robust application use.
- Compact 2-row design with 1.27 mm row pitch optimizing PCB space.
- Gold plated beryllium copper alloy contacts for superior conductivity and corrosion resistance.
- Minimum and maximum operating temperature range from -55°C to 125°C for wide environmental tolerance.
- Surface mount with straight orientation for easy PCB assembly.
- Female contact gender suitable for specific board-to-board connection standards.
Product Description
Samtec SMM-115-02-S-D is a high-quality Straight Surface PCB Socket designed for board-to-board connectivity applications. This socket features 30 contacts arranged in 2 rows at a 2 mm pitch, providing a compact and reliable electrical connection.
The socket is constructed with a housing made of robust Liquid Crystal Polymer (LCP) and features Tiger Eye contacts with 0.76 μm gold plating on the contact area to ensure excellent conductivity and resistance to corrosion. The PCB tails have matte tin plating to facilitate soldering processes.
Designed for surface mount technology (SMT), it has a straight orientation that aligns perfectly on PCBs. The socket supports a current rating of 3.9 A and operates up to 350 V, making it suitable for various electronic assemblies requiring reliable power and signal transmission.
The temperature range of -55°C to 125°C allows it to perform effectively in harsh environments, making it ideal for industrial, electronic manufacturing, telecommunications, and other demanding sectors.
Its compact 2-row layout with 1.27 mm row pitch optimizes PCB real estate. The female contacts use beryllium copper alloy, plated with gold for enhanced durability and electrical reliability. The black LCP insulator provides excellent electrical insulation and mechanical support.
Supports 3.9 A current for high-performance applications. Durable Liquid Crystal Polymer housing ensures stability and longevity. Operates safely at a voltage up to 350 V. Compact 2-row, 30-contact configuration with 2 mm pitch.
Gold-plated beryllium copper contacts for exceptional conductivity. Wide operating temperature range from -55°C to 125°C. Surface mount straight orientation suitable for SMT processes. Black LCP insulator enhances durability and insulation.
Designed for board-to-board connection systems. Set contains a single Samtec SMM Series Straight Surface PCB Socket optimized for board-to-board SMT connectivity tasks.
This product is ideal for use in electronics manufacturing, industrial instrumentation, telecommunications hardware, and other applications requiring compact, durable, and reliable PCB Sockets.
Explore more electronic components and PCB connectors in EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3.9 A, making it suitable for high-performance applications.
The socket operates safely at a voltage of up to 350 V, ensuring reliable performance in various applications.
It has a wide operating temperature range from -55°C to 125°C, allowing it to function effectively in harsh environments.
The housing is constructed from Liquid Crystal Polymer (LCP), providing enhanced stability and durability.
This model features 30 contacts arranged in a compact 2-row configuration.
The contact pitch for this model is 2 mm, with a row pitch of 1.27 mm.
It uses a solder termination type, suitable for surface mount technology (SMT) applications.
The contacts are made from beryllium copper alloy, which is gold-plated for superior conductivity and corrosion resistance.
This socket features a straight orientation, which aligns well on PCBs for easy assembly.
It is designed for board-to-board connection systems and is ideal for use in electronics manufacturing and telecommunications hardware.
The country of origin for this product is India.
