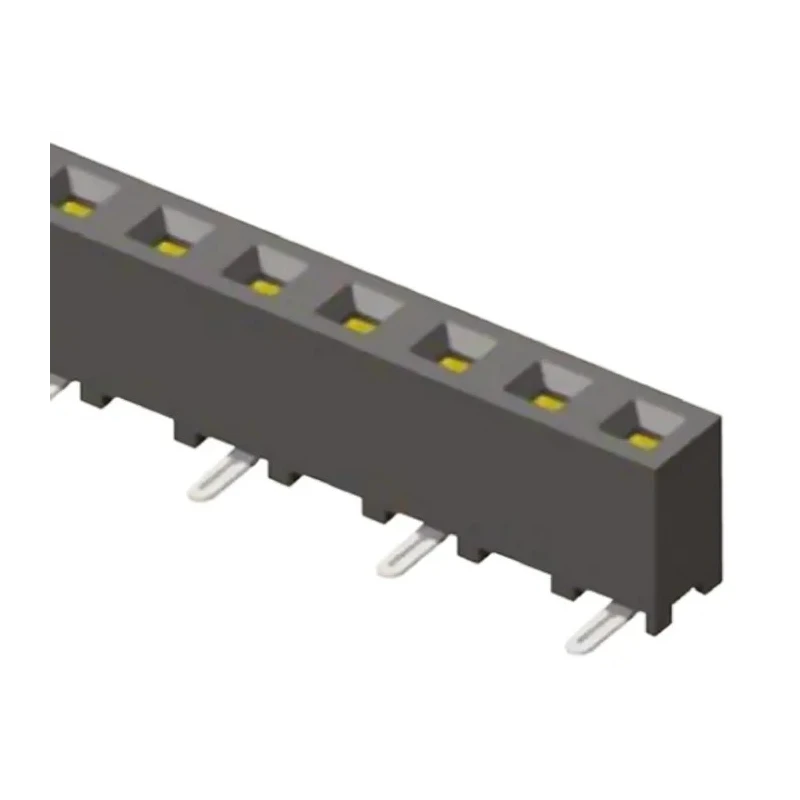

Samtec SMM Series Straight Surface PCB Socket, 4-Contact, 1 Row, 2 mm Pitch, 3.9A, 350V, LCP Housing SMM-104-02-S-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.9A |
| Temperature range | -55 → 125 °C |
| Model | SMM-104-02-S-S |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Features a single row with 4 contacts for efficient PCB connection.
- Constructed with Liquid Crystal Polymer housing ensuring durability.
- The contacts are made of beryllium copper alloy with 0.76 µm gold plating for superior conductivity.
- Operates reliably in temperatures from -55°C up to 125°C.
- Designed with Tiger Eye contacts and matte tin plating on PCB tails for secure soldering.
- Supports board-to-board system with straight orientation and surface mount technology.
- Suitable for industrial electronics requiring stable electrical connections.
- Meets standard specifications without additional certifications.
Product Description
Samtec SMM-104-02-S-S Straight Surface PCB Socket is a high-quality electronic component designed for board-to-board connection applications. This socket features 4 female contacts arranged in a single row with a 2 mm pitch, enabling precise and reliable electrical connections for industrial electronics and PCB assemblies.
The socket uses a Liquid Crystal Polymer (LCP) housing that offers excellent mechanical strength and thermal stability within the operating temperature range of -55°C to 125°C. The contacts are crafted from beryllium copper alloy and plated with 0.76 µm gold in the contact area to provide superior conductivity and resistance to corrosion. The PCB tails have a matte tin plating to facilitate optimal soldering performance.
Designed for surface mount technology (SMT), this socket supports straight orientation and works within a voltage rating of 350V and a current rating of 3.9A. The Tiger Eye contact design enhances connection reliability and durability over time.
This product is ideal for use in electronics manufacturing, industrial automation, instrumentation, and test equipment. Its robust design ensures stable performance under harsh environmental conditions.
Single row, 4-contact PCB socket with 2 mm pitch. Durable Liquid Crystal Polymer housing with black insulator material. Gold-plated beryllium copper alloy contacts for excellent conductivity. Operating temperature range from -55°C to 125°C.
Supports board-to-board straight surface mounting system. Matte tin plating on PCB tails for reliable solder joints. Rated for 3.9A current and 350V voltage. Suitable for industrial, laboratory, and manufacturing electronics.
No specific certifications included. Explore the Samtec range of PCB Sockets on EnvMart for reliable, high-performance electronic components engineered for advanced connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB socket is 3.9A.
This model has a voltage rating of 350V.
It operates reliably within a temperature range of -55°C to 125°C.
The housing is made from Liquid Crystal Polymer (LCP), which provides excellent mechanical strength and thermal stability.
This socket features 4 female contacts arranged in a single row.
It uses solder termination for secure connections.
The pitch of the contacts is 2 mm.
The contacts are made of beryllium copper alloy, which is plated with 0.76 µm gold for superior conductivity.
It supports surface mount technology (SMT) with straight orientation.
It is suitable for use in electronics manufacturing, industrial automation, instrumentation, and test equipment.
This product does not include specific certifications but meets standard specifications for its category.
The country of origin for this PCB socket is India.
