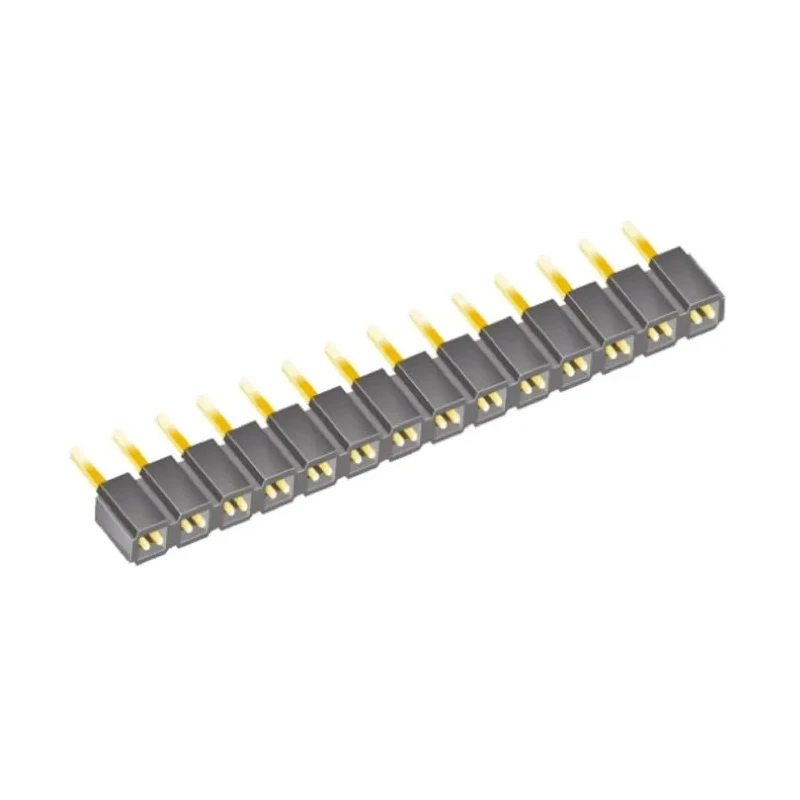

Samtec SLW Series Straight Through Hole PCB Socket, 14-Contact, 1 Row, 2.54 mm Pitch, 7.1A, 550V SLW-114-01-G-S

Free Delivery in India | Lowest Global Shipping Charges

Samtec SLW Series Straight Through Hole PCB Socket, 14-Contact, 1 Row, 2.54 mm Pitch, 7.1A, 550V SLW-114-01-G-S

Name: Samtec SLW Series Straight Through Hole PCB Socket, 14-Contact, 1 Row, 2.54 mm Pitch, 7.1A, 550V SLW-114-01-G-S
Brand: Samtec
SKU: 130549
Price: 3.26 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	550V
Brand	Samtec
Orientation	Straight
Current	7.1A
Model	SLW-114-01-G-S
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Bronze
Series	SLW
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	10mm
TLW series low profile square post headers	see stock number 765-6114 typically
TSM series square post headers	see stock number 765-6423 typically
TSW series square post headers	see stock number 767-0820 typically

Key Features

Operates with a current rating of 7.1A and voltage up to 550V.
Features a low profile design with a 10mm stacking height for compact PCB layouts.
Constructed with a black glass filled polyester housing ensuring durability.
Contact material is bronze with 0.51 μm gold plating on contact surfaces for reliability.
Solder termination with a 3.25mm tail designed for through-hole mounting.
Supports operating temperatures from -55°C up to 125°C for wide industrial use.
Designed with Tiger Buy tuning fork style contacts for secure, low resistance connections.
Compatible with TLW, TSM, and TSW series square post headers for system flexibility.

Product Description

Samtec SLW-114-01-G-S is a straight through hole PCB socket designed for 14-contact single row connections with a 2.54 mm pitch, delivering a reliable board-to-board interconnection solution. Its low profile 10 mm stacking height enables integration in compact electronic assemblies.

The housing is manufactured from black glass filled polyester, offering mechanical strength and thermal stability. Contacts are precision engineered from bronze with 0.51 μm gold plating on the contact surfaces and gold flash on the balance to provide excellent conductivity and corrosion resistance.

Operating temperature ranges from -55°C to 125°C, which makes it suitable for diverse industrial and electronic applications including consumer electronics, telecommunications, medical devices, and instrumentation where high reliability is critical.

The solder tail length of 3.25 mm suits through-hole PCB mounting techniques ensuring ease of assembly and strong mechanical retention. Samtec's SLW series features tuning fork style Tiger Buy contacts to ensure robust connections with low insertion force, enhancing device longevity and performance.

Operates with 7.1A current and 550V voltage rating. Low profile 10mm stacking height compatible with compact circuit designs. Durable black glass filled polyester housing material. Bronze contact material with gold plating improves conductivity.

Wide temperature range from -55°C to 125°C supports challenging environments. Compatible with TLW, TSM and TSW series headers for versatile configurations. Tuning fork style Tiger Buy contacts minimize contact resistance.

Designed for through-hole solder termination, ensuring secure PCB integration.

This PCB Socket is ideal for industrial, laboratory, manufacturing, and electronic equipment where reliable, high-performance board-to-board connections are essential. EnvMart category browsing can assist in finding complementary PCB connectors and electronic components.
