Samtec IPT1 Series Shrouded Straight Through Hole PCB Header 10 Contacts 2.54 mm Pitch 2 Row 550, 777V

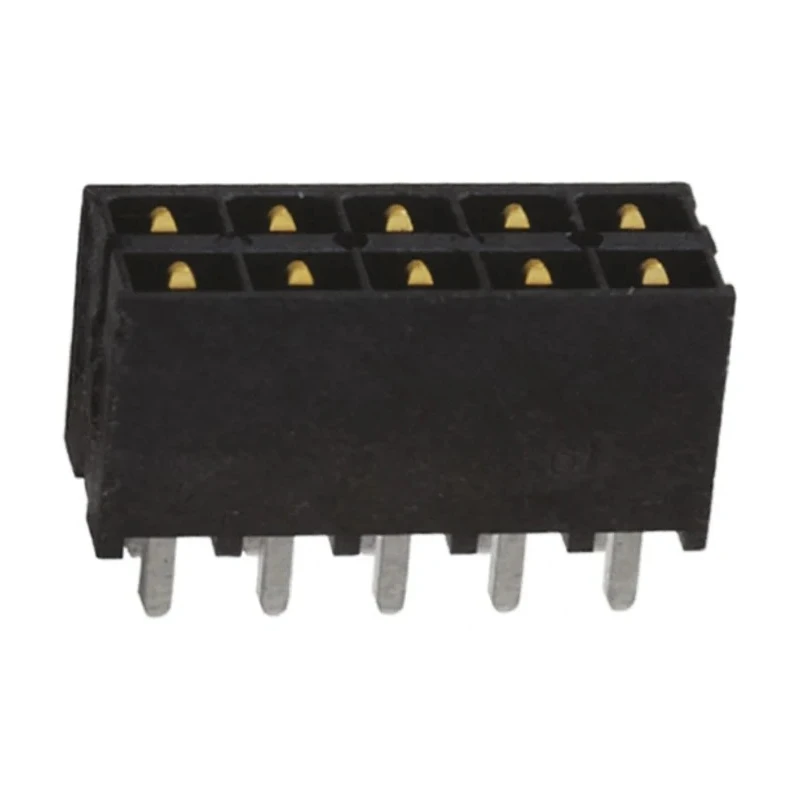

Samtec IPT1 IPT1-105-01-L-D is a high-quality shrouded straight through hole PCB header designed for reliable electrical connections in electronic and industrial equipment. Featuring a 2.54 mm pitch and 10 gold-plated phosphor bronze contacts arranged in 2 rows, this header supports current ratings up to 9A and voltages of 550V and 777V, ensuring robust power and signal transmission.

The housing is made from durable Liquid Crystal Polymer (LCP), providing mechanical stability and excellent thermal resistance with an operating temperature range from -55°C to 125°C. Its through-hole mount type with solder termination and male contacts facilitates secure board mounting and reliable electrical contact.

Designed specifically as a board-to-board connector, the shrouded design enhances durability by protecting contacts from damage and preventing incorrect mating, which is critical in industrial and manufacturing environments. This makes the IPT1-105-01-L-D header suitable for use in electronics manufacturing, power devices, automation systems, and PCB assembly lines.

The IPT1 series headers mate with compatible IPS1 series shrouded sockets, supporting flexible and modular system integration. Their compact size and rugged material construction enable long service life even in demanding conditions such as temperature fluctuations and mechanical stress.

The header features a double row of 10 individually shrouded gold-plated contacts. Housing material of Liquid Crystal Polymer ensures stability and resistance to heat and chemicals. Rated for up to 9A current and high voltage handling at 550V and 777V.

Operating temperature range allows use in extreme industrial environments. Through-hole mount with solder termination provides secure installation on PCBs. The male connector gender suits board-to-board connection use cases.

Shrouded design offers protection and safety during installation and operation.

This product aligns with the needs of electronics engineers, industrial manufacturers, and assembly specialists seeking a dependable PCB header for power and signal routing applications. Samtec’s IPT1 series is trusted for quality and performance in power connector solutions.
