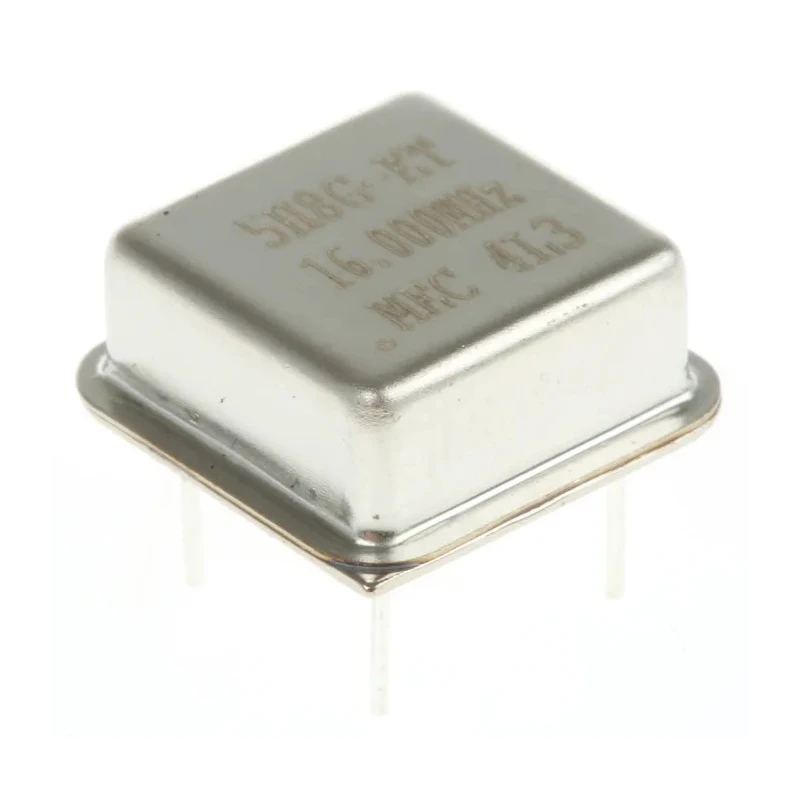

MERCURY 16MHz Clock Oscillator ±50 ppm HCMOS TTL 8-Pin PDIP 5H8ET-16.000

The MERCURY 5H8ET-16.000 is a high-precision 16MHz clock oscillator designed for use in electronic timing and frequency control applications. Featuring excellent frequency stability of ±50 ppm, this oscillator provides consistent output suitable for industrial, laboratory, and manufacturing electronics.

Housed in an industry-standard 8-pin dual in-line package (PDIP), this device facilitates through-hole mounting on printed circuit boards for robust mechanical and electrical connections. The oscillator supports both HCMOS and TTL output levels, making it compatible with a wide range of digital circuits.

Operating at a maximum supply voltage of 5 V, the oscillator adheres to low power requirements, while its wide operating temperature range from -40°C to 85°C allows deployment in various environmental conditions including harsh industrial settings.

Its compact size, measuring 12.8 mm in length and width with a height of 5.08 mm, makes it suitable for space-constrained applications. The oscillator is RoHS compliant, ensuring it meets modern environmental and safety standards.

This MERCURY oscillator is manufactured in Taiwan, Province of China, and belongs to the H8 series, known for reliable frequency generation in timing-critical electronics applications.

Provides a stable 16MHz clock output frequency for timing applications. Frequency stability of ±50 ppm ensures consistent performance under operating conditions. Industry-standard 8-pin Dual-In-Line Package (PDIP) for easy through-hole PCB mounting.

Output level supports both HCMOS and TTL logic standards. Operates at a maximum supply voltage of 5V for low power consumption. Wide operating temperature range from -40°C to 85°C ensures reliability in diverse environments.

Compact dimensions: 12.8 mm length, 12.8 mm width, and 5.08 mm height. Conforms to RoHS standards for environmental compliance.

This Crystal Oscillator is suited for electronics manufacturing, industrial automation, laboratory instrumentation, and embedded system timing applications. Explore the Electronics Components category at EnvMart for similar advanced timing devices by trusted manufacturers.
