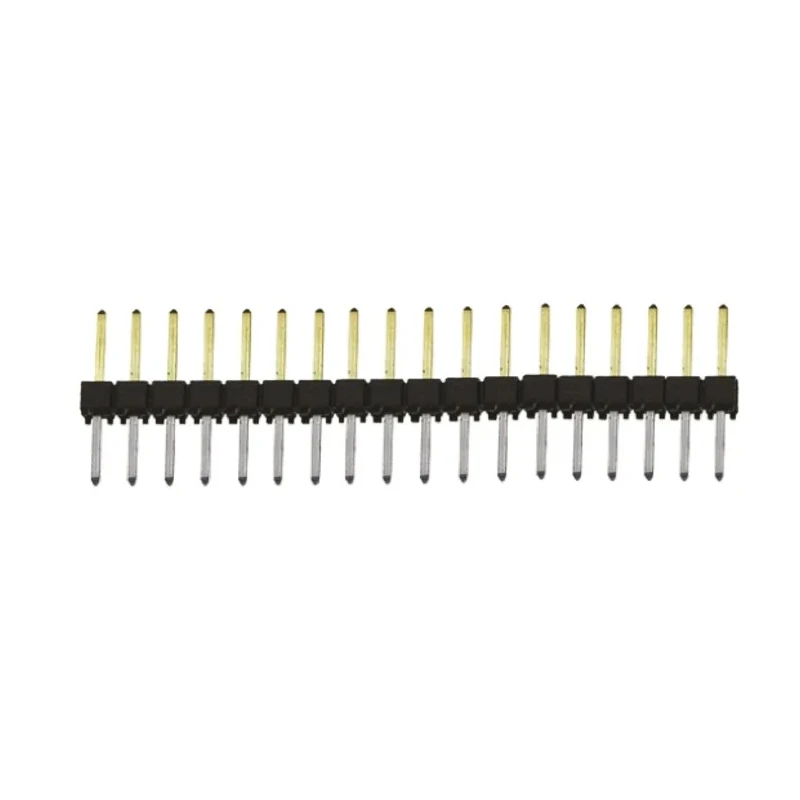

Samtec TSW Series Straight Through Hole Pin Header, 18 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TSW-118-08-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-118-08-L-S |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 5.08mm |
| Mating Pin Length | 5.84mm |
Key Features
- Constructed with gold-plated phosphor bronze contacts for excellent conductivity.
- Features a glass filled polyester housing ensuring durability and stability.
- Supports a maximum current of 7.6A and voltage rating of 550V for efficient power handling.
- Designed with a 5.08 mm tail pin length and 5.84 mm mating pin length for secure soldering.
- Operates reliably within a wide temperature range from -55°C to 125°C.
- Unshrouded, straight orientation for easy through-hole mounting on PCBs.
- Suitable for industrial electronic applications requiring robust connector performance.
Product Description
Samtec TSW-118-08-L-S is a high-quality straight through hole pin header featuring 18 male contacts arranged in a single row with a 2.54 mm pitch. This unshrouded pin header is designed with a glass filled polyester housing and gold-plated phosphor bronze contacts, providing excellent durability, corrosion resistance, and superior electrical performance.
It supports a current rating of 7.6 amperes and a voltage rating of 550 volts, suitable for demanding board-to-board and wire-to-board connector applications. The tail pin length of 5.08 mm and mating pin length of 5.84 mm ensure secure solder joints and reliable connectivity on printed circuit boards.
The operating temperature range from -55°C to 125°C allows for robust usage in industrial, electronic manufacturing, automation, and HVAC control systems. The single row, straight orientation and unshrouded design provide easy installation and compatibility with multiple socket types including standard box and low profile sockets.
Constructed with gold-plated phosphor bronze contacts for excellent conductivity. Glass filled polyester housing ensures durability and stability. Supports a maximum current of 7.6A and voltage rating of 550V. Tail pin length of 5.08 mm and mating pin length of 5.84 mm for secure soldering.
Wide operating temperature range from -55°C to 125°C. Unshrouded and straight orientation facilitates versatile PCB mounting. Ideal for industrial electronics, communication, and control applications.
These connectors ensure reliable, high-quality connections vital for electronic components in industrial, laboratory, manufacturing, and electrical engineering environments. Samtec's TSW series pin headers deliver consistent performance with proven materials and design standards.
Explore the full range of PCB connectors and electronic components available to meet the rigorous requirements of modern industrial applications at EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 7.6A and a voltage rating of 550V, making it suitable for efficient power handling in various applications.
The contacts are made of gold-plated phosphor bronze, while the housing is constructed from glass filled polyester, ensuring durability and excellent conductivity.
This model features a pitch of 2.54 mm and includes 18 male contacts arranged in a single row.
It operates reliably within a wide temperature range from -55°C to 125°C, suitable for industrial applications.
The tail pin length is 5.08 mm and the mating pin length is 5.84 mm, designed for secure soldering on PCBs.
This pin header is designed for through-hole mounting, facilitating easy installation on printed circuit boards.
It features a straight orientation, which aids in straightforward through-hole mounting on PCBs.
This model is unshrouded, allowing for versatile compatibility with various socket types.
It is suitable for board-to-board and wire-to-board connector applications, making it versatile for different setups.
This pin header belongs to the TSW series, known for its reliable performance in electronic applications.
The country of origin for this pin header is India.
It uses a solder termination type, ensuring secure connections on printed circuit boards.
