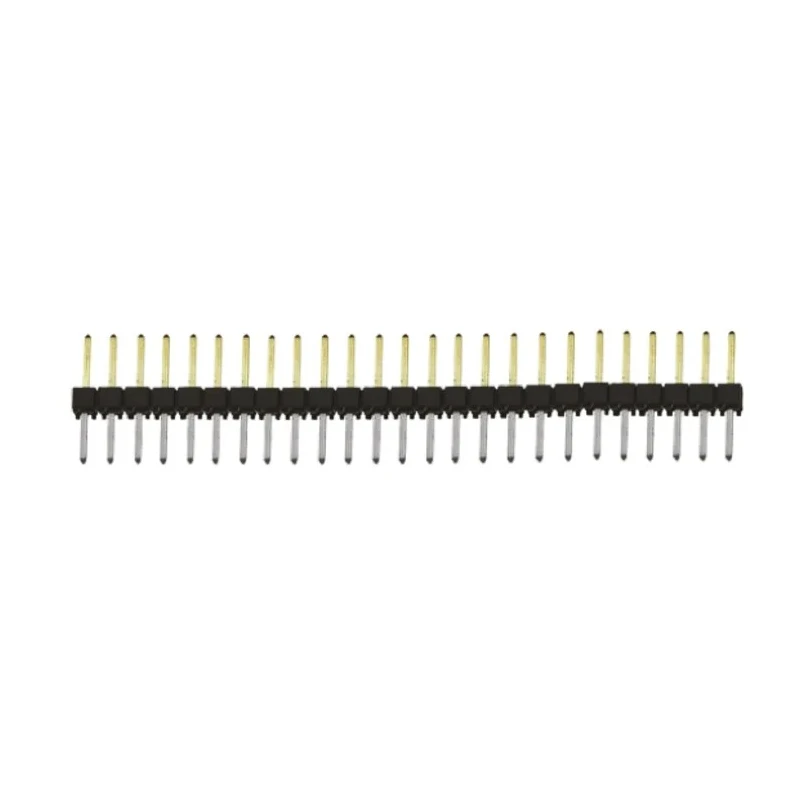

Samtec TSW Series Straight Through Hole Pin Header, 25 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TSW-125-08-L-S

Samtec TSW-125-08-L-S is a high-quality PCB straight through-hole male pin header designed for electronic assembly applications requiring reliable board-to-board and wire-to-board connectors. This pin header is part of the TSW series offering a 2.54 mm pitch and a single row of 25 contacts. The housing is made of black glass-filled polyester, providing excellent mechanical strength and electrical insulation.

The contacts are fabricated from phosphor bronze and plated with gold to ensure superior conductivity and resistance against corrosion. The connector supports current ratings up to 7.6 amperes and voltage ratings up to 550 volts, which makes it appropriate for a wide range of industrial, commercial, and electronic manufacturing uses.

Operating temperature ranges from -55°C to 125°C, ensuring stable performance under harsh environmental conditions. The product features a 5.08 mm tail pin length and 5.84 mm mating pin length designed for precise soldering and robust mechanical connection.

This unshrouded straight orientation header is widely compatible with industry-standard Samtec sockets such as BCS, CES, SLW, SSM, SSQ, and SSW series, enhancing design flexibility and ease of integration in complex printed circuit board assemblies.

Durable black glass-filled polyester housing enhances insulation and mechanical stability. Gold-plated phosphor bronze contacts for high conductivity and corrosion resistance. Supports 7.6A current and 550V voltage for versatile applications.

Works in temperatures from -55°C to 125°C for dependable operation. Single-row, 25 contacts with 2.54 mm pitch for standardized PCB layouts. Tail pin length of 5.08 mm ensures secure solder connection. Compatible with multiple Samtec socket headers for flexible mating options.

This Samtec pin header is ideal for use in industrial electronics manufacturing, communication equipment assembly, computer hardware, and other applications requiring reliable and precise electrical connections. It aligns with industrial standards and is engineered for high performance and endurance.
