Samtec TSW Series Straight Through Hole Pin Header 18 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-109-14-L-D

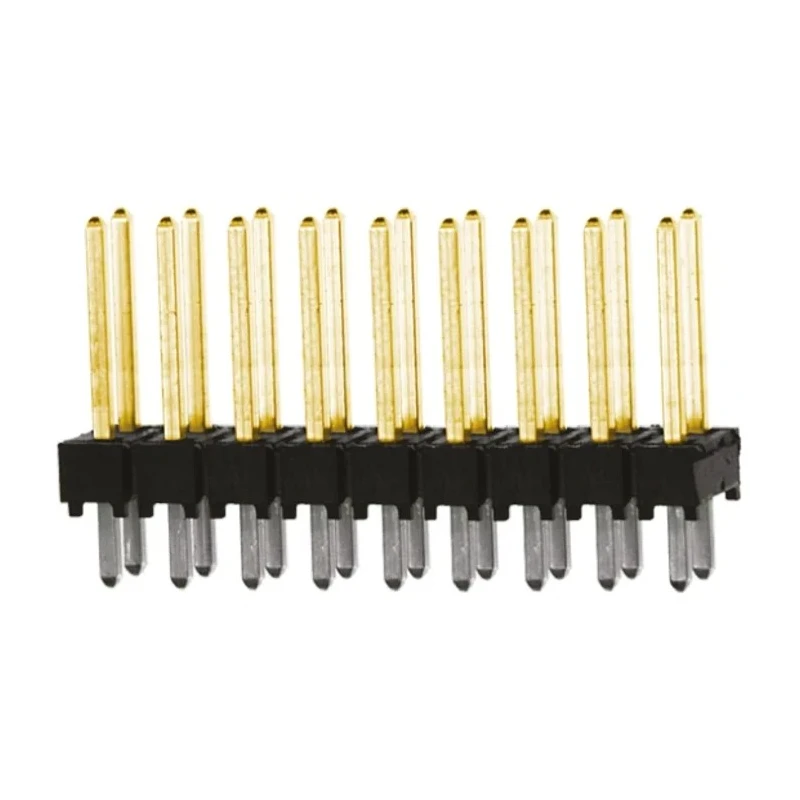

Samtec TSW-109-14-L-D is a high-quality pin header from the TSW Series designed for through hole mounting applications. This component features 18 male contacts arranged in 2 rows with a precise 2.54 mm pitch. The housing is constructed from robust glass filled polyester material, providing both mechanical strength and electrical insulation suitable for demanding environments.

The contacts are made of phosphor bronze with gold plating, ensuring excellent conductivity and corrosion resistance over extended use. Rated for 7.6 amperes and 550 volts, this header supports reliable connections in a wide range of electronic devices including PCB assemblies and wire interconnections.

Operating temperature ranges from -55°C to 125°C allow usage in varied industrial and commercial environments. The straight orientation and through hole mounting type ensure secure PCB attachment and ease of soldering.

The tail pin length of 2.79 mm and mating pin length of 8.13 mm match common industry standards for compatibility with various socket types. Its unshrouded design facilitates straightforward mating and versatility in board-to-board and wire-to-board connector systems.

Typical applications include electronic equipment manufacturing, industrial control systems, communication devices, and instrumentation where robust and reliable PCB connections are essential.

The header housing is made of glass filled polyester providing durability. Phosphor bronze contacts are gold plated for signal integrity. Through hole mount and straight orientation enable secure and reliable PCB connections.

Rated for 7.6A and 550V with operating temperatures from -55°C to 125°C. Compatible with a variety of standard socket strips and connectors. Unshrouded design simplifies board-to-board and wire-to-board interfacing. Explore more Samtec electronic components and PCB Headers at EnvMart for superior quality and performance.
