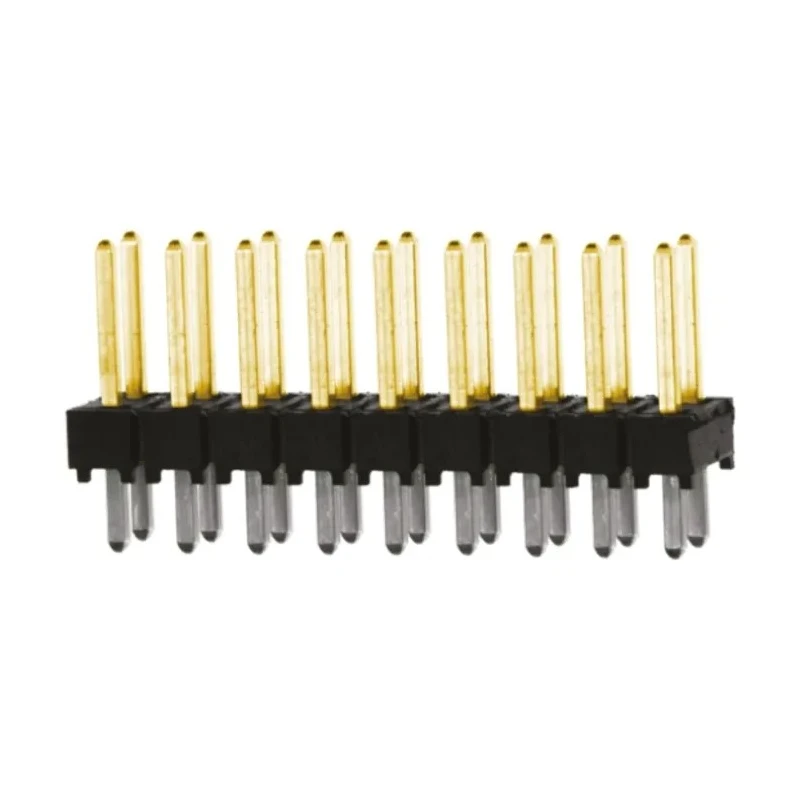

Samtec TSW Series Straight Through Hole Pin Header 18 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-109-07-L-D

Samtec TSW-109-07-L-D is a high-performance straight through hole pin header designed with 18 male contacts arranged in 2 rows on a 2.54 mm pitch. This unshrouded connector is made for board-to-board and wire-to-board applications, providing secure and reliable electrical connections.

The contact material is phosphor bronze with gold plating, enhancing conductivity and protecting against corrosion. The polymer housing ensures insulation and mechanical stability while tolerating operating temperatures from -55°C up to 125°C.

This pin header supports a current rating of 7.6 amperes and a voltage rating of 550 volts, making it suitable for various industrial electronics and control equipment. The solder termination with a 2.54 mm tail pin length allows for robust through-hole PCB mounting.

The TSW series provides a range of configurations and terminal heights; this model features a mating pin length of 5.84 mm to facilitate secure connections. Although no formal approvals are listed, the connector is engineered for dependable performance in demanding environments such as industrial, manufacturing, and electrical assembly.

The connector mates with multiple Samtec socket types, increasing its versatility. Its compact size and precise pitch spacing optimize PCB layout and electrical integrity for custom circuit designs.

Features a straight, unshrouded design suitable for board-to-board and wire-to-board connections. Constructed with phosphor bronze contacts plated in gold for enhanced conductivity and corrosion resistance. Operates within a temperature range from -55°C to 125°C ensuring durability under varied conditions.

Supports a current rating of 7.6A and voltage of up to 550V. Housing made from durable polymer material providing insulation and stability. Termination is solder type with a tail pin length of 2.54 mm for easy PCB mounting.

Compact 18 contact, 2-row configuration with a pitch of 2.54 mm. Suitable for industrial, manufacturing, electronics, and electrical applications. Designed for reliable mating with compatible Samtec sockets and low profile connectors.
