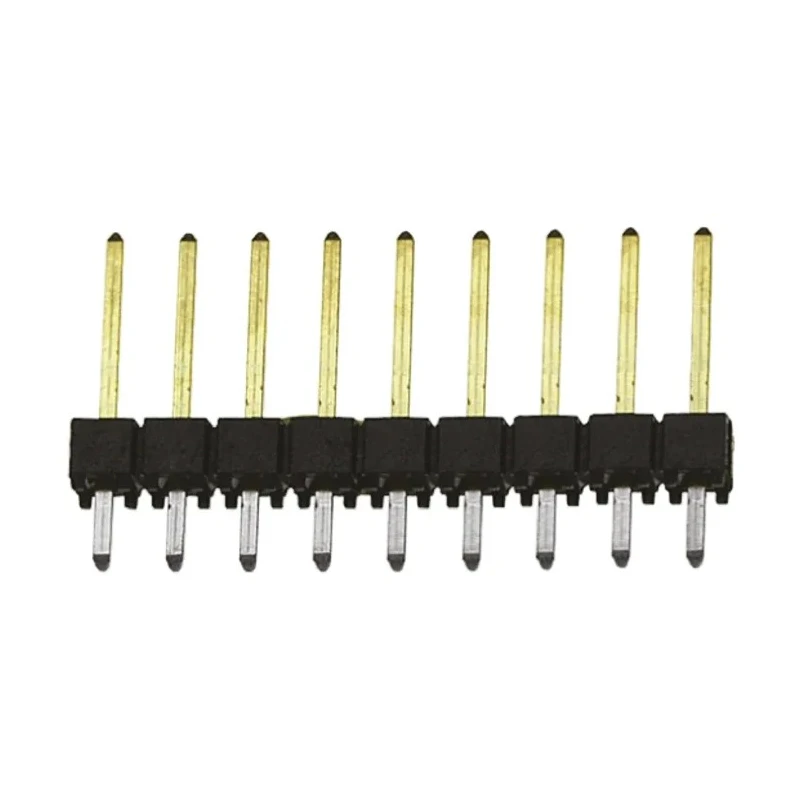

Samtec TSW Series Straight Through Hole Pin Header 9 Contacts 2.54 mm Pitch 1 Row Unshrouded TSW-109-14-L-S

The Samtec TSW-109-14-L-S is a high-quality single row, unshrouded through hole pin header designed for electronic and industrial PCB applications. It features 9 male contacts arranged with a precise 2.54 mm pitch. The header housing is made from robust glass filled polyester, providing excellent insulation and mechanical integrity.

Contacts are manufactured from phosphor bronze and plated with gold to ensure superior conductivity and resistance to corrosion. This pin header supports a maximum current rating of 7.6A and can handle voltages up to 550V, making it suitable for demanding electronic circuits.

The operating temperature range of -55°C to 125°C allows use in varied environmental conditions commonly encountered in industrial, commercial, and laboratory settings. The termination type is solder, with tail pin length measuring 2.79 mm and mating pin length of 8.13 mm, providing robust mechanical and electrical connection.

Designed for both board-to-board and wire-to-board connectivity, this straight orientation pin header is optimal for interconnecting printed circuit boards in control systems, communication devices, and instrumentation equipment.

It complies with no specific standards or approvals but boasts a dependable construction ideal for prototyping, manufacturing, and repair processes involving PCB connectors. Constructed with glass filled polyester housing for durability.

Employs phosphor bronze contacts with gold plating for conductivity and corrosion resistance. Rated for 7.6A current and 550V voltage capacity. Operates reliably between -55°C and 125°C temperature range. Tail pin length is 2.79 mm; mating pin length is 8.13 mm.

Designed for board-to-board and wire-to-board connector systems. Features straight orientation with solder termination type. Ideal for electronic component assembly and PCB interconnections.

This product is an essential component in electronics manufacturing and prototyping, providing reliable connectivity solutions across a wide range of applications including industrial controls, telecommunications, computing, and instrumentation.
