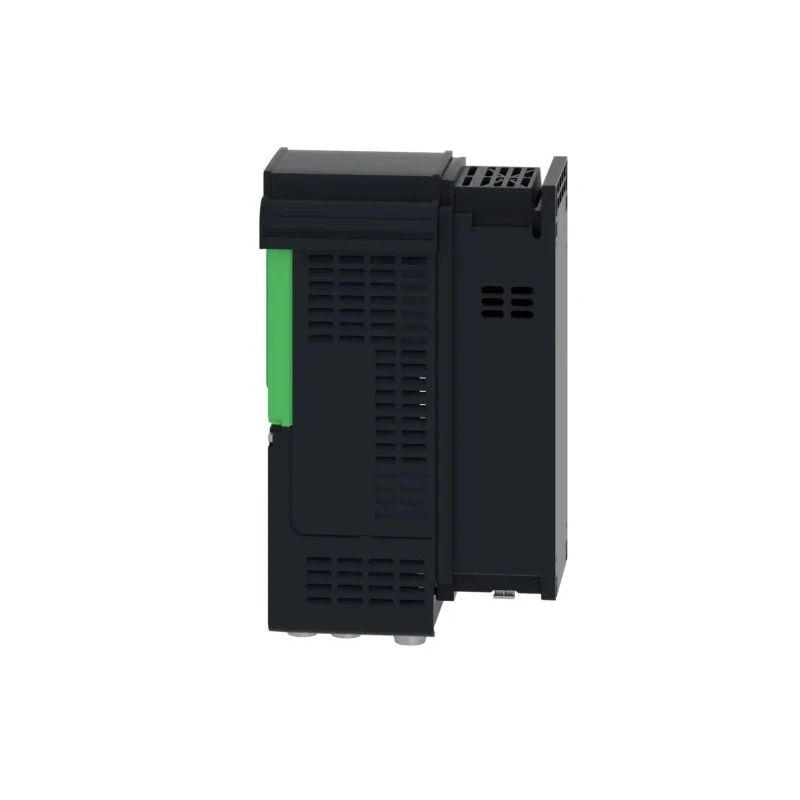

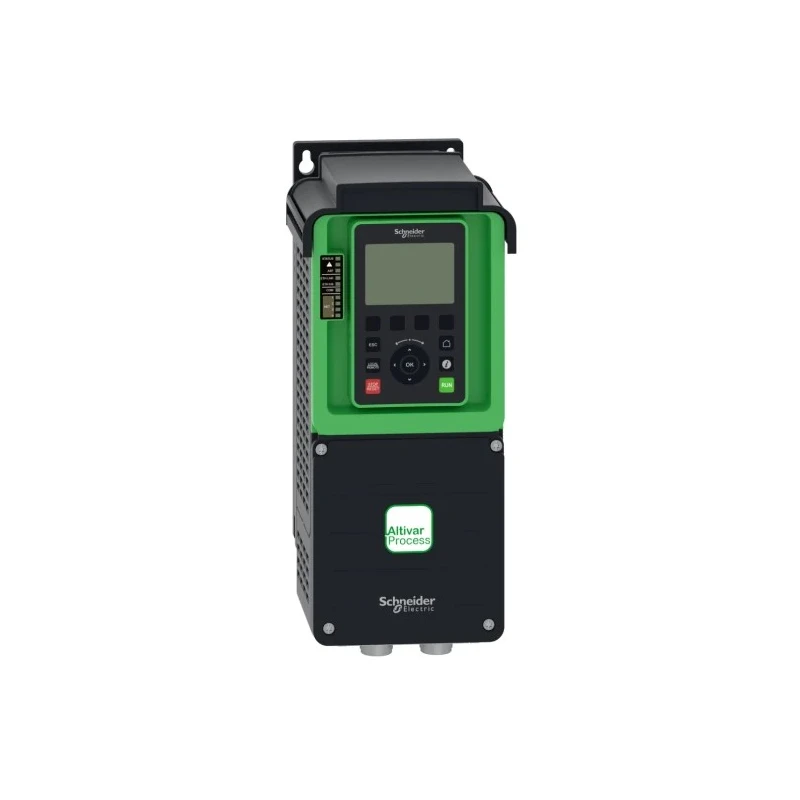

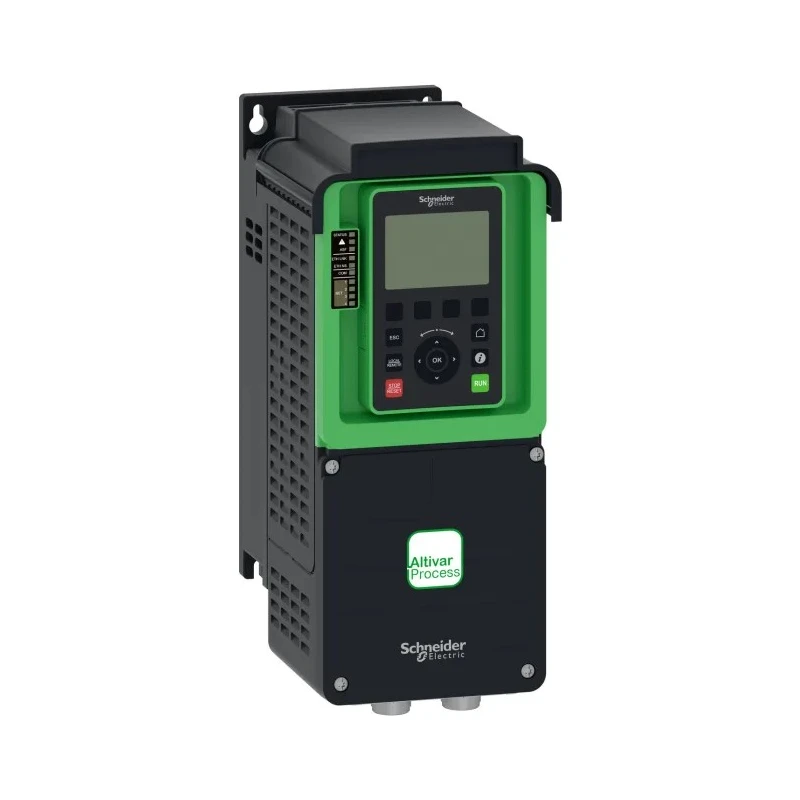

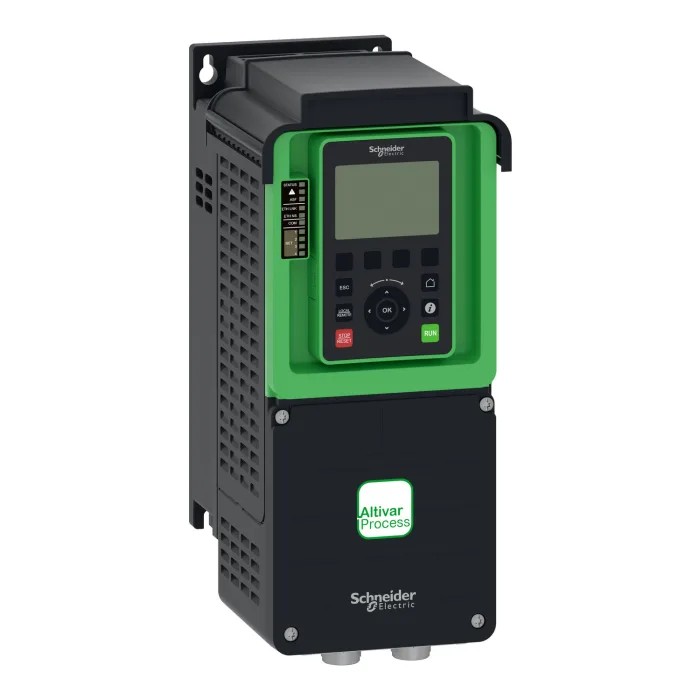

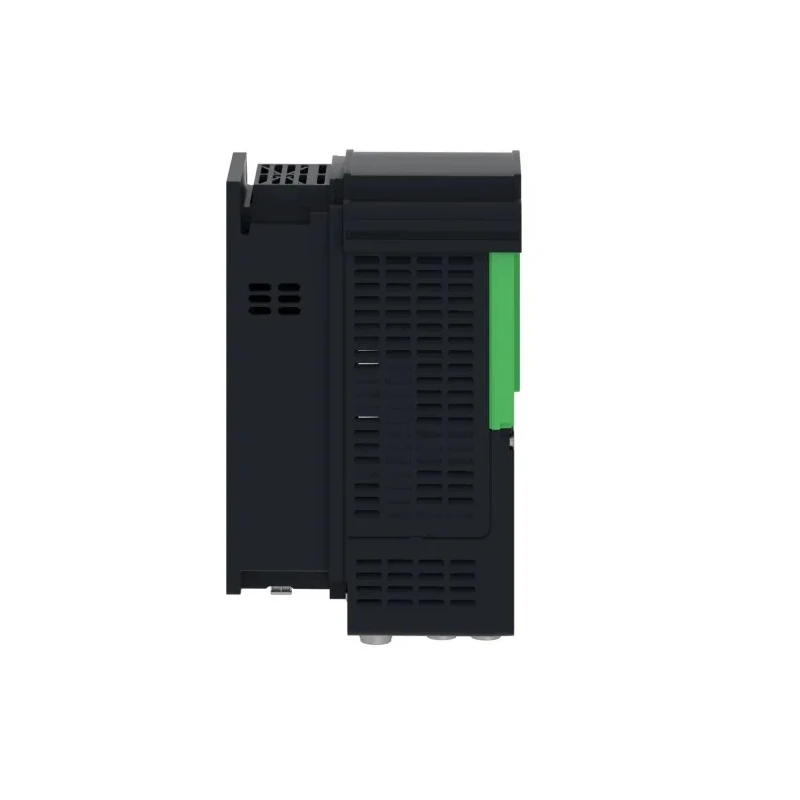

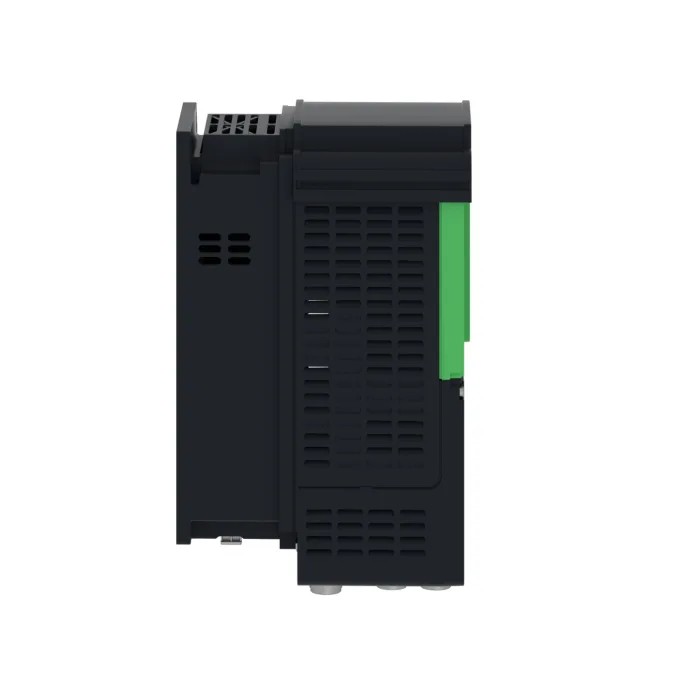

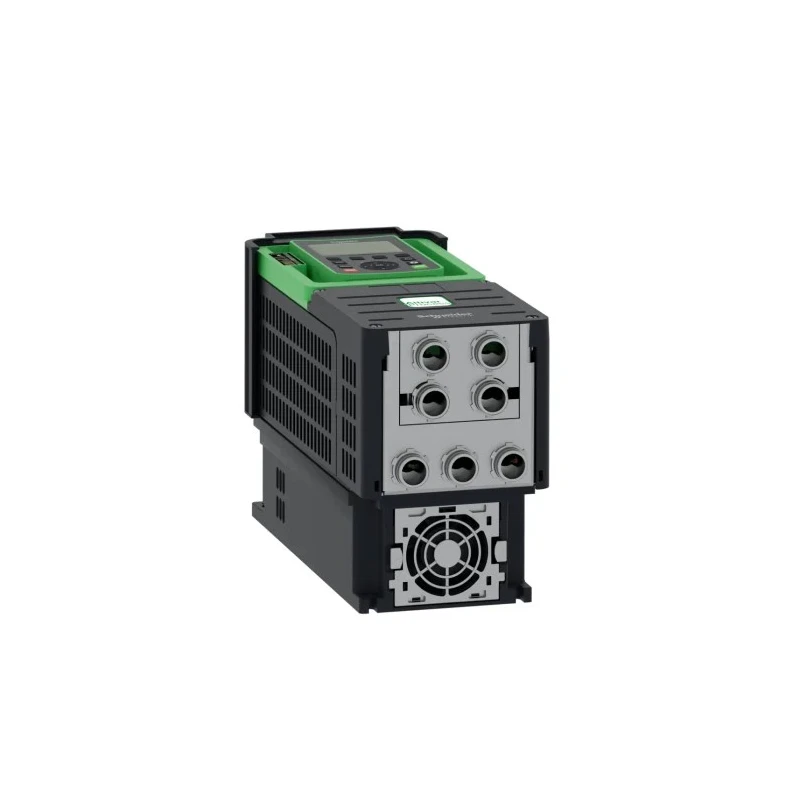

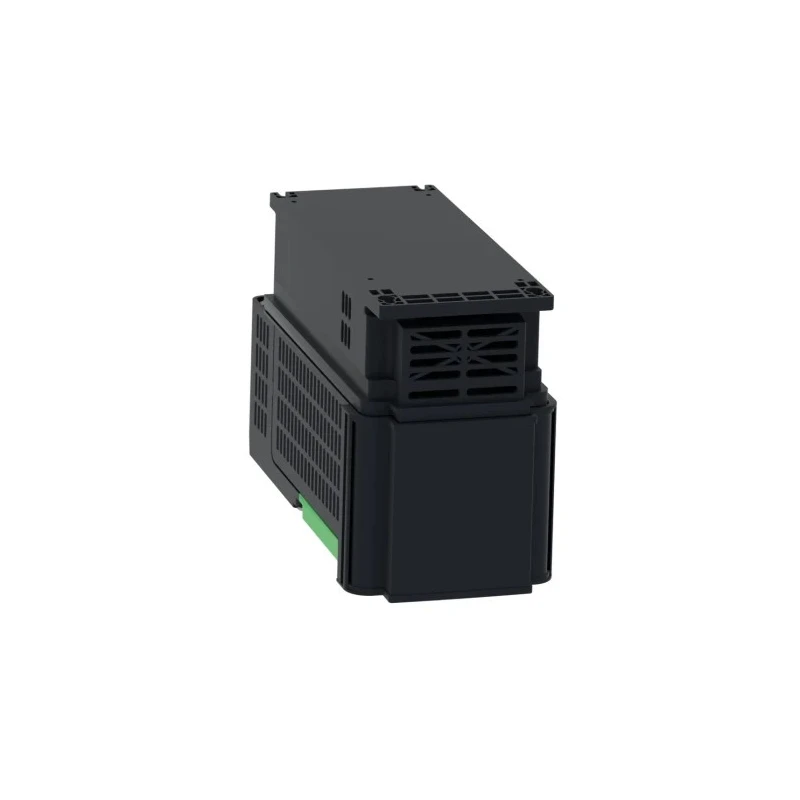

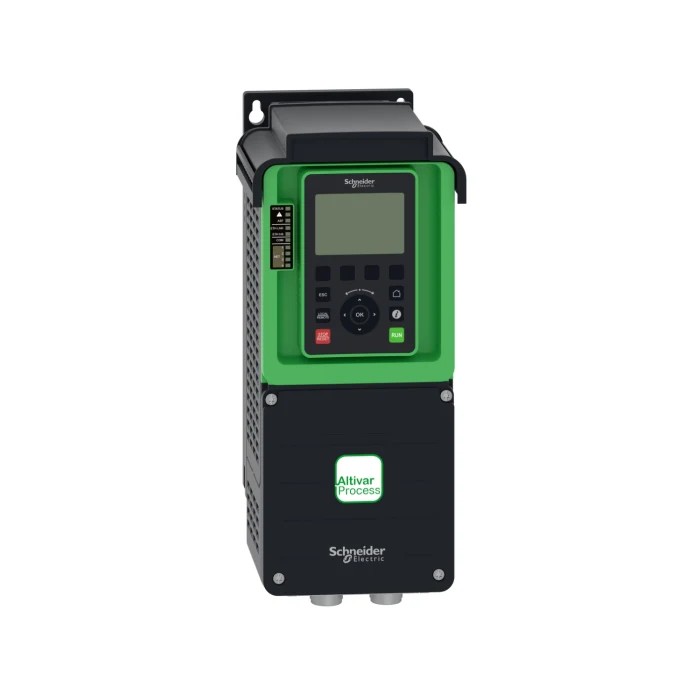

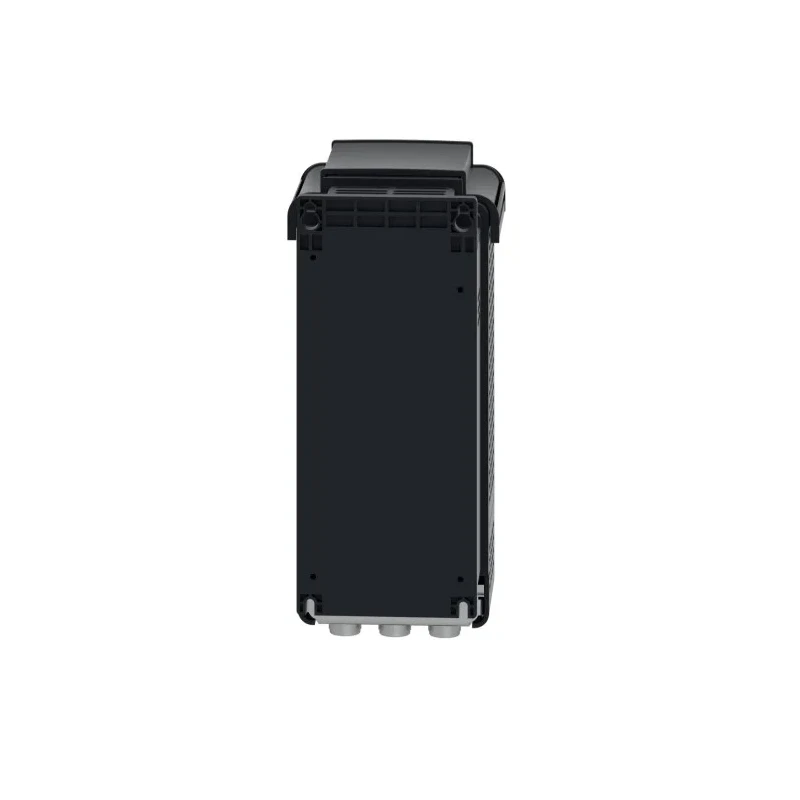

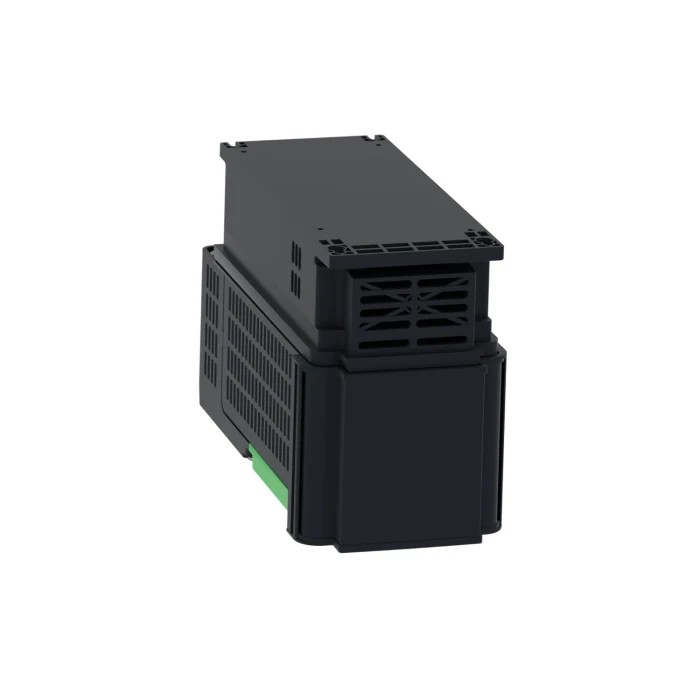

Schneider Electric Variable Speed Drive 3 Phase 2.2 kW 480V 5.6A Wall Mount IP21 Altivar Series ATV630U22N4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630U22N4 |
| IP Rating | IP21 |
| Drive Type | Variable Frequency |
| Mount Type | Wall |
| Overall Length | 350mm |
| Series | Altivar |
| Overall Width | 144mm |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 500Hz |
| Minimum Operating Temperature | -15°C |
| Interfaces | Ethernet network, giving you process monitoring with your daily work tools |
| Number of Phases | 3 |
| Maximum Output Current | 5.6A |
| Overall Depth | 203mm |
| Minimum Supply Voltage | 480V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor, Synchronous |
Key Features
- Supports synchronous and asynchronous motors for versatile application.
- Wall mount design with IP21 rating for finger safety and protection against objects over 12mm.
- Integrated STO function allows safe motor stop during emergencies.
- Equipped with an easy-to-read LCD screen and 11 LED indicators for real-time monitoring.
- Delivers up to 30% energy savings on standby with innovative 'Stop and Go' feature.
- Maximum output current of 5.6A supports medium-duty industrial uses.
- Operates in a temperature range from -15°C to 50°C for various environments.
- Output frequency range from 0.1 to 500Hz ensures precise motor speed control.
Product Description
Schneider Electric ATV630U22N4 Variable Speed Drive is a robust 2.2 kW 3 phase drive designed to regulate power supply frequency for both synchronous and asynchronous motors. Featuring a wall-mountable design with IP21 ingress protection, it ensures finger safety by resisting objects larger than 12mm, making it suitable for medium-duty industrial applications.
This unit is equipped with an integrated EMC filter and an STO (Safe Torque Off) function that immediately stops the motor during emergency situations, enhancing operational safety. Its 'Stop and Go' function enables up to 30% energy savings when the motor is on standby, promoting sustainability and efficiency.
The drive boasts an easy-to-read LCD screen accompanied by 11 LED indicators that display voltage, communication status, and diagnostics clearly, helping operators monitor performance parameters effectively. It supports output frequencies between 0.1 Hz and 500 Hz, allowing precise speed control aligned with process requirements.
Designed for harsh environments, the drive operates reliably within a -15°C to 50°C temperature range and supports a maximum output current of 5.6 A at a standard supply voltage of 480 V, making it suitable for a variety of industrial sectors including transportation, oil and gas, and assembly lines.
Supports both synchronous and asynchronous motors, increasing versatility across applications. Wall mount configuration enhances easy installation and maintenance. IP21 rating ensures protection against finger contact and larger foreign objects.
Integrated STO provides enhanced safety by stopping motors instantly in emergencies. Energy-efficient operation with standby power savings using 'Stop and Go' technology. Wide operational temperature range for diverse environmental conditions.
Complies with global standards such as ATEX, CE, CSA, UL, and IEC for assured quality and safety. Ethernet connectivity for integration with process control systems and improved data communication.
This Altivar Series variable frequency drive represents a high-quality, energy-saving motor control solution well-suited for industrial automation, water treatment, manufacturing, and commercial applications. Its reliable performance and comprehensive safety features make it a preferred choice among varied industrial environments.
Discover the reliability and efficiency of Schneider Electric products by exploring our wide range of industrial automation solutions available on EnvMart.
Explore more products in our Variable Frequency Drive (VFD) category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this variable frequency drive is 2.2 kW.
This model supports a maximum output current of 5.6 A.
It operates within a temperature range of -15°C to 50°C.
The output frequency range is from 0.1 Hz to 500 Hz, allowing for precise motor speed control.
It is compatible with both synchronous and asynchronous motors.
The IP rating of this model is IP21, providing protection against finger contact and larger foreign objects.
The overall dimensions are 350mm in length, 144mm in width, and 203mm in depth.
Yes, it includes an integrated Safe Torque Off (STO) function, which allows for safe motor stop during emergencies.
This drive is designed for wall mounting.
It supports Ethernet connectivity for process monitoring and integration with daily work tools.
It features a 'Stop and Go' function that enables up to 30% energy savings when the motor is on standby.
It complies with global standards such as ATEX, CE, CSA, UL, and IEC for quality and safety assurance.
