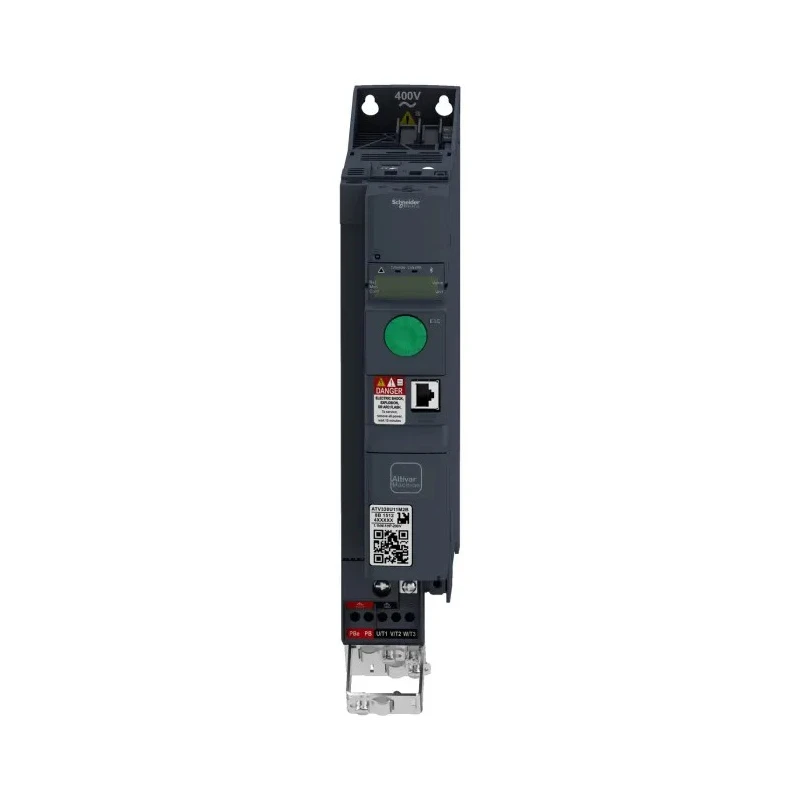

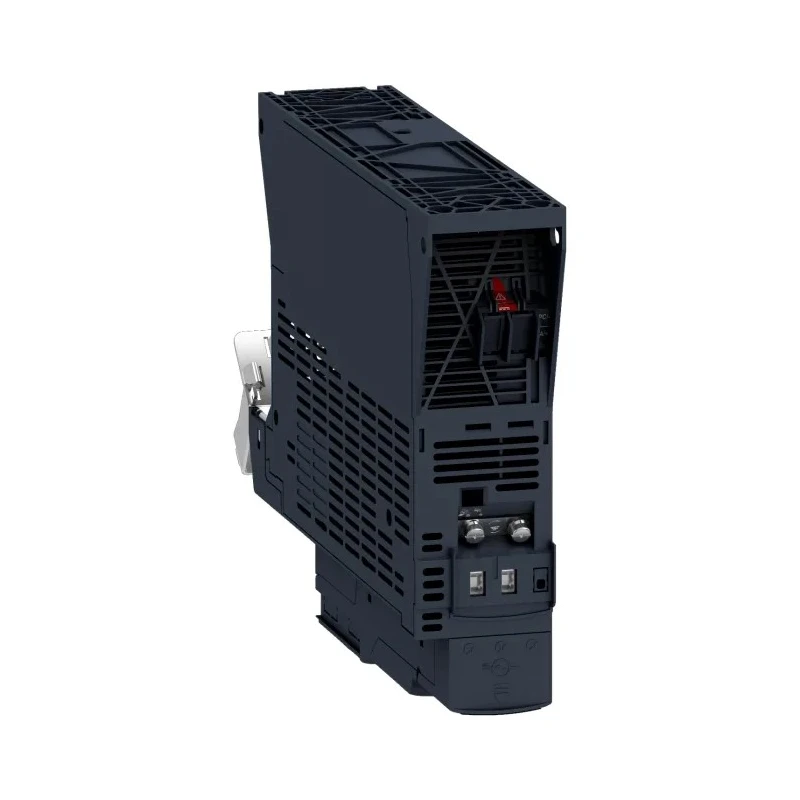

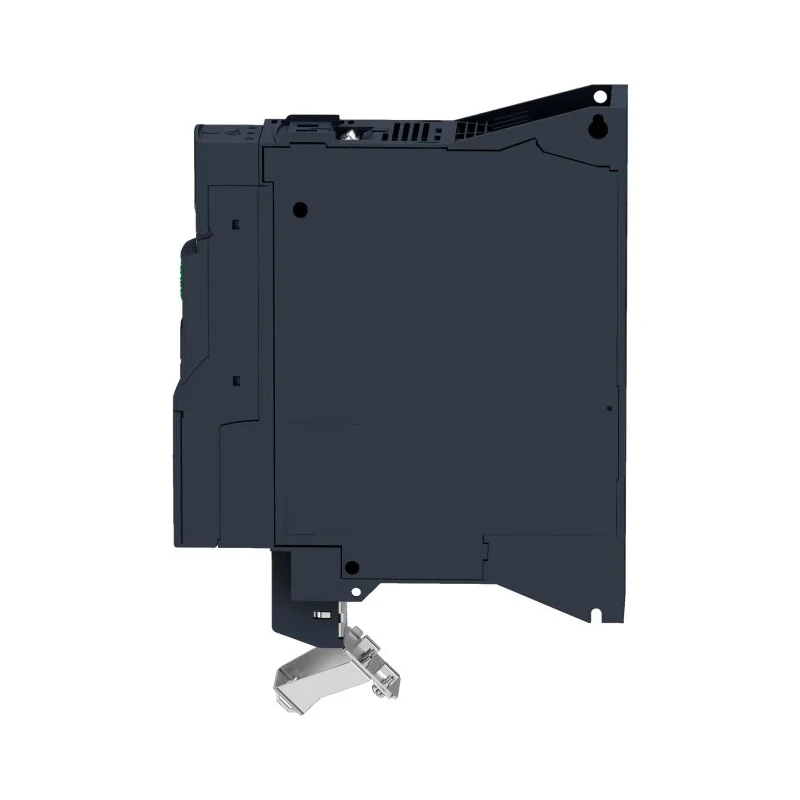

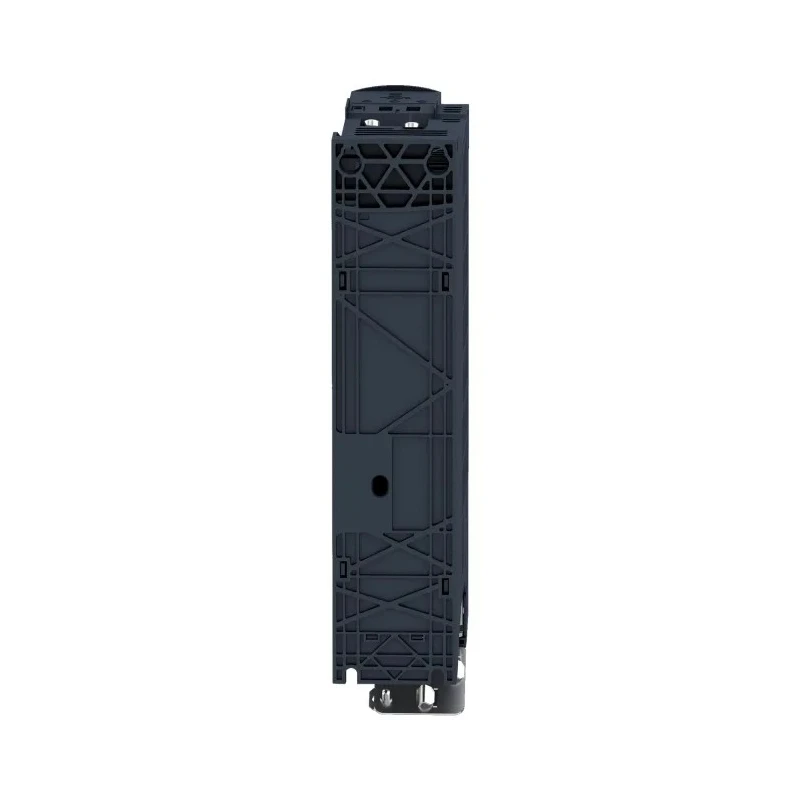

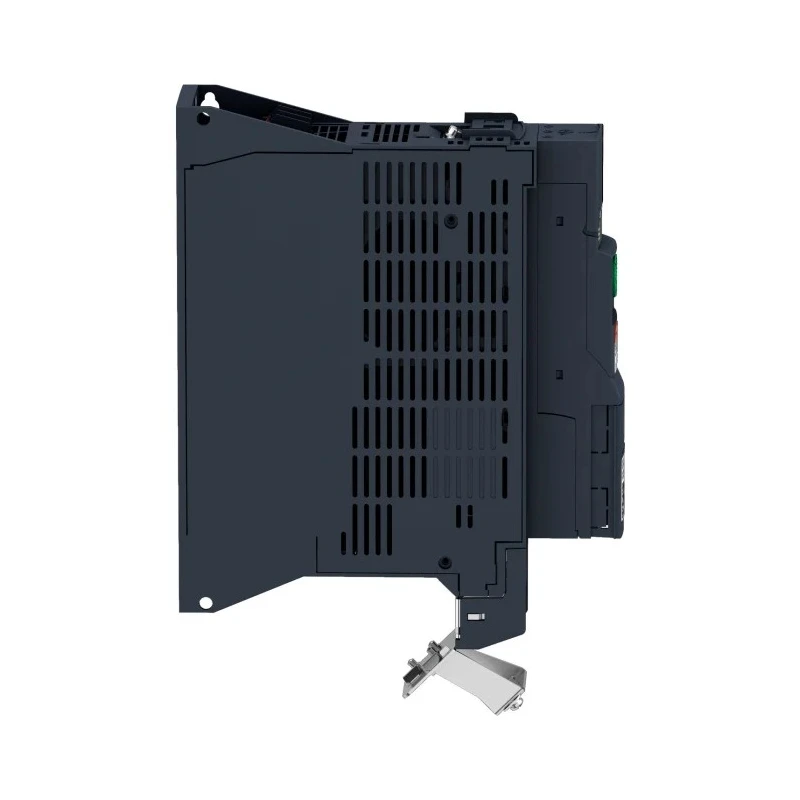

Schneider Electric Variable Speed Drive 3 kW 3 Phase 400V AC 7.1 A Altivar Series ATV320U30N4B

Schneider Electric ATV320U30N4B Variable Speed Drive is a high-performance 3 kW, 3-phase device designed to provide precise motor speed and torque control in industrial environments. Operating at 400V AC with a maximum current output of 7.1 A, this Altivar series drive supports both asynchronous and synchronous motors, making it versatile for a variety of applications.

The device offers an extensive output frequency range from 0.1 to 599 Hz, enabling fine adjustment to motor speed for optimized performance. It features a Safe Torque Off (STO) safety function to reduce the risk of mechanical damage during operation. Robust EMC filtering ensures minimal electrical noise and interference, enhancing system reliability.

This variable frequency drive supports multiple communication protocols including CANopen with data transfer rates between 50 Kbps and 1 Mbps, Modbus, Ethernet/IP, Profinet EtherCAT, Profibus, and DeviceNet, facilitating seamless integration into industrial control systems. The unit is designed for DIN rail mounting and has an IP20 rating, suitable for protected environments.

With operational temperature capabilities from -10°C to 50°C, the drive withstands varying industrial conditions. Safety and compliance are supported by certifications including CE, CSA, cUL, EAC, UL, and others, ensuring adherence to international standards.

Applications span packaging facilities, renewable energy systems, and water treatment plants, where precise motor control improves efficiency and equipment longevity. The compact design with overall dimensions of 245 mm width, 60 mm length, and 325 mm depth makes installation flexible and space-efficient.

Regulates motor output voltage and frequency to optimize torque and speed. Wide output frequency range from 0.1 Hz to 599 Hz for versatile operation. Includes Safe Torque Off (STO) function for enhanced mechanical safety.

Compatible with asynchronous and synchronous motors. Equipped with EMC filter to reduce electrical noise. Supports multiple communication protocols including CANopen and Modbus. DIN rail mount and IP20 protection rating.

Operating temperature range from -10°C to 50°C. Certified to international safety and EMC standards. Ideal for packaging, renewable energy, and water treatment industrial applications.

Explore the complete range of Schneider Electric variable speed drives at EnvMart to enhance your industrial automation processes with reliable and efficient motor control solutions.
