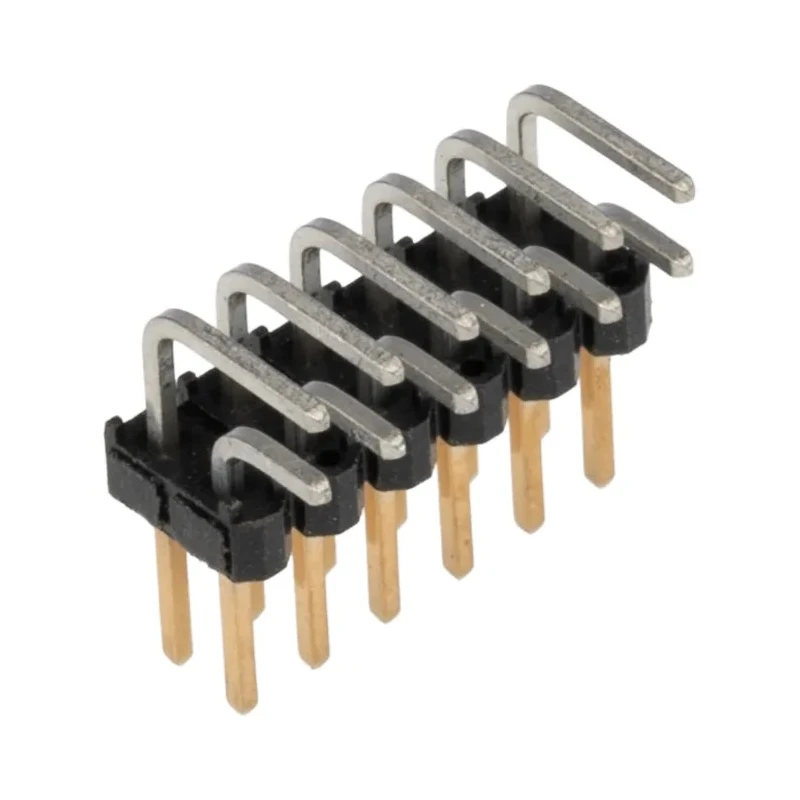

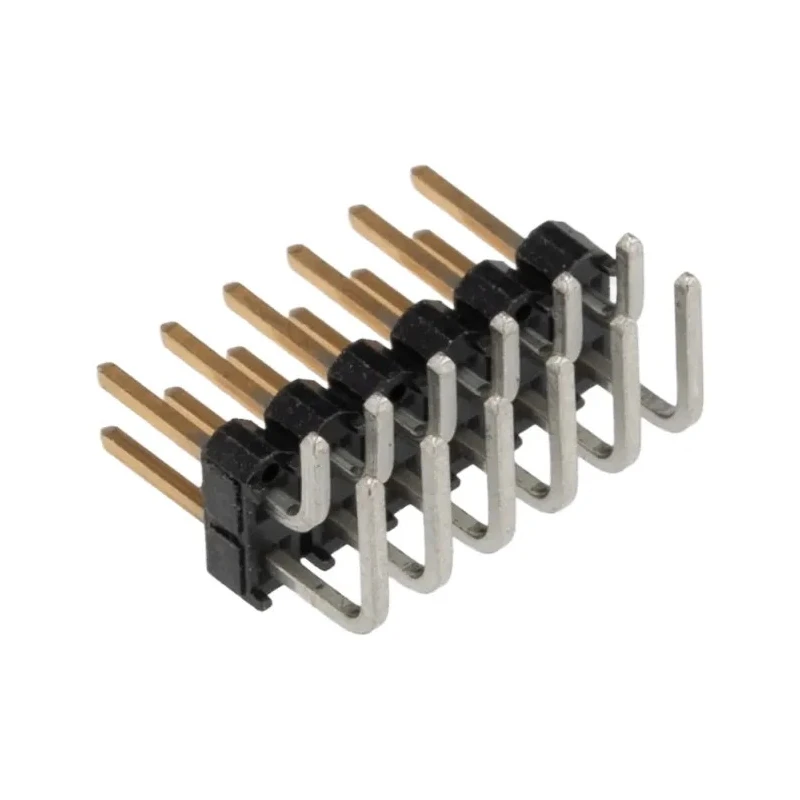

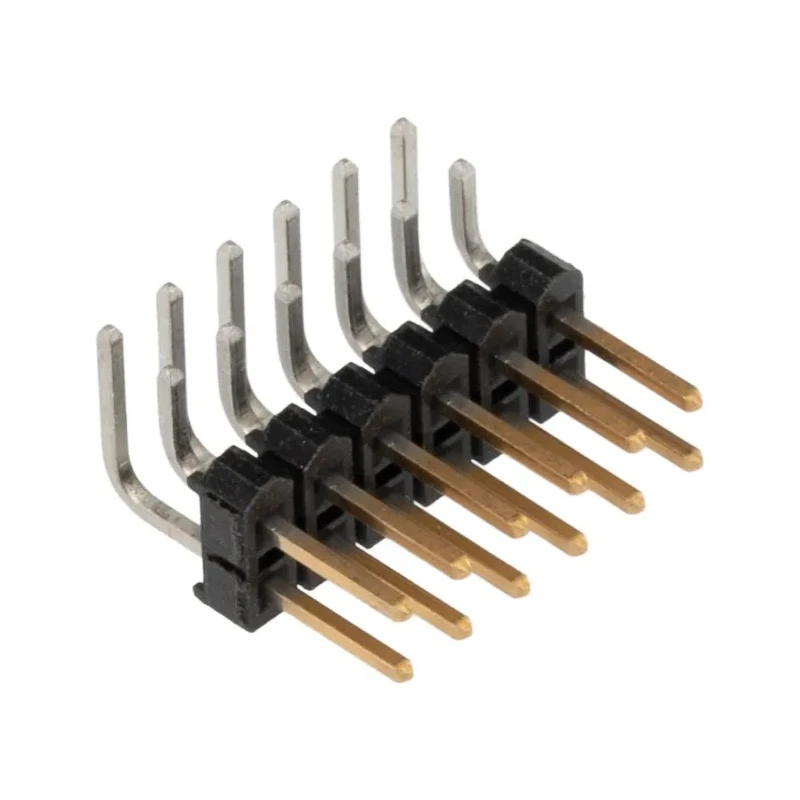

Samtec TSW Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54mm Pitch, 2 Row, Unshrouded TSW-106-08-L-D-RA

Samtec TSW-106-08-L-D-RA is a high-quality Right Angle Through Hole Pin Header from the TSW Series designed for electronic assemblies requiring reliable low-profile board connections.

This pin header features 12 male contacts arranged in 2 rows with a 2.54mm pitch, supporting applications that demand compact and efficient circuit interconnections.

The contacts are constructed from phosphor bronze with gold plating on the post pins for excellent electrical conductivity and corrosion resistance, while the tail pins have matte tin plating to facilitate effective soldering.

The housing is manufactured from glass filled polyester providing mechanical robustness and durability over a wide operating temperature range of -55°C to 125°C. Its right angle orientation allows for 90-degree connections useful in compact PCB designs.

Applicable in electronics assembly, machine building, instrumentation, and automotive repair industries, this header supports board-to-board and wire-to-board connector systems and is compatible with socket series such as CES, BCS, and SSM.

The device is rated for 465V AC voltage and can safely handle currents up to 4.7A. Its through-hole mount design is suitable for wave soldering processes, speeding up manufacturing workflows.

Features 12 male contacts arranged in 2 rows for versatile board connections. Right angle tail pins allow low-profile 90° board-to-board or wire-to-board connections. Gold plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.

Housing made of durable glass filled polyester ensures mechanical strength. Operates reliably between -55°C and 125°C across harsh environments. Designed for through-hole mounting and compatible with multiple socket series including CES, BCS, and SSM.

Suitable for wave soldering to enhance assembly efficiency. Voltage rating up to 465V AC and current rating of 4.7A. Explore our range of quality PCB Headers and connect with confidence using Samtec products for your industrial and commercial applications.
