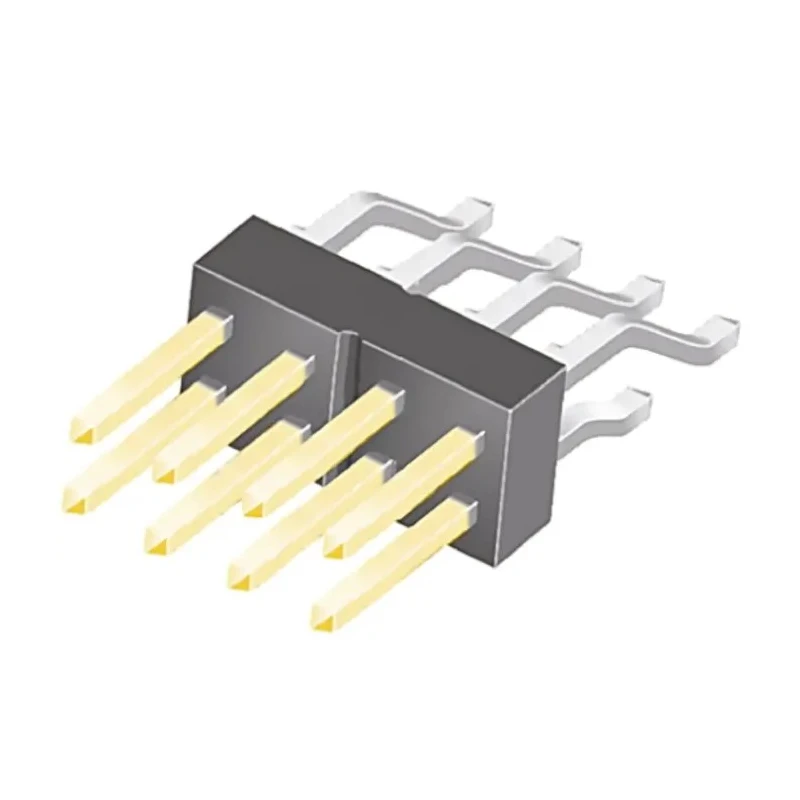

Samtec Right Angle Surface Pin Header 8 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-104-02-L-DH

Samtec TSM-104-02-L-DH is a right angle surface mount pin header designed for electronic applications requiring robust connectivity and precise spacing. This product features an 8-contact count arranged in 2 rows with a 2.54 mm pitch, making it ideal for board-to-board and wire-to-board connections.

The pin header utilizes a liquid crystal polymer housing that provides mechanical strength and thermal stability. Its phosphor bronze contacts are plated with 0.25μm gold on the post to ensure excellent electrical conductivity, backed by a matte tin tail to facilitate soldering.

Designed for high-reliability applications, this header supports a current rating of 7A, voltage up to 475V, and can operate across temperatures ranging from -55°C to 125°C. The right angle orientation and mating pin length of 8.13 mm allow for efficient PCB layout and mating compatibility.

This header is unshrouded, male contact gender, and solder termination type, making it suitable for a variety of industrial electronics, manufacturing, aerospace, automotive, and telecommunications use cases.

Liquid crystal polymer housing ensures durability and thermal tolerance. Gold-plated phosphor bronze contacts provide reliable electrical connections. Right angle orientation optimizes PCB space usage. Wide operating temperature range suits harsh environments.

Surface mount design compatible with modern SMT PCB assemblies. Supports board-to-board and wire-to-board connections. Unshrouded design simplifies mating with appropriate sockets.

Samtec’s TSM series pin headers are widely used in industrial electronics manufacturing lines, facilitating secure and precise connections in compact spaces. EnvMart offers this high-quality header for use in construction of custom PCBs, electronics prototyping, and repair applications.
