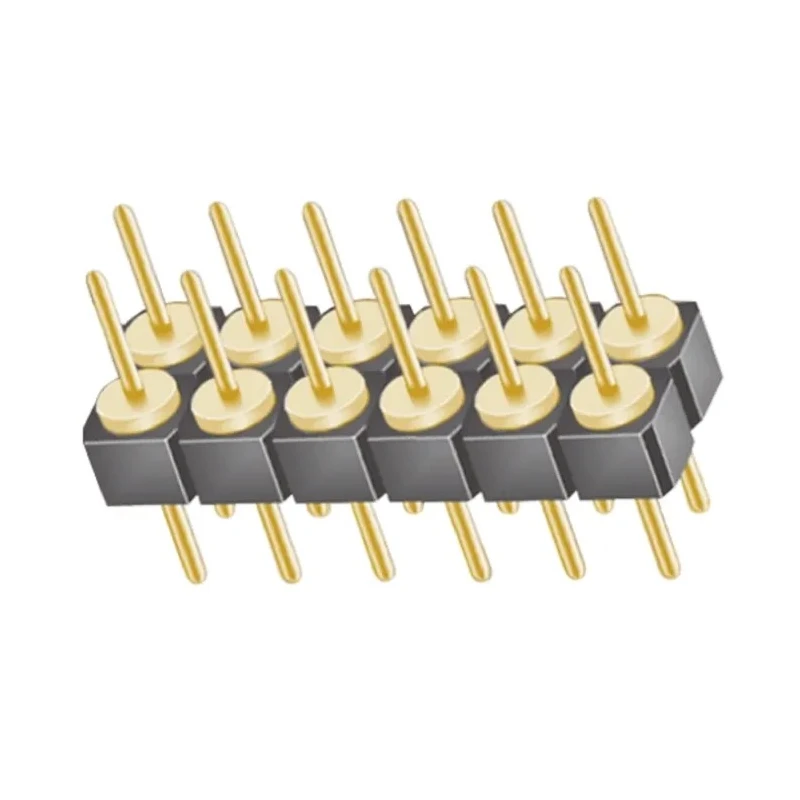

Samtec TD Series Straight Through Hole Pin Header 12 Contacts 2.54 mm Pitch 2 Row Unshrouded TD-106-G-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | TD-106-G-A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TD |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.96mm |
| Mating Pin Length | 4.22mm |
Key Features
- Constructed using glass filled polyester housing for durability.
- Phosphor bronze contacts plated with 0.51μm gold for excellent conductivity.
- Precision screw machined terminals with 3.96 mm tail pin length.
- Operating temperature range from -55°C to 125°C for broad application environments.
- Through hole mount type suitable for PCB insertion and solder termination.
- Unshrouded straight orientation perfect for double row board-to-board connectors.
- Rated for current up to 1 ampere ensuring consistent electrical performance.
- Compatible with SDL series low profile machined socket strips for mating connections.
Product Description
Samtec TD-106-G-A is a high-precision straight through hole pin header designed for board-to-board applications featuring 12 contacts arranged in 2 rows with a standard 2.54 mm pitch. The unshrouded header is constructed with a black glass filled polyester housing that provides robust mechanical support and stability.
The contacts are manufactured from phosphor bronze and plated with a fine 0.51 micrometer layer of gold to ensure excellent electrical conductivity and corrosion resistance. This pin header is precision screw machined delivering reliable solder terminations through a 3.96 mm tail pin length.
Designed to operate in a wide temperature range from -55°C to 125°C, it offers dependable performance in various industrial and electronic assembly environments. The current rating is 1 A, making it suitable for low voltage signal and power connections.
The product is used extensively in electronics manufacturing, industrial control systems, and instrumentation applications requiring durable and precise board-to-board interfacing. It mates seamlessly with Samtec SDL series low profile machined socket strips, enabling modular and serviceable connector systems.
Constructed using glass filled polyester housing for durability. Phosphor bronze contacts plated with 0.51μm gold for excellent conductivity. Precision screw machined terminals with 3.96 mm tail pin length. Operating temperature from -55°C to 125°C for broad application environments.
Through hole mount type suitable for PCB insertion and solder termination. Unshrouded straight orientation perfect for double row board-to-board connectors. Rated for current up to 1 ampere ensuring consistent electrical performance.
Compatible with SDL series low profile machined socket strips for mating connections. Available as a component to enhance PCB connector reliability in electronic and industrial designs. Browse the full range of Samtec connectors and PCB Headers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this pin header have a pitch of 2.54 mm.
The maximum operating temperature for this model is 125°C.
This pin header features 12 contacts arranged in 2 rows.
It uses a through hole mount type suitable for PCB insertion and solder termination.
The TD-106-G-A is rated for a current of up to 1 ampere.
The housing is made of glass filled polyester, and the contacts are made of phosphor bronze with a gold plating.
The tail pin length of the terminals is 3.96 mm.
Yes, it is compatible with SDL series low profile machined socket strips for mating connections.
The orientation of the TD-106-G-A is straight.
It is suitable for board-to-board applications in electronics manufacturing, industrial control systems, and instrumentation.
The minimum operating temperature for this pin header is -55°C.
This model uses solder termination for reliable connections.
