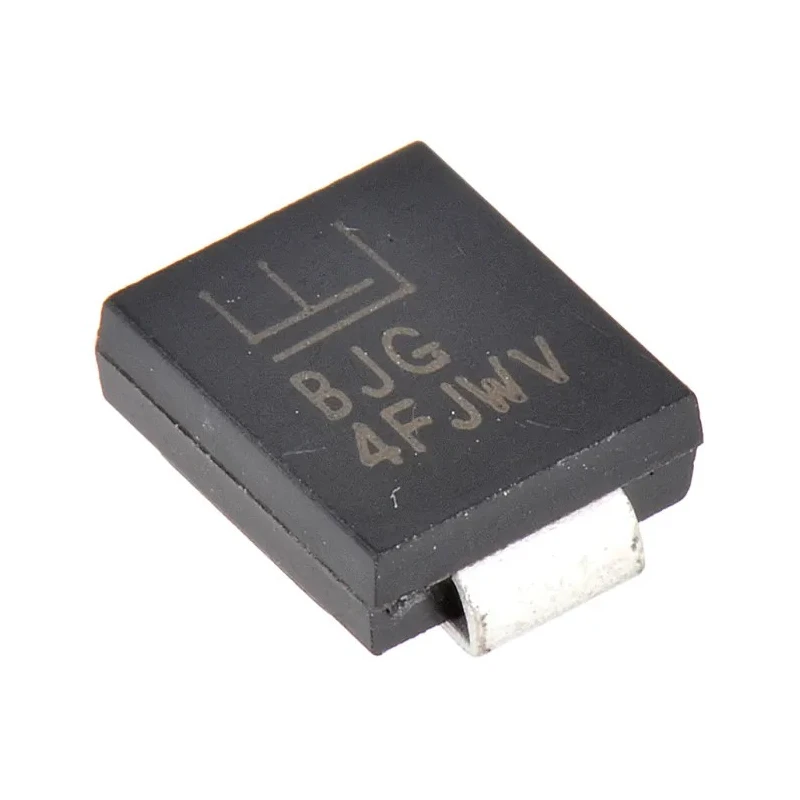

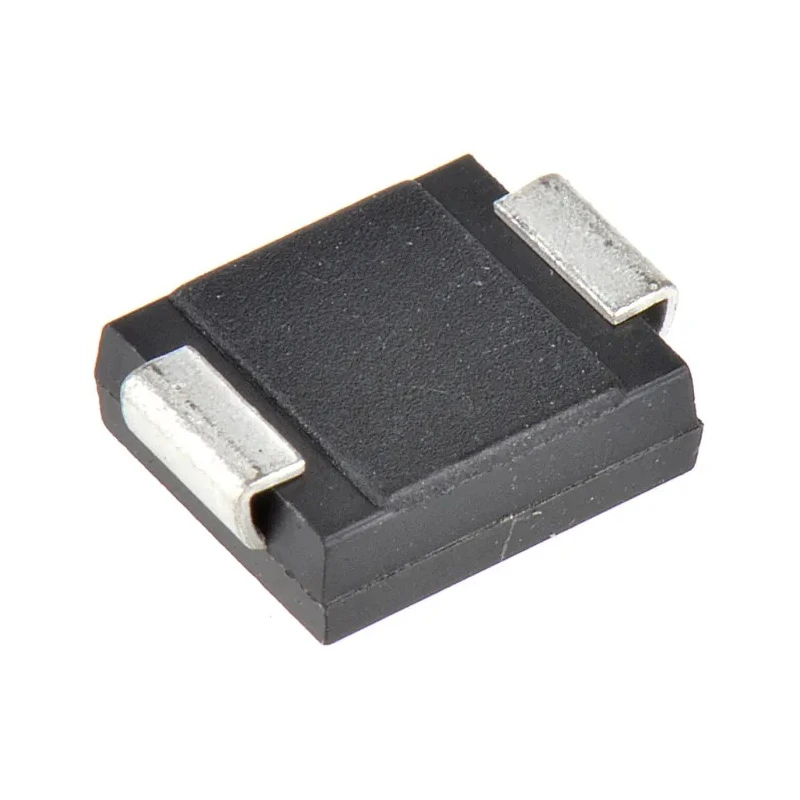

Littelfuse 1-Element Bi-Directional TVS Diode Surface Mount DO-214AB Package 1500 W Peak Pulse Power SMCJ350CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 2.417mm |
| Length | 7.11mm |
| Model | SMCJ350CA |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SMCJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 567V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 391V |
| Maximum Reverse Stand-off Voltage Vwm | 350V |
| Peak Pulse Power Dissipation Pppm | 1500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 2.6A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Offers bi-directional transient voltage suppression suitable for protection against voltage spikes.
- Surface mount device with DO-214AB (SMC) package type for PCB applications.
- Rated peak pulse power dissipation of 1500 watts to safeguard sensitive electronics.
- Minimum breakdown voltage of 391 V and maximum reverse stand-off voltage of 350 V for reliable operation.
- Clamping voltage of 567 V to limit voltage surges effectively.
- Operates within a temperature range from -65°C to 150°C.
- Maximum peak pulse current rating of 2.6 A to handle transient surges.
- Incorporates ESD protection enhancing device robustness.
Product Description
Littelfuse SMCJ350CA is a high-performance 1-Element Bi-Directional TVS Diode designed for transient voltage suppression in electrical and electronic circuits. This surface mount device (SMD) in DO-214AB (SMC) package provides robust protection at a peak pulse power dissipation of 1500 W, making it suitable for safeguarding sensitive components from voltage spikes and surges.
The diode features a minimum breakdown voltage of 391 V and a maximum reverse stand-off voltage of 350 V, enabling it to clamp voltage surges effectively at 567 V clamping voltage. This prevents damage due to transient overvoltages in various industrial, commercial, and consumer electronics applications.
Operating within a wide temperature range of -65°C to 150°C, the SMCJ350CA maintains performance consistency in harsh environmental conditions. With a maximum peak pulse current of 2.6 A and ESD protection, it further enhances device reliability and longevity.
Its compact size (7.11 mm length, 6.22 mm width, and 2.417 mm height) and surface mount design facilitate efficient PCB layout and assembly, optimizing space utilization in electronic devices.
This TVS diode is ideal for applications in power supplies, communication devices, automotive electronics (non-automotive standard), industrial equipment, and other systems where voltage transient suppression is critical to protecting circuitry.
Offers bi-directional transient voltage suppression for effective surge protection. High peak pulse power rating of 1500 W supports heavy transient energy absorption. Wide operating temperature range ensures reliable performance in extreme conditions.
Small form factor allows flexible PCB design with minimal footprint. Surface mount device eases manufacturing process with reduced handling time. ESD protection enhances product robustness and prevents electrostatic damage.
Single element configuration with 2 pins supports straightforward integration. Set contains: 1 piece Littelfuse SMCJ350CA TVS Diode. Explore more Littelfuse TVS Diodes and semiconductor components on EnvMart for reliable voltage protection solutions in your industrial and commercial electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse SMCJ350CA has a peak pulse power dissipation of 1500 watts, providing robust protection against voltage spikes.
The clamping voltage of the SMCJ350CA is 567 volts, which helps limit voltage surges effectively.
This diode has a minimum breakdown voltage of 391 volts, ensuring reliable operation during transient events.
The dimensions of this surface mount diode are 7.11 mm in length, 6.22 mm in width, and 2.417 mm in height.
It has a maximum peak pulse current rating of 2.6 A, enabling it to manage transient surges efficiently.
The SMCJ350CA operates within a temperature range of -65°C to 150°C, ensuring reliable performance in extreme conditions.
This model is designed as a surface mount device, making it suitable for PCB applications.
The SMCJ350CA features a single element configuration with 2 pins, facilitating straightforward integration into circuits.
It is suitable for applications in power supplies, communication devices, automotive electronics, and industrial equipment where voltage transient suppression is critical.
The Littelfuse SMCJ350CA is manufactured in India.
Yes, the SMCJ350CA incorporates ESD protection, enhancing the robustness of the device against electrostatic discharge.
